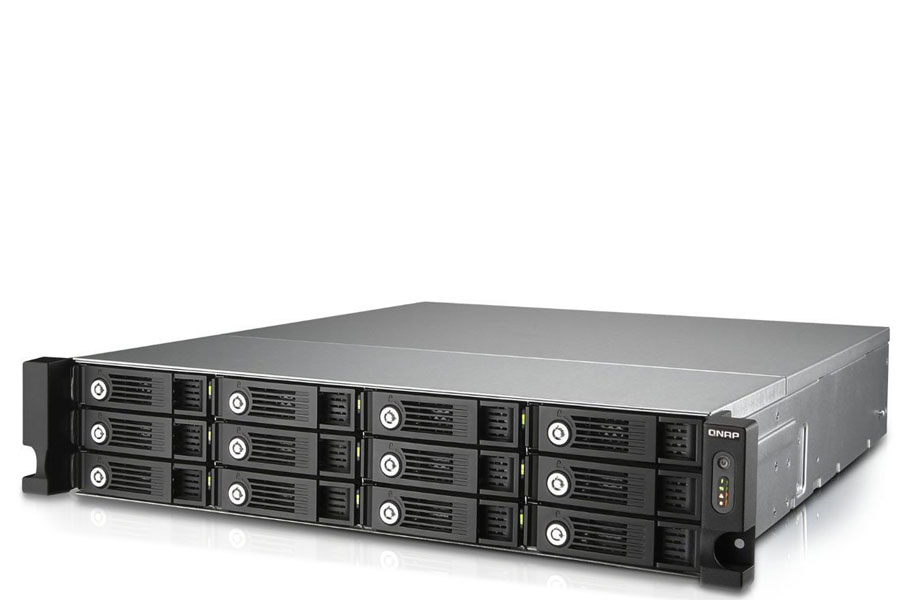

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Dual-core Intel® 2.4 GHz Processor
|
|---|---|
| Memory | System memory: 4 GB DDR3 RAM
Memory module pre-installed: 4 GB x1 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed. Flash Memory: 512MB DOM
|
| Chassis | 2U Rackmount
|
| Dimensions | 89mm(H) x482mm(W) x534mm(D) mm
3.50"(H) x 18.98"(W) x 21.02"(D) |
| Drive Bays | 12 x hot-swappable and lockable tray
3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD NOTE: The standard system is shipped without hard drives. |
| Expansion Slots | 2 Expansion slot (for network and storage expansion)
|
| Power Supply | Input: 100-240V AC, 47-63Hz
Output: 500W |
| Front Panel | LED Indicators:
Status, 10 GbE, LAN, eSATA, hard drives Buttons System: Power button and reset button |
| Input / Output | LAN Port: 2 x Gigabit RJ-45 Ethernet port
(Expandable up to 6 x 1 Gb LAN or 4 x 10 Gb + 2 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) USB:
2x USB 3.0 port (rear)
4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc. eSATA: 2 (rear) |
| Cooling | 2x quiet cooling fan (7 cm, 12V DC)
|
| Detailed Specification | Sound Level (dB)
Standby: 45.7 dB In operation: 46.7 dB (with 12 x Hitachi HUA723020ALA640 MK7O installed) Power Consumption (W) Sleep mode: 83.1 W In Operation: 188.7 W (with 12 x Hitachi HUA723020ALA640 hard drive installed) Temperature 0-40˚C Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C. Alarm Buzzer System warning |
