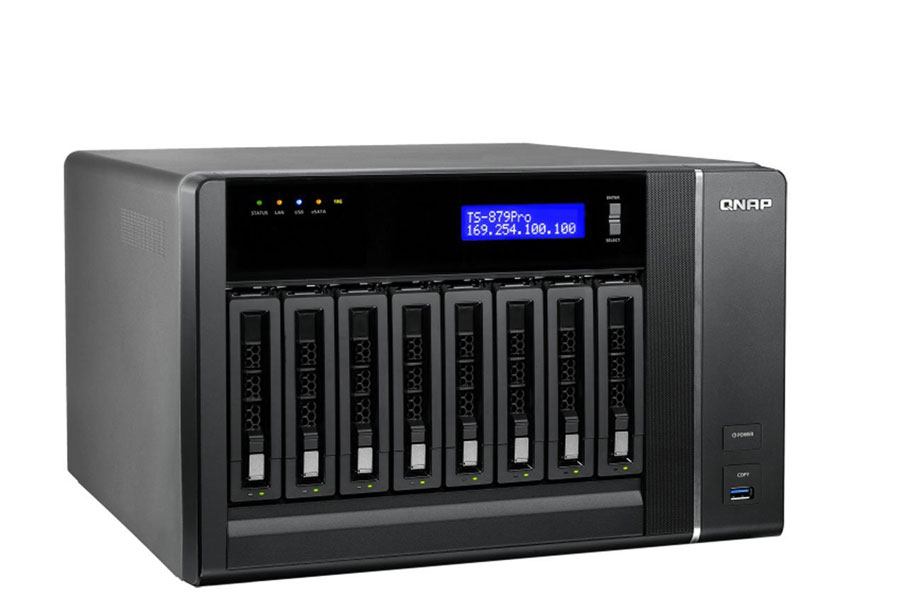

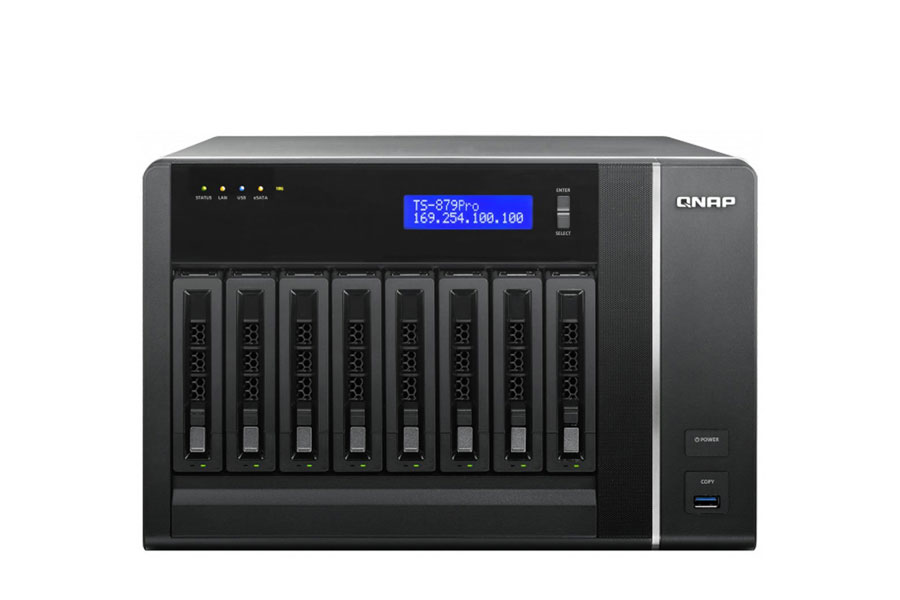

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Dual Core Intel® Core™ i3-2120 Processor 3.3 GHz
|
|---|---|
| Memory | DRAM:
2 GB DDR3 RAM
Flash Memory: 512MB DOM
|
| Chassis | Tower
|
| Dimensions | 217.5mm(H) x 327mm(W) x 321.2mm(D)
8.56"(H) x 12.8"(W) x 12.65"(D) |
| Drive Bays | 8 x hot-swappable and lockable tray
3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD NOTE: The standard system is shipped without hard drives. |
| Expansion Slots | 1x Expansion Slot (for network or storage expansion)
|
| Power Supply | Input: 100-240V AC, 50/60Hz
Output: 350W
|
| Front Panel | LED Indicators:
Status, LAN, USB, eSATA, 10 GbE, hard drives Buttons System: Power button, USB One Touch Backup Button, and reset button |
| Input / Output | LAN Port
2 x Gigabit RJ-45 Ethernet port (Optional dual-port 10 Gb and 1 Gb network card are supported) LED Indicators Status, LAN, USB, eSATA, 10 GbE, hard drives USB 2x USB 3.0 port (front: 1; rear: 1) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc.
eSATA
2 (rear) |
| Cooling | 2x quiet cooling fan (12 cm, 12V DC)
|
| Detailed Specification | Sound Level (dB)
Stand by: 25.87 dB In operation: 27.4 dB (with 8 x 1TB HDD installed) Power Consumption (W) Sleep mode: 39W In Operation: 101W (with 8 x 1TB HDD installed) Temperature 0~40˚C Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C. Secure Design K-lock security slot for theft prevention Alarm Buzzer System warning VGA Reserved for system maintenance |
