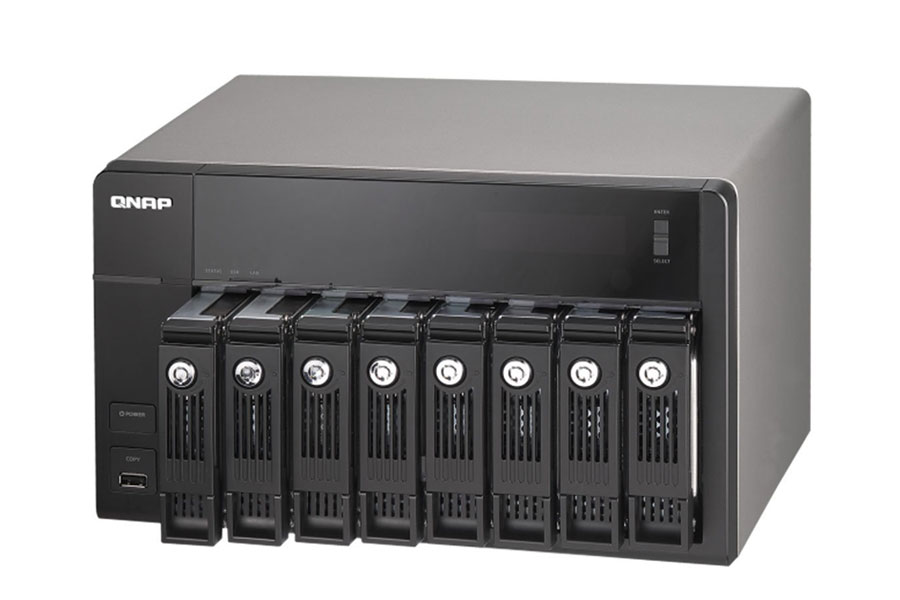

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® 2.6GHz Dual-core Processor
|
|---|---|
| Memory | DRAM: 2GB SO-DIMM RAM
Flash Memory: 512MB DOM |
| Chassis | Tower
|
| Dimensions | 185.2mm(H)x 298.2mm(W)x 235.4mm(D)
7.29"(H)x 11.74"(W)x 9.27"(D) inch |
| Drive Bays | 8x Hot-swappable tray with key lock
8 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD NOTE: The system is shipped without HDD. |
| Expansion Slots | 1x with dual-port GbE NIC pre-installed (for optional 10GbE network expansion)
|
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: 350W
|
| Front Panel | Buttons
Power, Reset, USB One Touch Backup LED Indicators Status, USB, LAN, HDD 1 - 8 |
| Input / Output | LAN Port
4 x Gigabit RJ-45 Ethernet port (2 ports are provided by the included PCI-E NIC); Optional dual-port 10 GbE NIC support by replacing the dual-port GbE PCI-E NIC USB 2 x USB 3.0 port (rear) 3 x USB 2.0 port (front: 1, rear:2) Support USB printer, pen drive, USB hub (front), and USB UPS etc. eSATA 2 x eSATA port (rear) Audio Out 1 (Supported application: Music Station, HD Station) Audio In 1 (reserved) |
| Cooling | 2x quiet cooling fan (12 cm, 12V DC)
|
| Detailed Specification | Alarm Buzzer
System warning Secure Design K-lock security slot for theft prevention Power Consumption (W) Sleep mode: 29.1W In Operation: 59.9W Power-off (in WOL mode): 1W (with 8 x 500GB HDD installed) Temperature 0-40˚C Humidity 5~95% RH non-condensing, wet bulb: 27˚C |
