Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® 2.6GHz Dual-core Processor
|
|---|---|
| Memory | DRAM:
2GB SO-DIMM RAM Flash Memory: 512MB DOM |
| Chassis | Tower
|
| Dimensions | 177mm(H)x 180mm(W)x 235mm(D)
6.97"(H)x 7.09"(W)x 9.25"(D) |

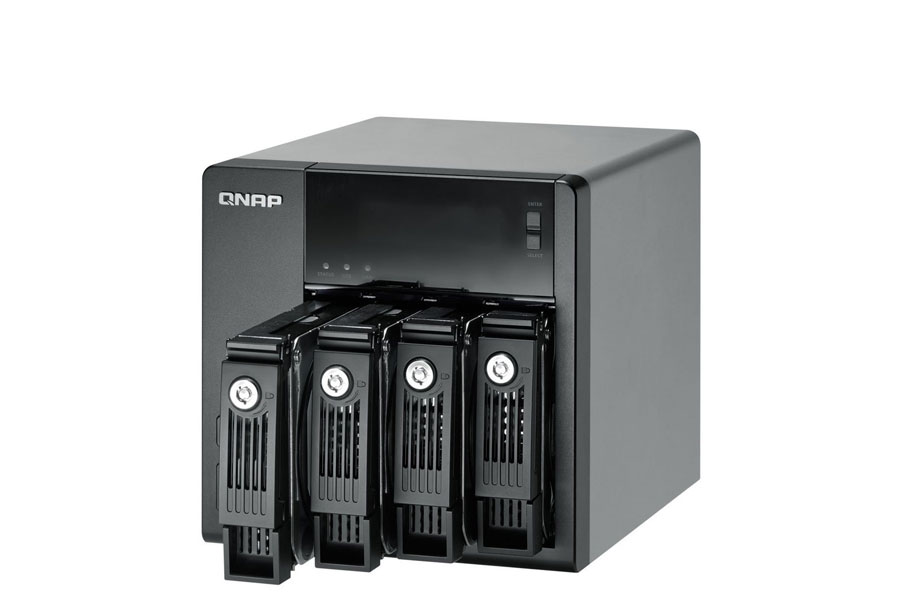

| Drive Bays | 4 x Hot-swappable tray with key lock
3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD |
| Expansion Slots | 1x PCI-E Slot with dual-port GbE NIC pre-installed (for optional 10GbE network expansion)
|
| Power Supply | Input: 100-240V AC, 50/60Hz
Output: 250W |
| Front Panel | Buttons:
Power, Reset, USB One Touch Backup LED Indicators: Status, USB, LAN, HDD 1 - 4 |

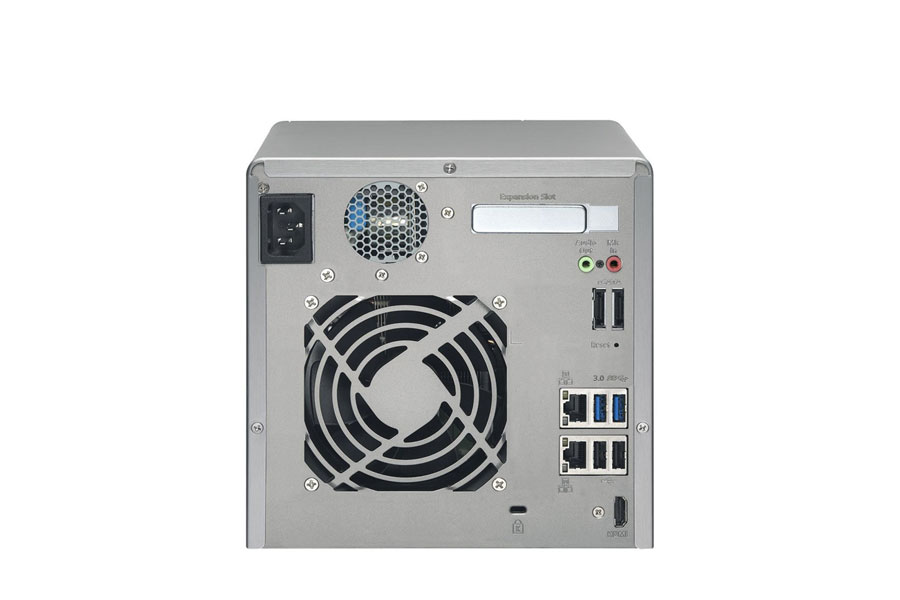

| Input / Output | LAN Port:
4 x Gigabit RJ-45 Ethernet port (2 ports are provided by the included PCI-E NIC); Optional dual-port 10 GbE NIC support by replacing the dual-port GbE PCI-E NIC USB: 2x USB 3.0 port (rear) 3x USB 2.0 port (front: 1, rear:2) Support USB printer, pen drive, USB hub (front), and USB UPS etc. eSATA: 2x eSATA port (rear) HDMI: HDMI x 1 IR: Built-in Infrared Receiver (IR) for MCE remote control Audio Out: 1 (Supported application: Music Station, HD Station) Audio In: 1 (reserved) |
| Cooling | 1x quiet cooling fan (9 cm, 12V DC)
|
| Detailed Specification | Alarm Buzzer:
System warning Secure Design: K-lock security slot for theft prevention Power Consumption (W) Sleep mode: 23.9W In Operation: 38.4W Power-off (in WOL mode): 1W (with 4 x 500GB HDD installed) Temperature: 0-40˚C Humidity: 5~95% RH non-condensing, wet bulb: 27˚C |
