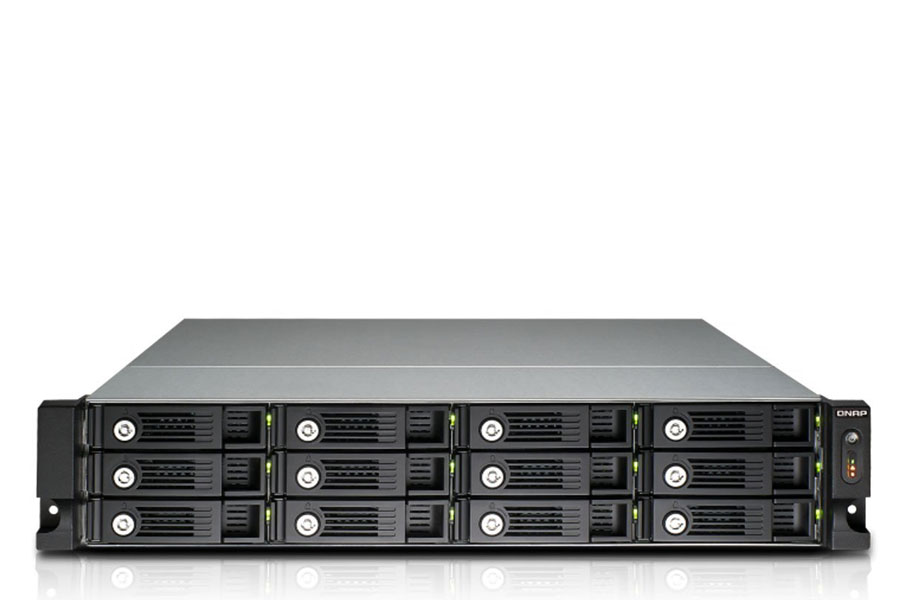

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® Atom™ 2.13GHz Dual-core Processor
|
|---|---|
| Memory | DRAM: 2GB RAM (Expandable RAM, up to 3GB)
NOTE: The system memory can be increased to maximum 3GB by installing an additional 1GB DDR3 SO-DIMM RAM module. Flash Memory: 512MB DOM |
| Chassis | 2U Rackmount
|
| Dimensions | 89mm(H)x 482mm(W)x 534mm(D)
3.5"(H)x 18.98"(W)x 21.02"(D) |
| Drive Bays | 12x Hot-swappable tray with key lock
3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD |
| Power Supply | Input:
100-240V AC, 50/60Hz Output: Redundant 380W |
| Front Panel | LED Indicators:
Status, LAN, USB, HDD 1 - 12 Buttons: Power, Reset |
| Input / Output | LAN Port:
2 x Gigabit RJ-45 Ethernet port USB: 2 x USB 3.0 port (rear) 4 x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc. eSATA: 2 x eSATA port (rear) VGA:
Reserved for maintenance HDMI: Reserved for maintenance |
| Cooling | 2x quiet cooling fan (7 cm, 12 VDC)
|
| Detailed Specification | Secure Design:
K-lock security slot for theft prevention Power Consumption (W): Sleep mode: 66.8W In Operation: 81.2W Power-off (in WOL mode): 1W (with 4 x 1TB HDD installed) Temperature: 0-35˚C Humidity: 5~95% RH non-condensing, wet bulb: 27˚C. R.H. |
