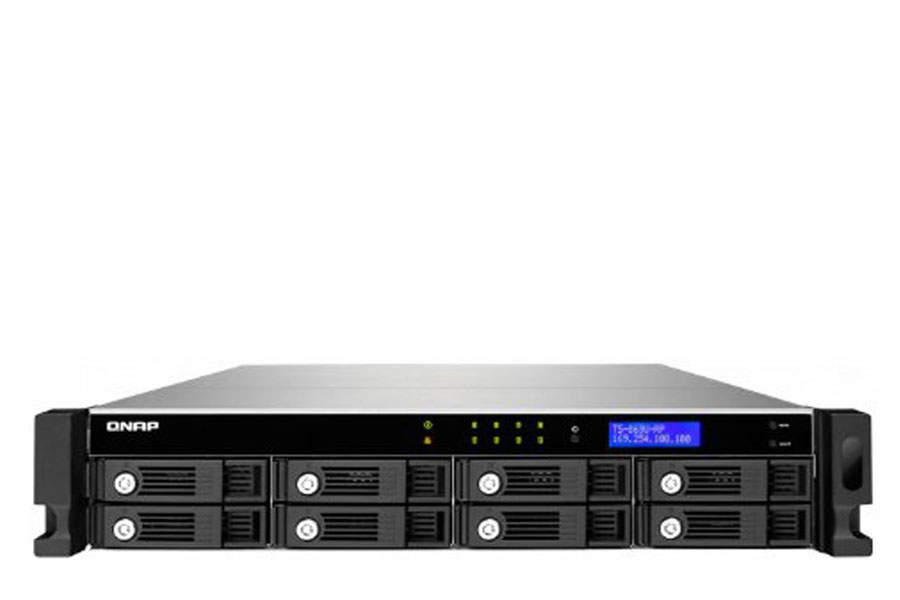

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® Atom™ 2.13GHz Dual-core Processor
|
|---|---|
| Memory | 2GB RAM (Expandable RAM, up to 3GB)
NOTE:
The system memory can be increased to maximum 3GB by installing an additional 1GB DDR3 SO-DIMM RAM module. Flash Memory:
512MB DOM
|
| Chassis | 2U Rackmount
|
| Dimensions | 89mm(H)x 482mm(W)x 534mm(D)
3.50"(H)x 18.98"(W)x 21.02"(D) |
| Drive Bays | 8x Hot-swappable and lockable tray
3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD |
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: Redundant 300W
|
| Front Panel | LED Indicators:
Status, LAN, HDD 1, HDD 2, HDD3, HDD4, HDD5, HDD6, HDD7, HDD8 Buttons: Power, Reset, Enter, Select |
| Input / Output | LAN Port:
2x Gigabit RJ-45 Ethernet ports USB:
2x USB 3.0 port (Back: 2) 4x USB 2.0 port (Back: 4) Support USB printer, pen drive, USB hub, and USB UPS etc. eSATA:
2x eSATA port (Back) VGA:
Reserved VGA interface for maintenance |
| Cooling | 2x quiet cooling fan (7 cm, 12V DC)
|
| Detailed Specification | Alarm Buzzer:
System warning Power Consumption (W): Sleep mode: 56.6W In Operation:74.7W Power-off (in WOL mode): 1W (with 8 x 1TB HDD installed) Temperature: 0-40˚C Humidity: 5~95% RH non-condensing, wet bulb: 27˚C. Secure Design: K-lock security slot for theft prevention |
