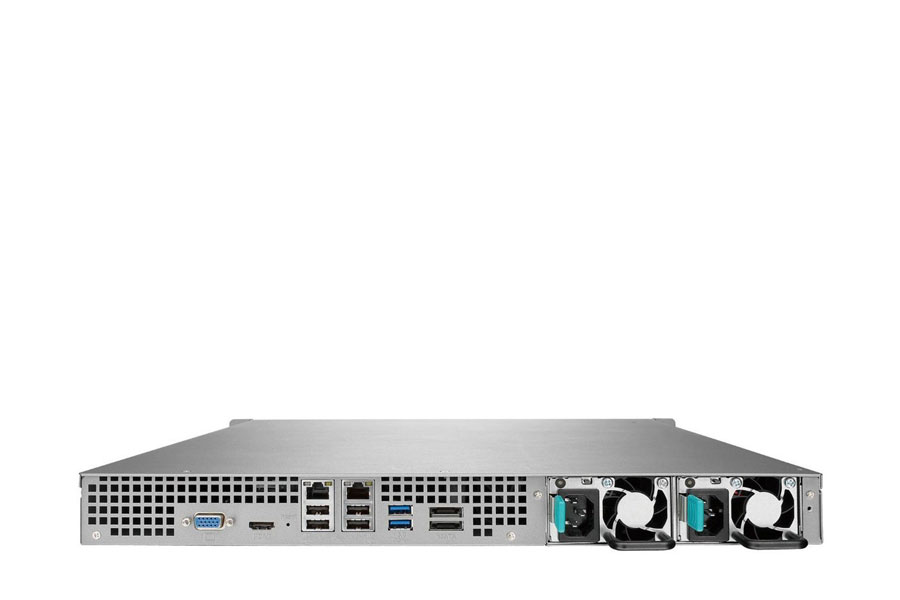

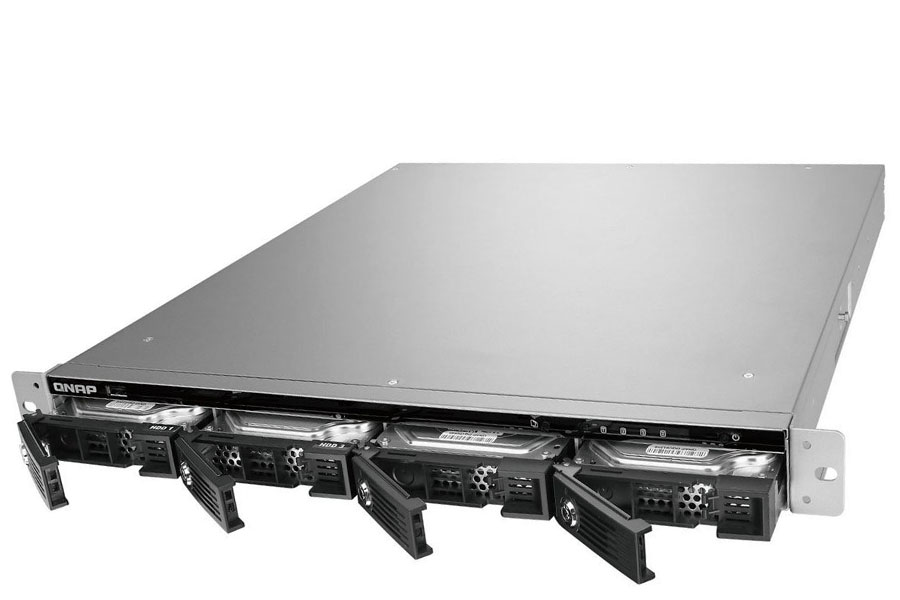

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® Atom™ 2.13GHz Dual-core Processor
|
|---|---|
| Memory | 1GB RAM (Expandable RAM, up to 3GB)
NOTE: The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module. Flash Memory: 512MB DOM |
| Chassis | 1U Rackmount
|
| Dimensions | 44mm(H)x 439mm(W)x 499mm(D)
1.73"(H)x 17.28"(W)x 19.65"(D) |
| Drive Bays | 4x Hot-swappable and lockable tray
3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD |
| Power Supply | Input: 100-240V AC, 50/60Hz
Output: Redundant 250W
|
| Front Panel | LED Indicators:
Status, LAN, USB, HDD 1, HDD 2, HDD3, HDD4 Buttons: System: Power button, USB One-Touch-Backup Button, Reset button |
| Input / Output | LAN Port:
2 x Gigabit RJ-45 Ethernet port USB: 2x USB 3.0 port (Back: 2) 5x USB 2.0 port (Front: 1; Back: 4) Support USB printer, pen drive, USB hub, and USB UPS etc. eSATA: 2x eSATA port (Back) VGA: Reserved VGA interface for maintenance |
| Cooling | 2x quiet cooling fan (4 cm, 12V DC)
|
| Detailed Specification | Power Consumption (W):
Sleep mode: 37W In Operation:52W Power-off (in WOL mode): 1W (with 4 x 1TB HDD installed) Temperature: 0-40˚C Humidity: 5~95% RH non-condensing, wet bulb: 27˚C. Secure Design: K-lock security slot for theft prevention Alarm Buzzer: System warning |
