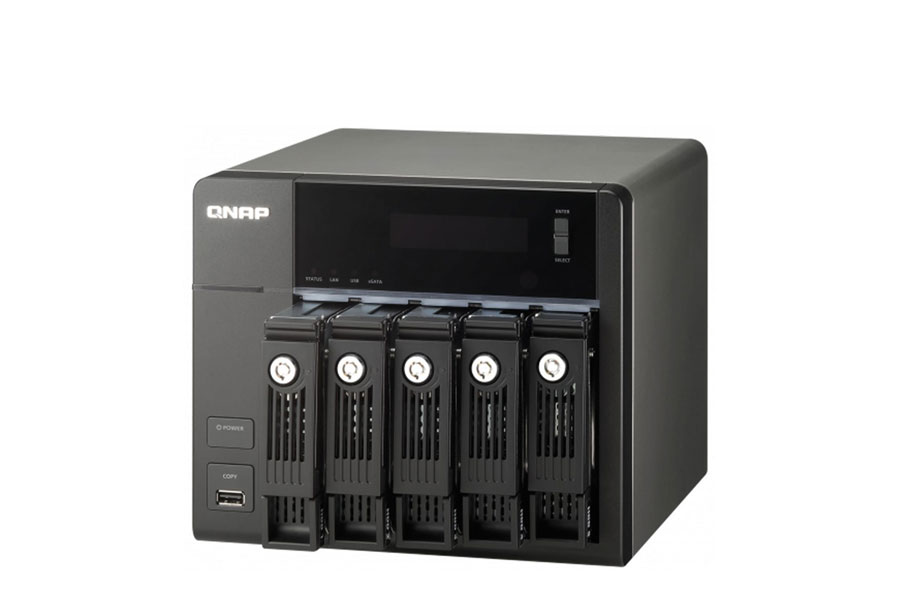

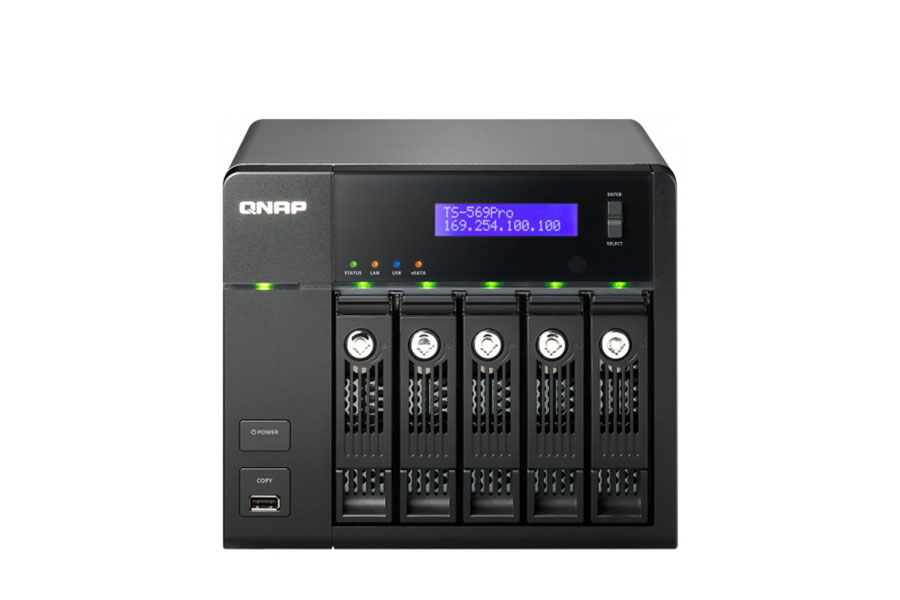

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® Atom™ 2.13GHz Dual-core Processor
|
|---|---|
| Memory | 1GB RAM (Expandable RAM, up to 3GB)
NOTE: The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module. Flash Memory: 512MB DOM |
| Chassis | Tower
|
| Dimensions | 185mm(H) x 210.6mm(W) x 235.4mm(D)
7.28"(H) x 8.29"(W) x 9.27"(D) |
| Drive Bays | 5x Hot-swappable and lockable tray
3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s hard drive or SSD |
| Power Supply | Input: 100-240V AC, 50/60Hz
Output: 250W
|
| Front Panel | LED Indicators:
Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5 Buttons: System: Power button, USB One-Touch-Backup Button, Reset button LCD panel: Mono-LCD display with backlight Enter button, Select button for configuration |
| Input / Output | Porta LAN:
2 x Gigabit RJ-45 Ethernet port USB: 2x USB 3.0 port (Back: 2) 5x USB 2.0 port (Front: 1; Back: 4) Support USB printer, pen drive, USB hub, and USB UPS etc. eSATA: 2 x eSATA port (Back) VGA:
Reserved VGA interface for maintenance |
| Cooling | 1x quiet cooling fan (12 cm, 12V DC)
|
| Detailed Specification | Sound Level (dB):
HDD sleep: 14.7 dB In operation: 21.43 dB (with 5 x 500GB HDDs installed) Power Consumption (W): Sleep mode: 29.1W In Operation: 48.5W Power-off (in WOL mode): 1W (with 500GB HDD installed) Temperature: 0-40˚C Humidity: 5~95% RH non-condensing, wet bulb: 27˚C. Secure Design: K-lock security slot for theft prevention |
