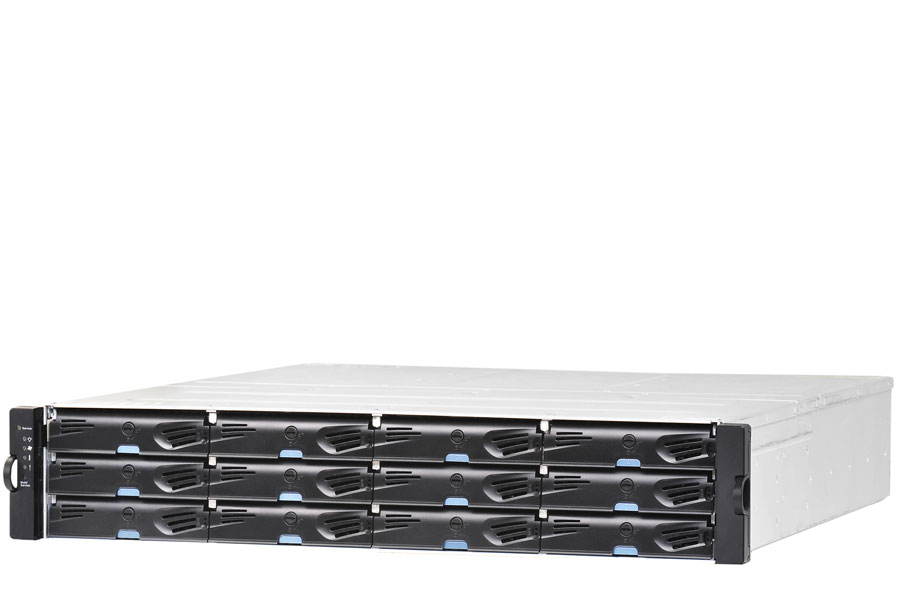

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel Xeon Quad-Core
|
|---|---|
| Memory | 8GB DDR3 ECC RAM (expandable, up to 32GB)
|
| Chassis | 2U chassis
|
| Dimensions | 88mm(H)x 500mm(D)x 446mm(W)
3.46"(H)x 19.68"(D)x 17.55(W)
|
| Drive Bays | 12x 3.5" Hot-Swap HDD Bays
Read/Write acceleration with four (4) SSDs
300GB, 450GB or 600GB - 3.5" 15,000 RPM 6Gb/s SAS drives 1TB, 2TB and 6TB - 3.5" 7,200 RPM 6Gb/s Nearline SAS drives 2TB, 3TB or 4TB - 3.5" 7,200 RPM 6Gb/s SATA drives 500GB, 1TB, 1.5TB or 2TB -3.5" 7,200 RPM 3Gb/s SATA drives Max. Drives:
Per system: 12 Via JBOD: 256 |
| Expansion Slots | 2x expansion port
|
| Power Supply | Power Management:
Wake on LAN Network UPS with SNMP management Schedule Power On/Off HDD Sleep-Mode Power: 80 PLUS certification power supplies: Dual redundant 530W AC voltage: 115VAC @ 10A / 230VAC @ 5A with PFC (auto-switching) Frequency: 47-63 Hz |
| Input / Output | Host Connectivity:
4 x 1GbE ports Optional host boards: 4 x 1GbE ports , 2 x10GbE SFP+, 2 x10GbE RJ-45, 16Gb FC Drive connectivity: 2 x 6Gb/s SAS wide port |
| Operating Environment | Temperature: 5 to 35°C operating
Relative humidity: 5 to 80% non-condensing, operating |
| Detailed Specification | Protocol Support
File Level Protocol: CIFS/ SMB AFP NFS FTP FTPS Secure FTP Block Level Protocol: iSCSI Fibre Channel (FC) Supported Operating Systems: Windows Server 2003
Windows Server 2008 R2 (including Hyper-V) Windows Server 2012 R2 Red Hat SUSE Sun Solaris VMware Citrix XenDesktop / XenServer Mac OS X Windows 8 RAID Level: 0, 1(0+1), 5, 6, 10, 50, 60 Data Protection: Snapshot Remote replication (rsync with encryption) Apple Time Machine ICAP-based virus scanning support OpenSolaris ZFS end-to-end data integrity NDMP WORM(Write Once, Read Many) System Management: Start-up wizard Web-based GUI Real-time system monitoring Dashboard monitoring Configurable alerts Network time protocol SNMP UPS management Disk Roaming HDD S.M.A.R.T. Capacity Management: Thin provisioning Data compression Quota management Auto capacity expansion Network Configuration: IPv4 and IPv6 via DHCP Fixed/dynamic IP address Port trunking/ Link Aggregation (IEEE 802.3ad) Fail-over Jumbo frame Security: HTTPS connection Encrypted remote replication (rsync over 128-bit SSH) CHAP authentication for iSCSI volumes AES256-bit Encryption Performance Scaling: Read/Write acceleration with four (4) SSDs
|
