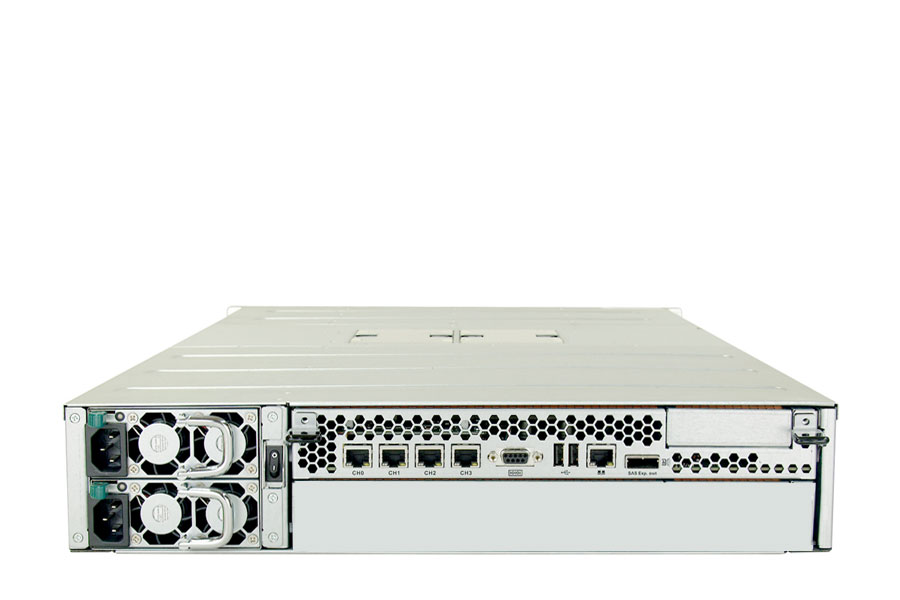

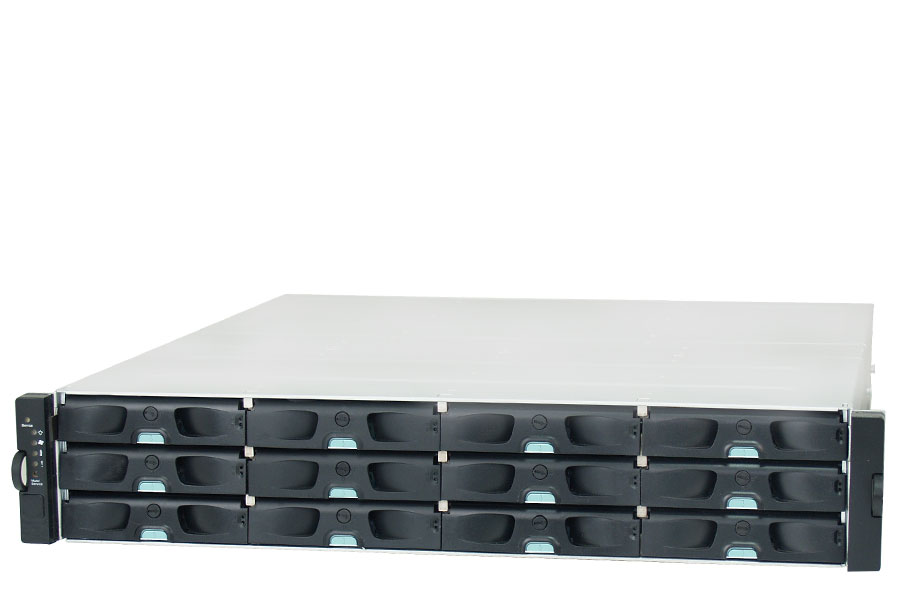

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | 1 x Intel Core i3™ Dual Core
|
|---|---|
| Memory | 8GB DDR3 ECC RAM
(expandable, up to 32GB) |
| Chassis | 2U Chassis
|
| Dimensions | 88mm(H)x 500mm(D)x 446mm(W)
3.46"(H)x 19.68"(D)x 17.55"(W) |
| Drive Bays | 12x Hot-Swap 2.5" or 3.5" HDD Bays
2.5" 6Gb/s SAS SSD - 200GB, 400GB or 800GB 2.5” 10,000 RPM 6Gb/s SAS drives - 300GB, 450GB, 600GB, 900GB or 1.2TB 3.5" 7,200 RPM 6Gb/s Nearline SAS drives - 1TB, 2TB, 3TB, 4TB and 6TB Expansion Enclosure: (JBOD) JB 2012 Max. Drives: Via JBOD: 120 |
| Power Supply | 80 PLUS certification power supplies: Dual redundant 530W
AC voltage: 115VAC @ 10A / 230VAC @ 5A with PFC (auto-switching) Frequency: 47-63 Hz Power Management: Wake on LAN Network UPS with SNMP management |
| Input / Output | Controller:
Redundant Host Connectivity: 8x 1GbE ports Optional host boards: 4 x 1GbE ports 2 x 10GbE(SFP+ or RJ45 ) ports 2 x 16Gb FC Drive connectivity: 4x 6Gb/s SAS wide ports |
| Operating Environment | Temperature:
5 to 35°C operating
Relative humidity: 5 to 80% non-condensing, operating
|
| Detailed Specification | Protocol Support
File Level Protocol: CIFS/ SMB AFP NFS FTP Block Level Protocol: iSCSI Fibre Channel (FC) Supported Operating Systems Windows Server 2003
Windows Server 2008 R2 (including Hyper-V) Windows Server 2012 R2 Red Hat SUSE Sun Solaris VMware Citrix XenDesktop / XenServer Mac OS X Windows 8 RAID Level 0, 1(0+1), 5, 6, 10, 50, 60 Access Right Management User account management Group management Folder management Folder and subfolder access control Folder quota Comprehensive access control action items All Controls, Read, Read and Run, Write, Modify, List Support Windows Active Directory Authentication Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer LDAP on Linux Data Protection Snapshot Remote replication (rsync with encryption) Apple Time Machine ICAP-based virus scanning support OpenSolaris ZFS end-to-end data integrity NDMP System Management Start-up wizard
Web-based GUI Real-time system monitoring Dashboard monitoring Configurable alerts Network time protocol SNMP UPS management Disk Roaming HDD S.M.A.R.T. Capacity Management Thin provisioning Data compression Quota management Auto capacity expansion Network Configuration IPv4 and IPv6 via DHCP Fixed/dynamic IP address Port trunking/ Link Aggregation (IEEE 802.3ad) Fail-over Jumbo frame Security HTTPS connection Encrypted remote replication (rsync over 128-bit SSH) CHAP authentication for iSCSI volumes Performance Scaling Read/Write acceleration with four (4) SSDs
|
