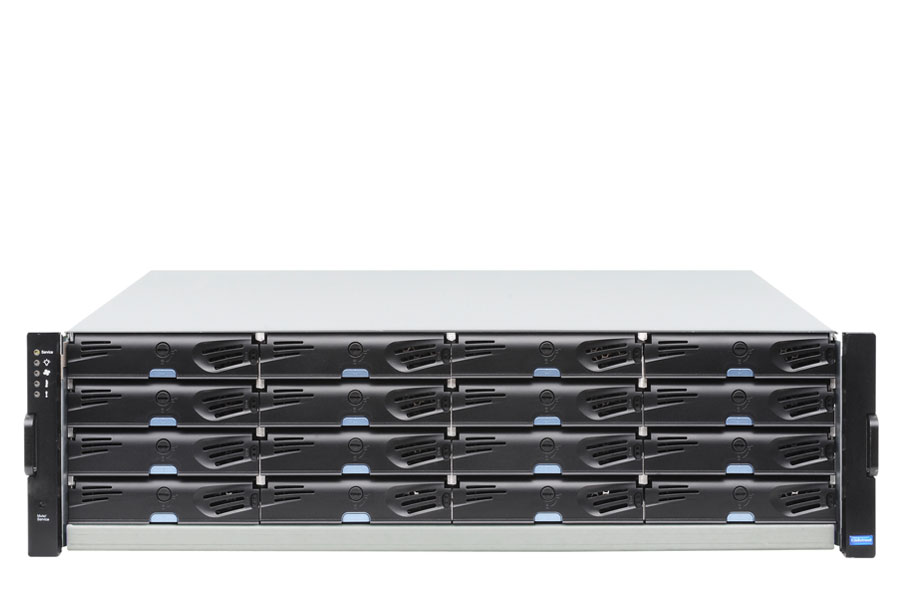

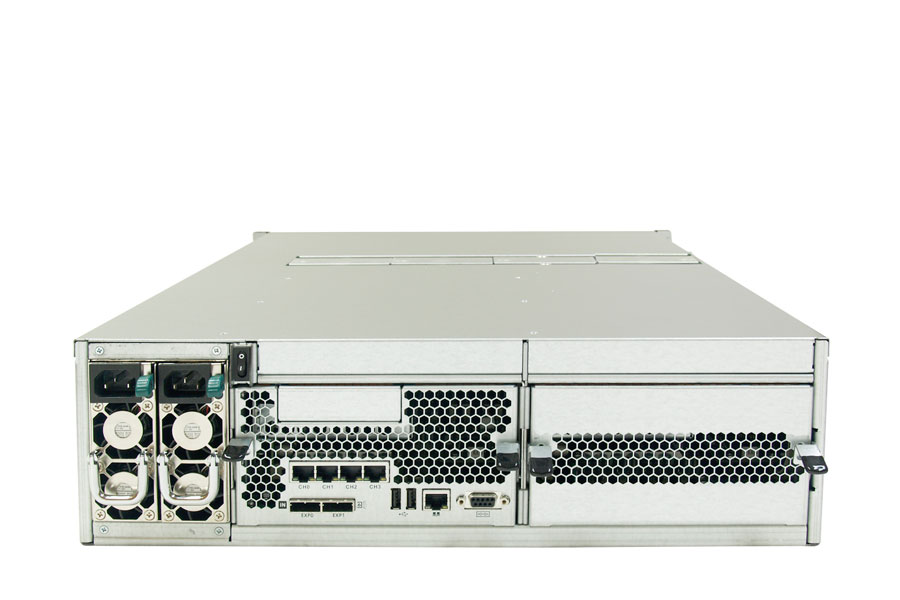

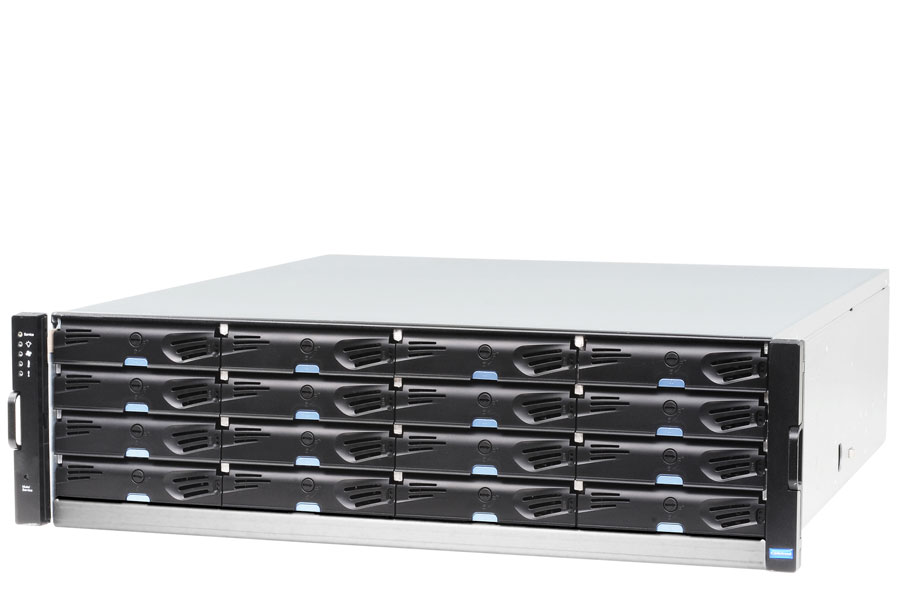

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | 1x Intel Core i3 Dual-Core
|
|---|---|
| Memory | 8GB DDR3 ECC RAM
(expandable, up to 32GB) |
| Chassis | 3U Chassis
|
| Dimensions | 132mm(H)x 500mm(D)x 446mm(W)
5.19"(H)x 19.68"(D)x 17.55"(W) |
| Drive Bays | 16x 2.5" or 3.5" Hot-Swap HDD Bays
Read/Write acceleration with four (4) SSDs 300GB, 450GB, 600GB, 900GB or 1.2TB - 2.5" 10,000 RPM 6Gb/s SAS drives 1TB, 2TB, 3TB, 4TB and 6TB - 3.5" 7,200 RPM 6Gb/s Nearline SAS drives Expansion Enclosure: (JBOD) JB 2016 JB 2060 JB 2024RB JB 2024SB Max. Drives: Per system: 16 Via JBOD: 256 |
| Power Supply | Power Management:
Network UPS with SNMP management Power: 80 PLUS certification power supplies: Dual redundant 530W AC voltage: 115VAC @ 10A / 230VAC @ 5A with PFC (auto-switching) Frequency: 47-63 Hz |
| Input / Output | Host Connectivity:
4 x 1GbE ports Optional host boards:
4 x 1GbE ports , 2 x10GbE SFP+, 2 x10GbE RJ-45, 16Gb FC Drive connectivity:
2x 6Gb/s SAS wide ports |
| Operating Environment | Temperature: 5 to 35°C operating
Relative humidity: 5 to 80% non-condensing, operating |
| Detailed Specification | Controller:
Single Protocol Support
File Level Protocol: CIFS/ SMB AFP NFS FTP Block Level Protocol: iSCSI Fibre Channel (FC) Supported Operating Systems Windows Server 2003
Windows Server 2008 R2 (including Hyper-V) Windows Server 2012 Red Hat SUSE Sun Solaris VMware Mac OS X Windows 8 RAID Level
0, 1(0+1), 5, 6, 10, 50, 60 Access Right Management
User account management Group management Folder management Folder and subfolder access control Folder quota Comprehensive access control action items All Controls, Read, Read and Run, Write, Modify, List Support Windows Active Directory Authentication Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer LDAP on Linux Data Protection Snapshot Remote replication (rsync with encryption) Apple Time Machine ICAP-based virus scanning support OpenSolaris ZFS end-to-end data integrity NDMP System Management Start-up wizard Web-based GUI Real-time system monitoring Dashboard monitoring Configurable alerts Network time protocol SNMP UPS management Disk Roaming HDD S.M.A.R.T. Capacity Management Thin provisioning Data compression Quota management Auto capacity expansion Network Configuration IPv4 and IPv6 via DHCP Fixed/dynamic IP address Port trunking/ Link Aggregation (IEEE 802.3ad) Fail-over Jumbo frame Security HTTPS connection Encrypted remote replication (rsync over 128-bit SSH) CHAP authentication for iSCSI volumes Performance Scaling Read/Write acceleration with four (4) SSDs
|
