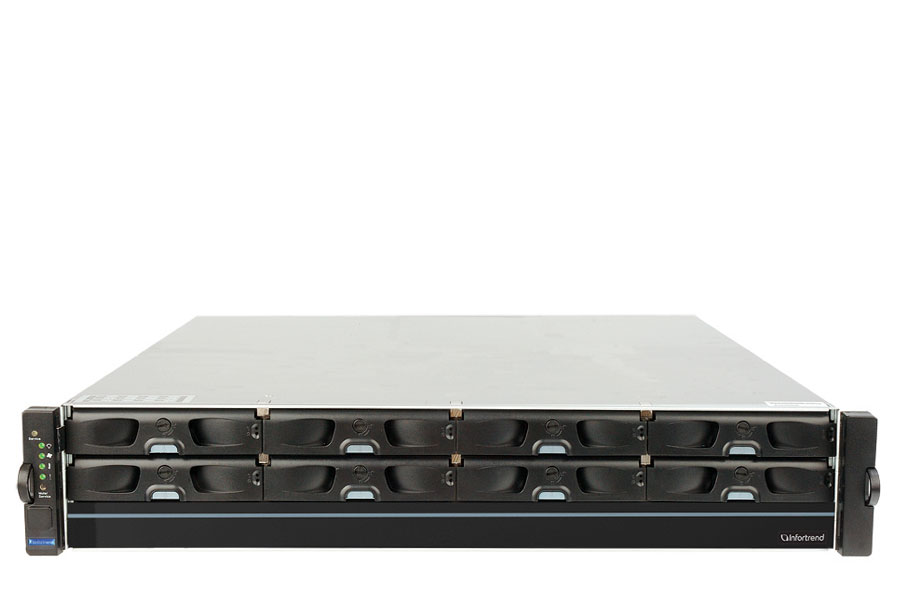

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel Celeron Dual-Core 2.5GHz
|
|---|---|
| Memory | 4GB DDR3 RAM (up to 16GB)
|
| Chassis | 2U Chassis
|
| Dimensions | 88.3mm(H)x 443.2mm(W)x 651.4mm(D)
3.47(H)x 17.44(W)x 25.64(D) |
| Drive Bays | 8x 3.5” SATAII/SATAIII hard disk drives
|
| Power Supply | Two (2) redundant internal 550W power supplies
AC voltage: 100-240V / 10-5A with PFC(auto-switching) Power frequency: 47-63 Hz |
| Input / Output | USB Ports: 6 (6 x rear)
2 x Gigabit LAN ports
|
| Cooling | System fan: 2 x SmartFan (8cm, 12V DC)
|
| Detailed Specification | Hardware
Sound Level: Access Mode: 47.4 dB
Software
Protocols: CIFS/SMB, AFP, NFS, FTP, iSCSI, SNMP, NDMP, NTP, ICAP, FTPS, Secure FTP Operating System Support: Windows XP, Vista (32/64-bit), Windows 7 (32/64- bit), Windows 8, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Apple Mac OS X, Linux, Red Hat, SuSE Server Virtualization: VMware vSphere Citrix XenServer Windows Server 2008 Hyper-V File System: Internal: ZFS External: FAT32, NTFS Networking: IPv6 support Fixed or dynamic IP address Dual Gigabit Ethernet with Jumbo Frame Port trunking/NIC teaming/Link aggregation (IEEE 802.3ad) DHCP Client Security: HTTPS connection Encrypted remote replication (rsync over 128-bit SSH) CHAP authentication for iSCSI volumes AES256-bit Encryption RAID and Volume Management: RAID0/1/5/5 + Hot spare/6/6+ Hot spare/10 Online and automatic RAID capacity expansion Compression Thin provisioning (iSCSI volumes only) ICAP-based anti-virus support Power Management: Wake on LAN Network UPS with SNMP management Schedule Power On/Of HDD Sleep-Mode Access Right Management: User account management Group management Folder management Folder and subfolder access control Folder quota Comprehensive access control action items All Controls, Read, Read and Run, Write, Modify, List Support Windows Active Directory Authentication Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer LDAP on Linux System Management: Web-based GUI HTTP/HTTPS connections Email alerts SNMP traps System status monitoring Exportable event logs System settings backup and restore Software live update disk roaming Time synchronization with the NTP server Disk Roaming HDD S.M.A.R.T. Data Protection: OpenSolaris ZFS end-to-end data integrity Detects and automatically heals silent data corruption Snapshot No number limitation For both shared folders and iSCSI volumes Scheduling at intervals as short as 10 minutes Automatic snapshot copy pruning based on userconfigured policy Remote Replication Rsync with 128-bit SSH encryption Pool mirror Remote data mirroring Real-time or scheduling IPsec encryption ICAP-based anti-virus support WORM(Write Once, Read Many) Browser Support: Internet Explorer Firefox Google Chrome File Server: Protocols: CIFS/SMB, AFP, NFS, FTP, HTTP/HTTPS Client operating system: Windows, Mac OS, Linux File/folder management by web browser FTP Server: Max. concurrent connection control Max. failed log-in attempt control |
