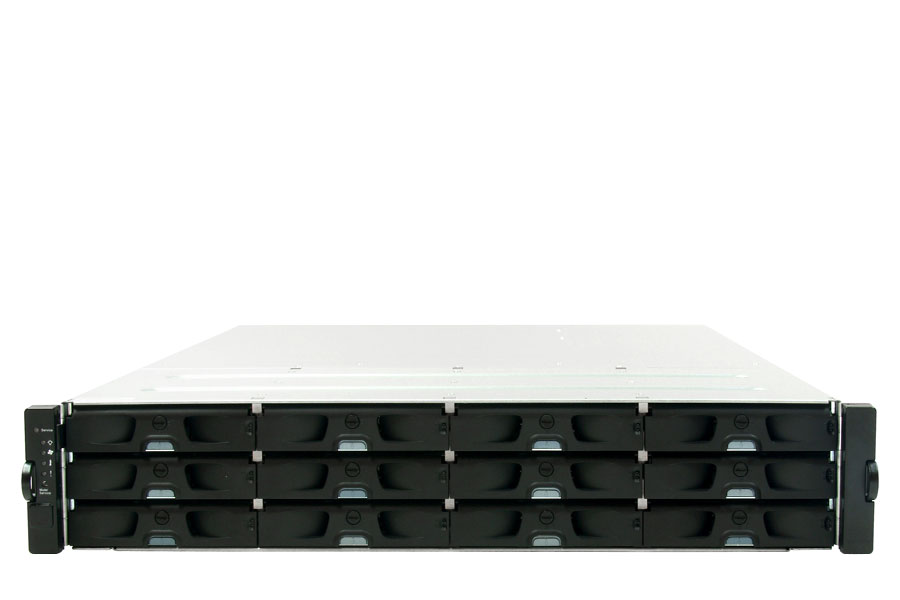

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Memory | Cache Memory:
Default 4GB, up to 8GB, 16GB or 32GB
(Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.)
|
|---|---|
| Chassis | 2U Chassis
|
| Dimensions | 448mm(W)x 88mm(H)x 500mm (D) Without chassis ears / protrusions
17.63"(W)x 3.46"(H)x 19.68"(D) |
| Drive Bays | Drive Connectivity:
6Gb/s SAS connectivity
Accommodates 3.5-inch disk drives S.M.A.R.T. support Automatic bad-sector reassignment Dedicated bandwidth to each connected drive Supported Drives: 3.5” SATAII/SATAIII hard disk drives
Maximum Number of Drives:
Per system: 12
Via JBOD: 120 |
| Power Supply | Power:
Power supplies: Two 530W
AC voltage: 100VAC @ 9A to 240VAC @ 4.5A with PFC (auto-switching) Frequency: 47-63 Hz Power Management: Wake on LAN
Network UPS with SNMP managment Schedule Power on/off HDD sleep-mode |
| Input / Output | Host Ports:
Onboard Gb/s ports
Three 1Gb/s iSCSI ports More host options: 2x 16Gb/s Fibre Channel ports 2x 10Gb/s iSCSi ports/ SFP+ or RJ-45 4x 1Gb/s iSCSI ports USB ports
4x USB ports (rear)
|
| Operating Environment | Temperature: 0 to 35°C operating/ -40 to 60°C non-operating
Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating Relative humidity: 5 to 95% non-condensing, operating and non-operating |
| Detailed Specification | Controller:
Single controller
RAID Functionality: Global, delicated or enclosure hot-spare
RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60 Online expansion by: - Adding new drives - Copying and replacing drives with drives of larger capacity RAID migration Configurable stripe size and write policy per system Intelligent drive handling - In degraded mode: skips irreparable blocks to continue rebuild - In normal operation: data-block verification and repair Data Protection and Data Service: OpenSolaris ZFS end-to-end data integrity
Local Repliation - Unlimited Snapshot - Pool mirror Remote Replication - Synchronous or asynchronous ICAP-based anti-virus support WORM(Write Once, Read Many)Local replication Data compression Availability and Reliability: Redundant, hot-swappable hardware modules
Notification: Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.
System Management: Start-up wizard
Web-based GUI Real-time system monitoring Dashboard monitoring Configurable alerts Network time protocol SNMP UPS management Disk Roaming HDD S.M.A.R.T. OS Support: Windows XP
Vista (32/64-bit) Windows 7 (32/64-bit) Windows server 2003 Windows Server 2008, 2008 R2 (including Hyper-V) Windows Server 2012 Apple Mac OS X Citrix XenServer VMware vSphere Newtork Configutation: IPv6 support
Fixed or dynamic IP address Dual Gigabit Ethernet with Jumbo Frame Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad) DHCP client MPIO, MC/S support Access Right Management: User account management
Group management Folder management - Folder and subfolder access control Folder quota Comprehensive access control action items - All Controls, Read, Read and Run, Write, Modify, List Support Windows Active Directory Authentication - Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer LDAP on Linux |
