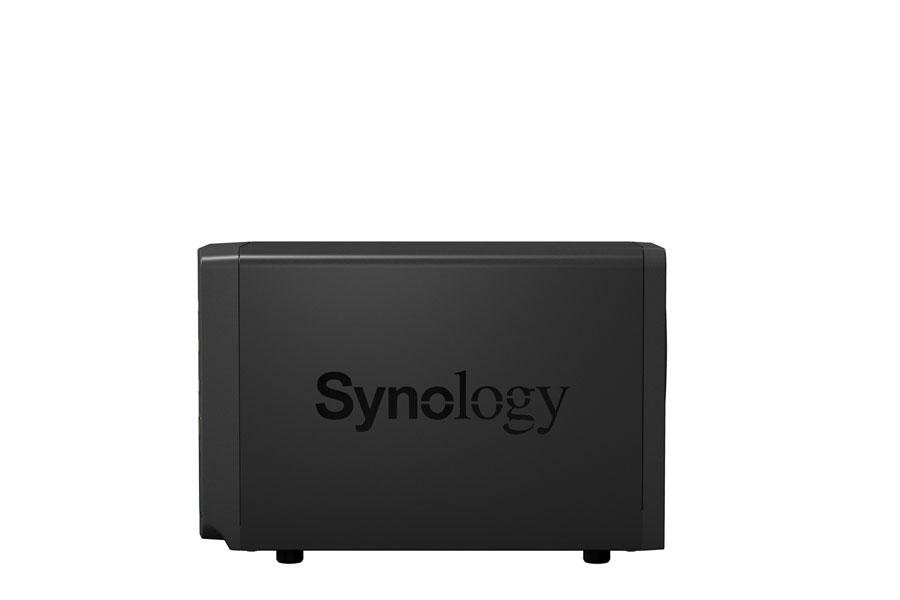

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU Model: Marvell Armada XP
CPU Frequency: Dual Core 1.33 GHz Floating Point: Yes Hardware Encryption Engine: Yes |
|---|---|
| Memory | System Memory: 1 GB DDR3
|
| Dimensions | 157mm(H)X 103.5mm(W)X 232mm(D)
6.18"(H)X 4.07"(W)X 9.13"(D) |
| Drive Bays | Drive Bay(s):
2 Hot-Swap Bays
Compatible Drive Type: 3.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) SSD Max. Internal Raw Capacity: 12 TB (6 TB HDD X 2) (Capacity may vary by RAID types) (See All Supported HDD) |
| Detailed Specification | External Ports:
1x USB 2.0 Port 2x USB 3.0 Port 1x eSATA Port File System: Internal Drives: EXT4 External Drives: EXT4 EXT3 FAT NTFS HFS+ (Read Only, with max. volume size 2TB) Others: LAN Number (RJ45): Gigabit X 2 System Fan: 92 mm X 92 mm X 1 pcs Noise Level: 19.2 dB(A) Power Supply Unit / Adapter: 72W AC Input Power Voltage:100V to 240V AC Power Frequency: 50/60 HZ, Single Phase Power Consumption: 27.62W (Access) 9.26W (HDD Hibernation) Link Aggregation Wake on LAN/WAN Wireless Support (dongle) Power Recovery Scheduled Power On/Off Temperature Operating Temperature: 5°C to 35°C (40°F to 95°F) Storage Temperature: -10°C to 70°C (15°F to 155°F) Relative Humidity: 5% to 95% RH Certification FCC Class B CE Class B BSMI Class B Notes Power consumption is measured when fully loaded with Western Digital 3TB WD30EZRS hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Storage Management
Max File System Size: 16 TB Max Internal Volume Number: 256 Max iSCSI Target Number: 10 Max iSCSI LUN: 10 Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1 RAID Migration: Basic to RAID 1 Volume Expansion with Larger HDDs: Synology Hybrid RAID RAID 1 Volume Expansion by Adding a HDD: Synology Hybrid RAID File Sharing Capacity
Max User Accounts: 2048 Max Groups: 256 Max Shared Folder: 256 Max Shared Folder Sync Tasks: 4 Max Concurrent CIFS/AFP/FTP Connections: 256 Windows Access Control List (ACL) Integration NFS Kerberos Authentication Syslog Events per Second: 400
Notes
Performance figures could vary on different environments. The Max File System size (or the Max Volume size) doesn't equal to the Max Internal Capacity, which is limited by the aggregated space of installed drives. |
