Home / Products / DS412+
$694.00

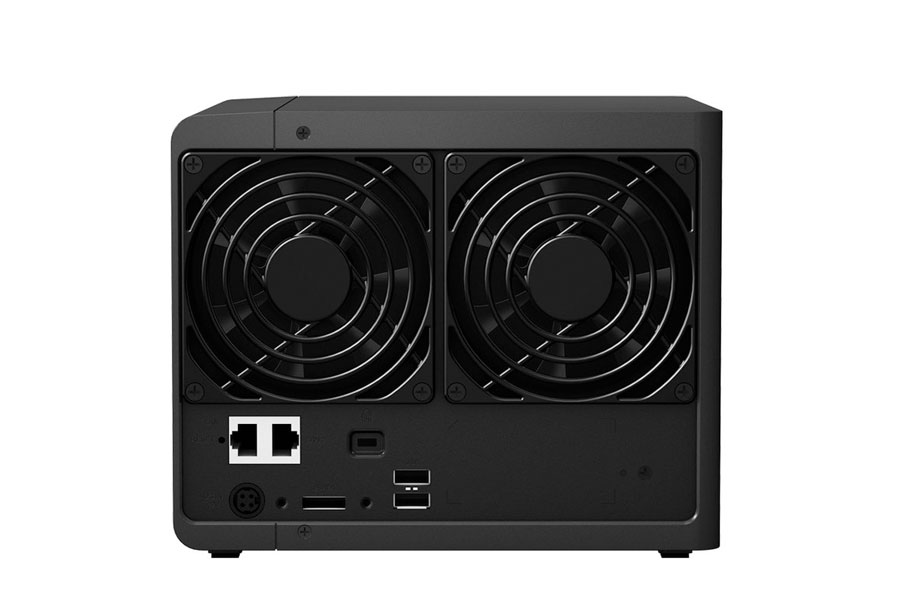

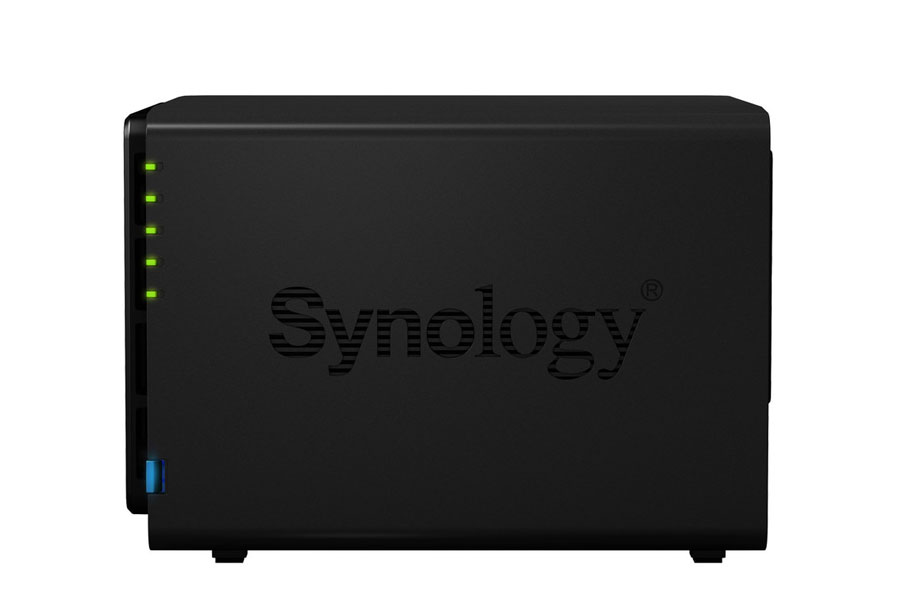

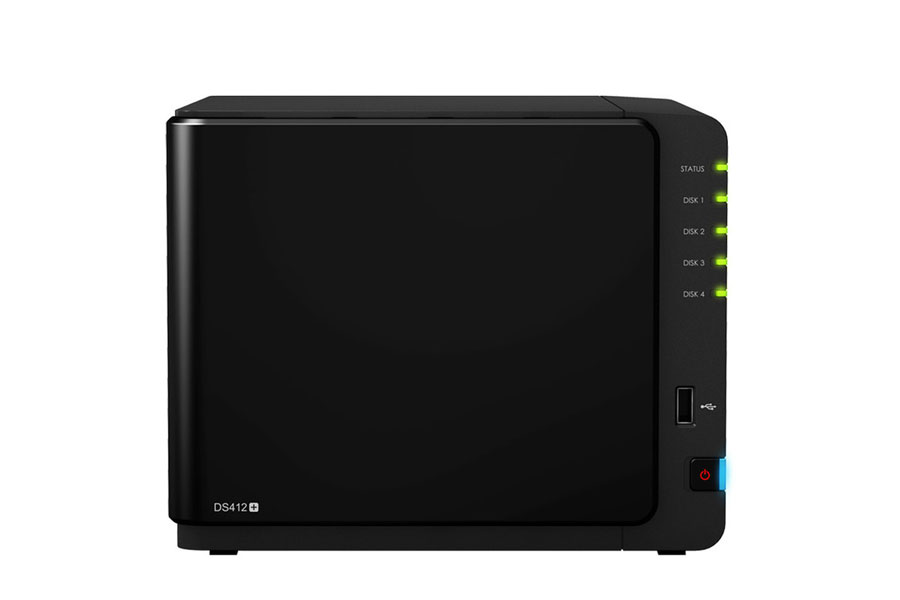

DS412+

DS412+

Synology DiskStation DS412+ Diskless High-Performance & Easy to Manage 4-bay All-in-1 NAS System for SMB Users

  • 205.68 MB/sec Reading, 182.66 MB/sec Writing
  • 2 LAN with Failover and Link Aggregation Support
  • Features SuperSpeed USB 3.0
  • CPU Passive Cooling Technology & System Fan Redundancy

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
*No Hard Drive
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000

Technical Specifications

Processor
Processor:
Dual Core 2.13GHz
Memory
Default/ Max. Memory:
DDR3 1GB
Dimensions
9.18"x 7.99"x 6.5"
Detailed Specification
General
Brand:
Synology
Model:
DS412+

Interfaces
Port RJ-45:
2 x 10/100/1000M
Port USB:
2 x USB3.0 + 1 x USB2.0
Port eSATA:
1 x eSATA II
HDD Interface:
3.5" or 2.5" SATA(II) X4 (Hard drive not included)

Configuration
Form Factor:
4-Bay
Processor:
Dual Core 2.13GHz
Default/ Max. Memory:
DDR3 1GB

Hard Drive Performance
Included HDD Capacity:
Diskless System

Conveniences
Supported Protocols:
Networking Protocols
- CIFS
- AFP
- NFS
- FTP
- WebDAV
- iSCSI
- Telnet
- SSH
- SNMP
Management:
Storage Management:
- Max Volume # : 512
- Max File System Size : 108TB
- Max iSCSI Target # : 32
- Max iSCSI LUN # : 256
- Supported RAID Type : Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10
- RAID Migration : Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6
- Volume Expansion with Larger HDDs : RAID 1, RAID 5, RAID 5+Spare, RAID 6
- Volume Expansion by Adding a HDD : RAID 5
Management:
- Auto DSM Upgrade
- Administrator Group
- Email Notification
- SMS Notification
- Customized User Quota
- DDNS Support
- IPv6 Support
- PPPoE
- Resource Monitor
- UPS Management
- Scheduled Power On/Off
- Custom Management UI HTTP/HTTPS Ports
HDD Management:
- HDD Hibernation
- S.M.A.R.T.
- Dynamic Bad Sector Mapping

Power
100-240 VAC 50/60Hz

Features
205.68 MB/sec Reading, 182.66 MB/sec Writing
2 LAN with Failover and Link Aggregation Support
Features SuperSpeed USB 3.0
CPU Passive Cooling Technology & System Fan Redundancy
Hot-swappable Hard Drive Design
Windows ADS and ACL Support
VMware / Citrix / Microsoft Hyper-V Compliance
Running on Synology DiskStation Manager (DSM)
Usage
High read/write performance with RAID

Environment
Temperature:
5°C - 35 °C
Humidity:
5-95% R.H

Frequently Asked Questions

Yes. Spectrum Servers offers custom configurations for all server products. Use the Configure Options section above to select processors, memory, storage and other components, or request a custom quote.

All products sold by Spectrum Servers include the manufacturer's standard warranty. Extended warranty options are available. Contact our sales team at sales@spectrumservers.com or call +1 (626) 956-0100 for details.

Lead times vary by product and configuration. In-stock items typically ship within 1–3 business days. Custom configured systems may take 5–15 business days. Contact us for specific availability and lead time information.

Yes. Spectrum Servers provides technical support for all products sold. Our engineers are available Monday–Friday 8:30AM–5:30PM PST. Reach us at +1 (800) 526-8650 or email sales@spectrumservers.com.

Yes. Volume discounts are available for orders of 5 or more units. Please request a quote or contact our sales team directly for pricing on larger orders.
