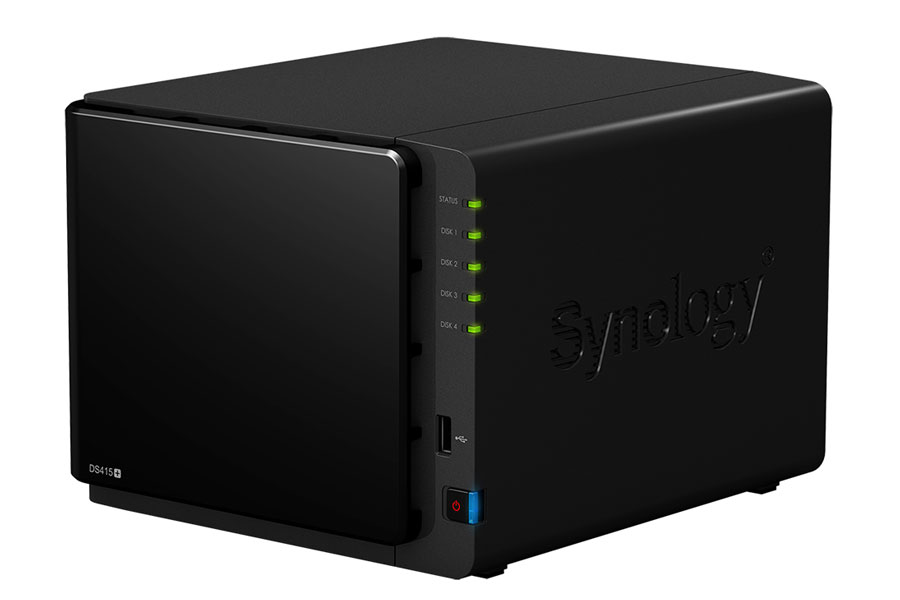

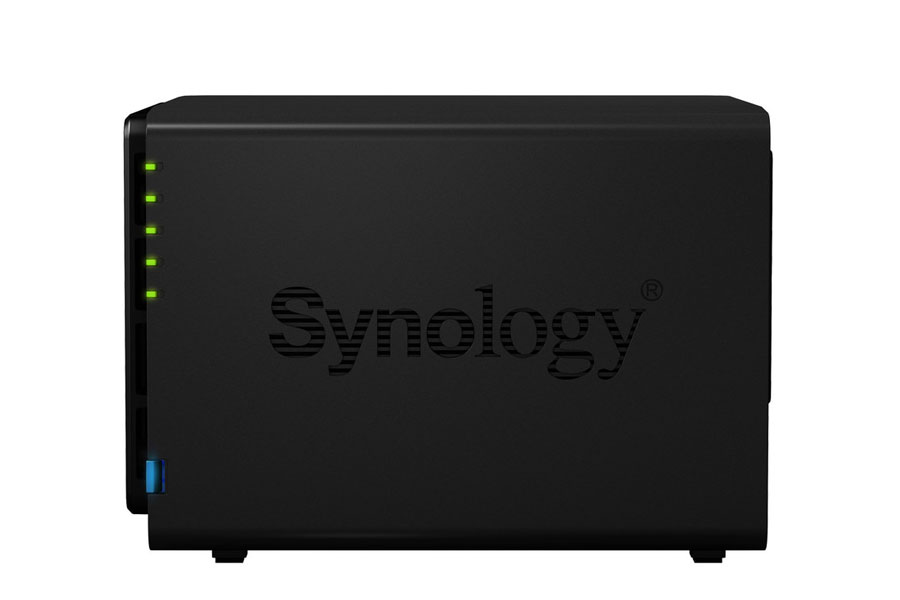

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU Model:
Intel Atom CPU Frequency: Quad Core 2.4 GHz Floating Point Hardware Encryption Engine |
|---|---|
| Memory | System Memory:
2 GB DDR3
|
| Dimensions | 165mm(H)X 203mm(W)X 233.2mm(D)
6.49"(H)X 7.99"(W)X 9.18"(D) |
| Drive Bays | 4x Hot-Swap Drive Bays
Compatible Drive Type: 3.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) SSD Max. Internal Raw Capacity: 24 TB (6 TB HDD X 4) (Capacity may vary by RAID types) |
| Power Supply | Power Supply Unit / Adapter:100W
AC Input Power Voltage:100V to 240V AC
Power Frequency:50/60 HZ, Single Phase
Power Consumption:
46.2W (Access) 17.3W (HDD Hibernation) |
| Detailed Specification | External Ports
1x USB 2.0 Port 2x USB 3.0 Port 1x eSATA Port File System Internal Drives:EXT4 External Drives: EXT4 EXT3 FAT NTFS HFS+ Others Link Aggregation Wake on LAN/WAN Wireless Support (dongle) Power Recovery Scheduled Power On/Off LAN Number (RJ45): Gigabit X 2 System Fan: 92 mm X 92 mm X 2 pcs Noise Level: 20.2 dB(A) Temperature Operating Temperature: 5°C to 35°C (40°F to 95°F) Storage Temperature: -20°C to 60°C (-5°F to 140°F) Relative Humidity: 5% to 95% RH Certification: FCC Class B CE Class B BSMI Class B Notes: Power consumption is measured when fully loaded with Western Digital 3TB WD30EZRS hard drive(s).
Storage Management Max File System Size: 108 TB Max Internal Volume Number: 512 Max iSCSI Target Number: 32 Max iSCSI LUN: 256 iSCSI LUN Clone/Snapshot, Windows ODX Supported RAID Type: Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID Migration: Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 Volume Expansion with Larger HDDs: Synology Hybrid RAID RAID 1 RAID 5 RAID 6 Volume Expansion by Adding a HDD: Synology Hybrid RAID RAID 5 JBOD Global Hot Spare Supported RAID Type: Synology Hybrid RAID RAID 1 RAID 5 SSD Support SSD Read/Write Cache (White Paper) SSD TRIM Virtualization VMware vSphere 5 with VAAI Windows Server 2012 Windows Server 2012 R2 Citrix Ready Environment: RoHS Compliant |
