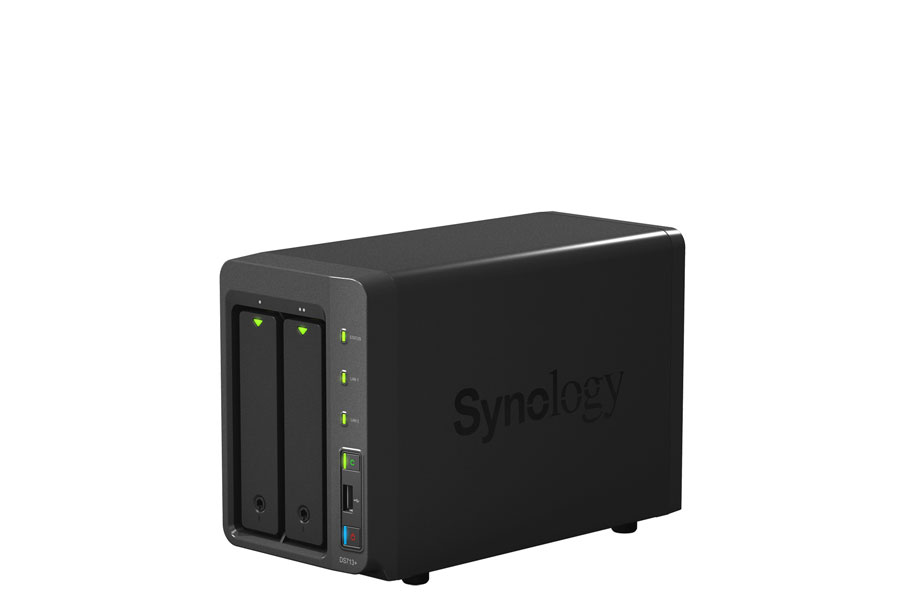

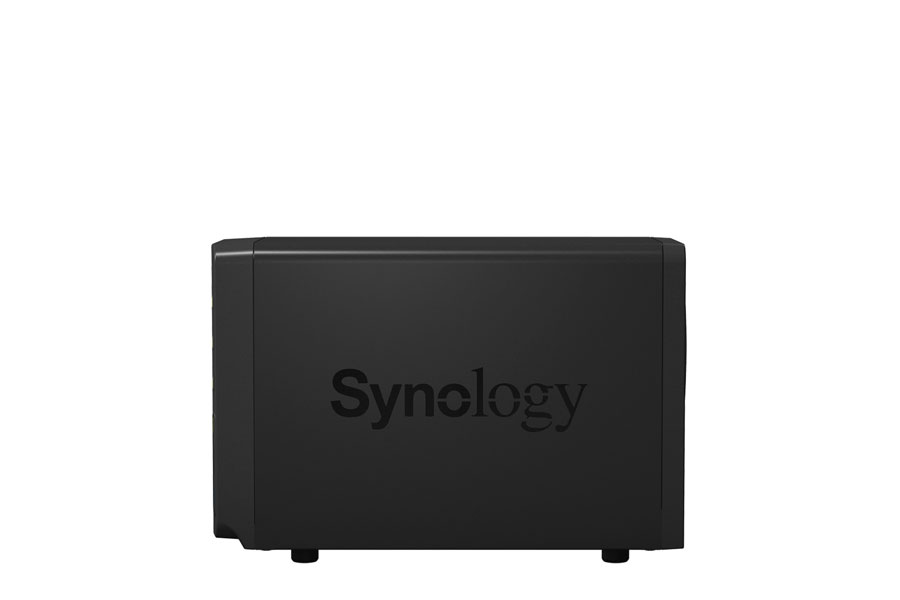

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU Model:
Intel Atom CPU Frequency: Dual Core 2.13 GHz Floating Point |
|---|---|
| Memory | System Memory:
1 GB DDR3 |
| Dimensions | 157mm(H)X 103.5mm(W)X 232mm(D)
6.18"(H)X 4.07"mm(W)X 9.13"(D) |
| Drive Bays | 2x hot-swap Drive Bays
Max. Drive Bays with Expansion Unit: 7 Compatible Drive Type: 3.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) SSD Max. Internal Raw Capacity: 12 TB (6 TB HDD X 2) (Capacity may vary by RAID types) |
| Power Supply | Power Supply Unit / Adapter:
72W AC Input Power Voltage: 100V to 240V AC Power Frequency: 50/60 HZ, Single Phase Power Consumption: 30.72W (Access) 17.88W (HDD Hibernation) |
| Operating Environment | Operating Temperature:
5°C to 35°C (40°F to 95°F) Storage Temperature: -10°C to 70°C (15°F to 155°F) Relative Humidity: 5% to 95% RH |
| Detailed Specification | Brand: Synology
External Ports 1x USB 2.0 Port 2x USB 3.0 Port 1x eSATA Port USBCopy File System Internal Drives:EXT4 External Drives: EXT4 EXT3 FAT NTFS HFS+ Others Link Aggregation Wake on LAN/WAN Wireless Support (dongle) Power Recovery Scheduled Power On/Off LAN Number (RJ45): Gigabit X 2 System Fan: 92 mm X 92 mm X 1 pcs Noise Level: 19.2 dB(A) Certification: FCC Class B CE Class B BSMI Class B Storage Management Max File System Size: 108 TB Max Internal Volume Number: 512 Max iSCSI Target Number: 32 Max iSCSI LUN: 256 iSCSI LUN Clone/Snapshot, Windows ODX Supported RAID Type: Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID Migration: Basic to RAID 1 Volume Expansion with Larger HDDs: Synology Hybrid RAID RAID 1 Volume Expansion by Adding a HDD: Synology Hybrid RAID Global Hot Spare Supported RAID Type: Synology Hybrid RAID SSD Support: SSD TRIM Virtualization: VMware vSphere 4 VMware vSphere 5 with VAAI Windows Server 2008 Windows Server 2012 Citrix Ready |
