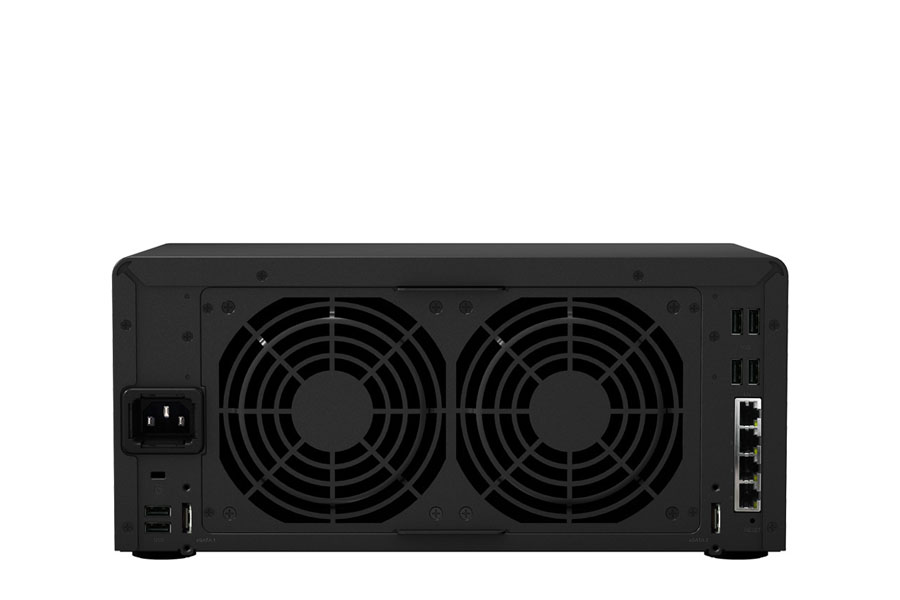

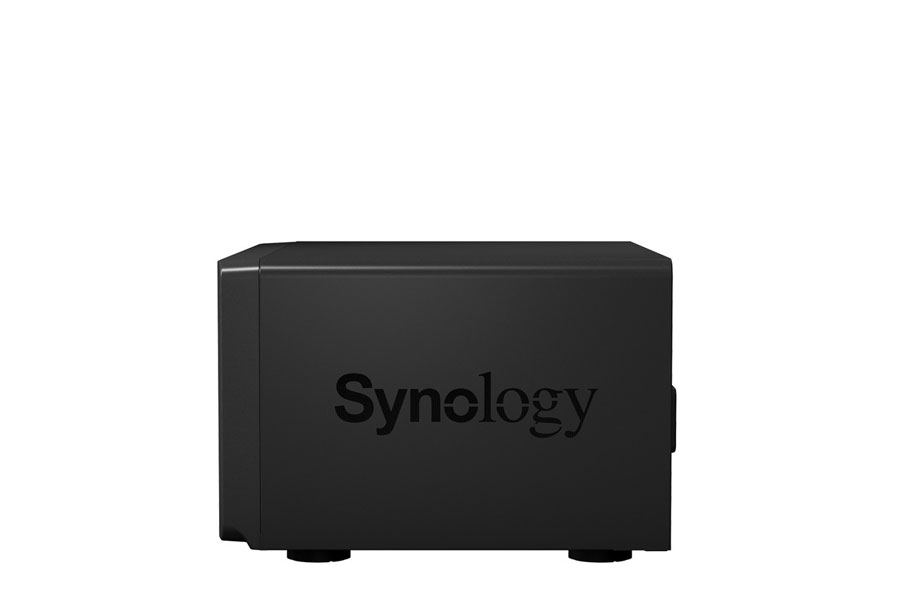

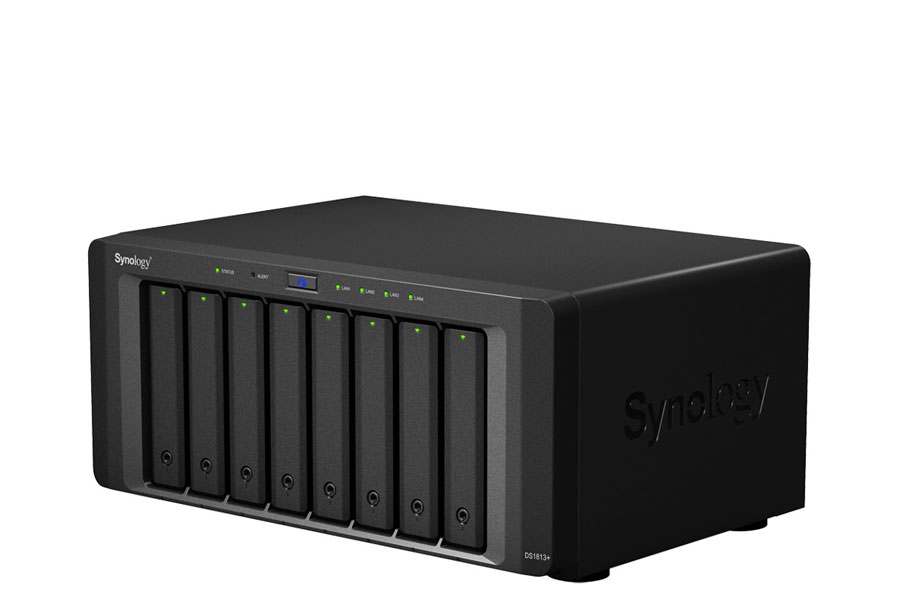

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU Model:
Intel Atom CPU Frequency: Dual Core 2.13 GHz Floating Point |
|---|---|
| Memory | System Memory:
2 GB DDR3 Memory Module Pre-installed: 2 GB X 1 Total Memory Slots: 2 Memory Expandable up to: 4 GB (2 GB X 2) |
| Dimensions | 157mm(H)X 340mm(W)X 233mm(D)
6.18"(H)X 13.38"(W)X 9.17"(D) |
| Drive Bays | 8x Hot-Swap Drive Bay(s)
Max. Drive Bays with Expansion Unit: 18 Compatible Drive Type: 3.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) SSD Max. Internal Raw Capacity: 48 TB (6 TB HDD X 8) (Capacity may vary by RAID types) |
| Power Supply | Power Supply Unit / Adapter:
250W AC Input Power Voltage: 100V to 240V AC Power Frequency: 50/60 HZ, Single Phase Power Consumption: 75.19W (Access) 34.12W (HDD Hibernation) |
| Detailed Specification | Brand: Synology
External Ports: USB 2.0 Port 4 USB 3.0 Port 2 eSATA Port 2 File System Internal Drives:EXT4 External Drives: EXT4 EXT3 FAT NTFS HFS+ Others Link Aggregation Wake on LAN/WAN Easy Replacement System Fan Wireless Support (dongle) Power Recovery Scheduled Power On/Off LAN Number (RJ45): Gigabit X 4 Noise Level: 24.1 dB(A) System Fan: 120 mm X 120 mm X 2 pcs Temperature Operating Temperature 5°C to 35°C (40°F to 95°F) Storage Temperature -10°C to 70°C (15°F to 155°F) Relative Humidity 5% to 95% RH Certification: FCC Class B CE Class B BSMI Class B Notes Power consumption is measured when fully loaded with Western Digital 3TB WD30EZRS hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Storage Management Max File System Size: 108 TB Max Internal Volume Number: 512 Max iSCSI Target Number: 32 Max iSCSI LUN: 256 iSCSI LUN Clone/Snapshot, Windows ODX Supported RAID Type: Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID Migration: Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 Volume Expansion with Larger HDDs: Synology Hybrid RAID RAID 1 RAID 5 RAID 6 Volume Expansion by Adding a HDD: Synology Hybrid RAID RAID 5 RAID 6 JBOD Global Hot Spare Supported RAID Type: Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10 SSD Support: SSD Read/Write Cache (White Paper) SSD TRIM File Sharing Capacity Max User Accounts: 2048 Max Groups: 256 Max Shared Folder: 512 Max Shared Folder Sync Tasks: 8 Max Concurrent CIFS/AFP/FTP Connections: 512 Windows Access Control List (ACL) Integration NFS Kerberos Authentication Log Center Syslog Events per Second: 800 Virtualization VMware vSphere 5 with VAAI Windows Server 2012 Citrix Ready |
