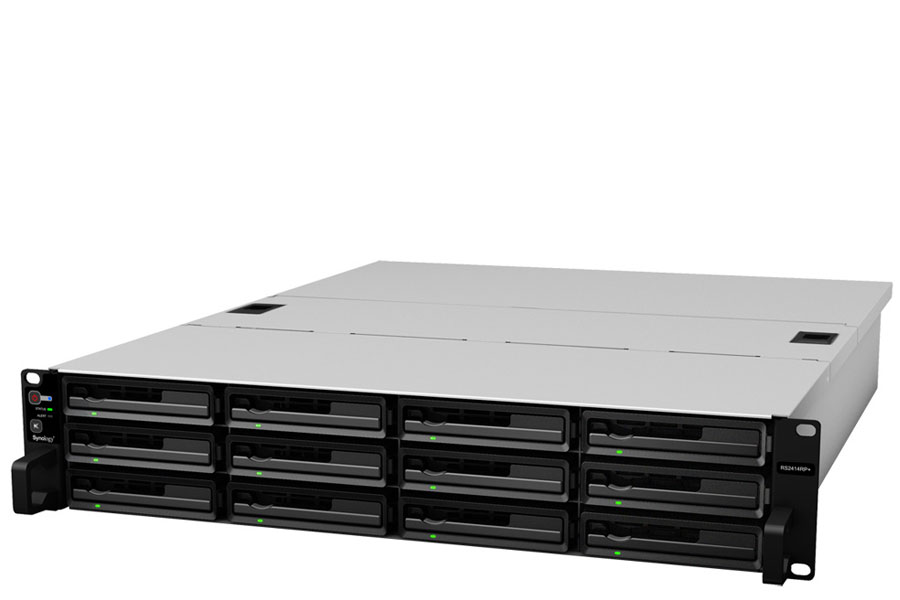

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU Model:
Intel Atom CPU Frequency: Dual Core 2.13 GHz Floating Point |
|---|---|
| Memory | System Memory:
2 GB DDR3 Memory Module Pre-installed: 2 GB X 1 Total Memory Slots: 2 Memory Expandable up to: 4 GB (2 GB X 2) |
| Dimensions | 88mm(H)X 445mm(W)X 570mm(D)
3.46"(H)X 17.51"(W)X 22.44"(D) |
| Drive Bays | 12x Hot-Swap Drive Bays
Max. Drive Bays with Expansion Unit: 24 Compatible Drive Type: 3.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) SSD Max. Internal Raw Capacity: 72 TB (6 TB HDD X 12) (Capacity may vary by RAID types) |
| Power Supply | Power Supply Unit / Adapter:
2 X 400W redundant AC Input Power Voltage: 100V to 240V AC Power Frequency: 50/60 HZ, Single Phase Power Consumption: 125W (Access) 57W (HDD Hibernation) |
| Operating Environment | Operating Temperature:
5°C to 35°C (40°F to 95°F) Storage Temperature: -10°C to 70°C (15°F to 155°F) Relative Humidity: 5% to 95% RH |
| Detailed Specification | Brand:
Synology
External Ports
2x USB 2.0 Port 2x USB 3.0 Port 1x Expansion Port File System Internal Drives: EXT4 External Drives: EXT4 EXT3 FAT NTFS HFS+ Others
Link Aggregation
Wake on LAN/WAN Easy Replacement System Fan
Wireless Support (dongle) Power Recovery
Scheduled Power On/Off LAN Number (RJ45): Gigabit X 4 System Fan: 80 mm X 80 mm X 4 pcs Noise Level: 42.2 dB(A) (for RP model) Certification:
FCC Class A CE Class A BSMI Class A Storage Management
Max File System Size: 108 TB Max Internal Volume Number: 512 Max iSCSI Target Number: 32 Max iSCSI LUN: 256 iSCSI LUN Clone/Snapshot, Windows ODX
Supported RAID Type:
Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID Migration: Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 Volume Expansion with Larger HDDs: Synology Hybrid RAID RAID 1 RAID 5 RAID 6 Volume Expansion by Adding a HDD: Synology Hybrid RAID RAID 5 RAID 6 JBOD Global Hot Spare Supported RAID Type: Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10 SSD Support SSD Read/Write Cache (White Paper) SSD TRIM File Sharing Capacity Max User Accounts: 2048 Max Groups: 256 Max Shared Folder: 256 Max Shared Folder Sync Tasks: 8 Max Concurrent CIFS/AFP/FTP Connections: 512 Windows Access Control List (ACL) Integration NFS Kerberos Authentication Log Center Syslog Events per Second: 800 Virtualization VMware vSphere 5 with VAAI Windows Server 2012 Citrix Ready Notes: The Max File System size (or the Max Volume size) doesn't equal to the Max Internal Capacity, which is limited by the aggregated space of installed drives. |
