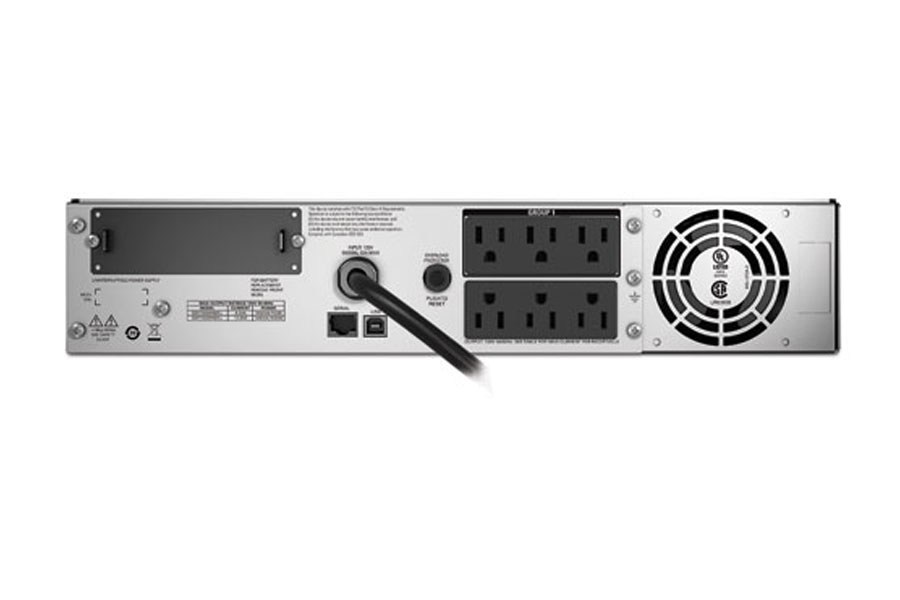

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Detailed Specification | Output
Output Power Capacity: 1000 Watts / 1440 VA Max Configurable Power: 1000 Watts / 1440 VA Nominal Output Voltage: 120V Output Voltage Distortion: Less than 5% Output Frequency (sync to mains): 50/60Hz +/- 3 Hz Topology: Line Interactive Waveform Type: Sine wave Output Connections 6x NEMA 5-15R Input Nominal Input Voltage: 120V Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing) Input Connections: NEMA 5-15P Cord Length: 2.44 meters Input voltage range for main operations: 82 - 144V Input voltage adjustable range for mains operation: 75 - 154V Communications & Management Interface Port(s): SmartSlot, USB Available SmartSlot™ Interface Quantity: 1 Control panel: Multi-function LCD status and control console Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO): Optional Surge Protection and Filtering Surge energy rating: 459 Joules Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum: Height 89.00 mm Maximum: Width 432.00 mm Maximum: Depth 457.00 mm Rack Height: 2U Environmental Operating Environment: 0 - 40 °C Operating Relative Humidity: 0 - 95% Operating Elevation: 0-3000 meters Storage Temperature: -15 - 45 °C Storage Relative Humidity: 0 - 95% Storage Elevation: 0-15000 meters Audible noise at 1 meter from surface of unit: 46.00 dBA Online Thermal Dissipation: 90.00 BTU/hr Conformance Regulatory Approvals: CSA, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778 Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery Sustainable Offer Status RoHS: Compliant REACH: Contains No SVHCs |
|---|
