Home / Products / SMT3000RM2U
$1,410.00
SMT3000RM2U

SMT3000RM2U

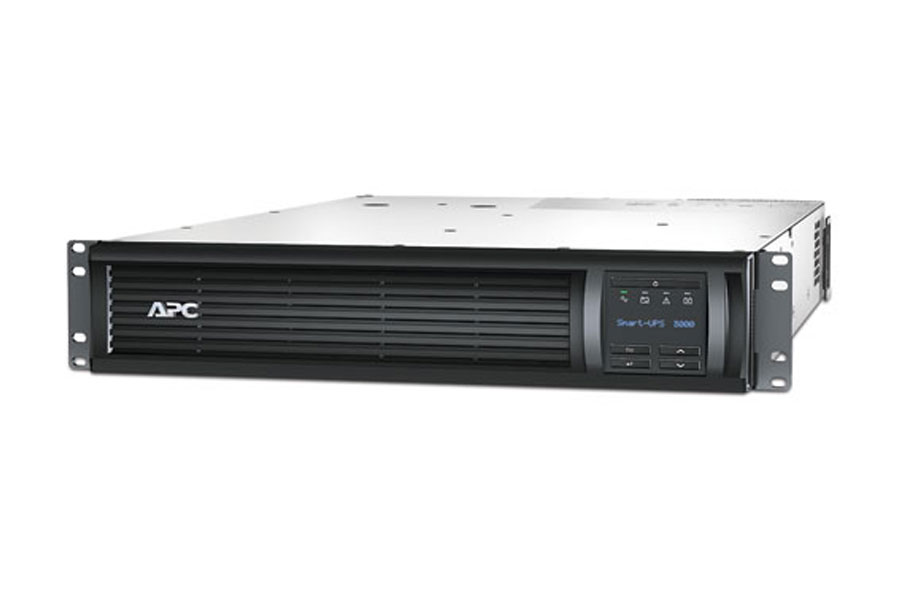

APC 3000VA 2700W LCD RM 2U 120V Smart-UPS

APC Smart-UPS,2700 Watts /2880 VA,Input 120V /Output 120V, Interface Port USB, Rack Height 2U

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Output
Output Power Capacity:
2700 Watts / 2880 VA
Max Configurable Power:
2700 Watts / 2880 VA
Nominal Output Voltage:
120V
Output Voltage Distortion:
Less than 5%
Output Frequency (sync to mains):
50/60Hz +/- 3 Hz
Topology:
Line Interactive
Waveform Type:
Sine wave

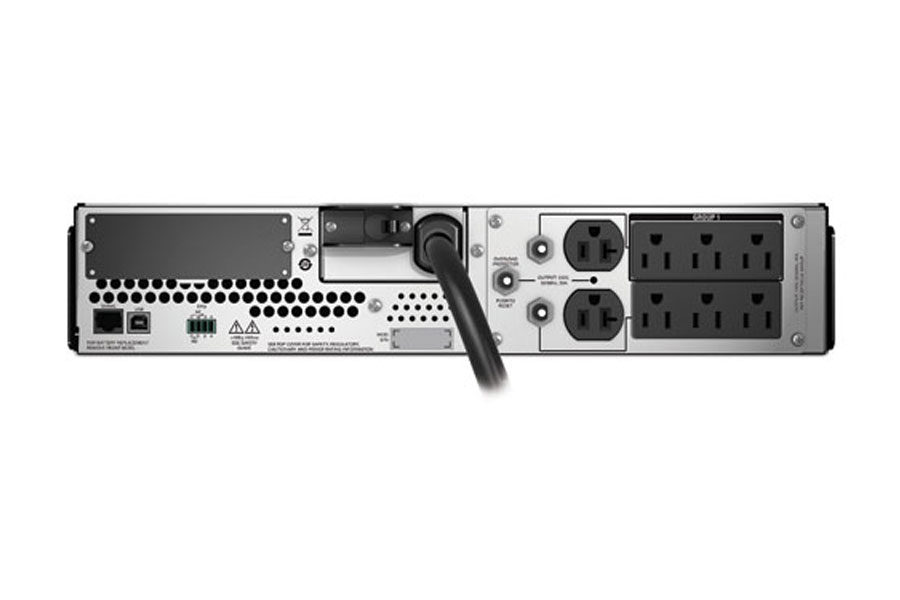

Output Connections
6x NEMA 5-15R
2x NEMA 5-20R

Input
Nominal Input Voltage:
120V
Input Frequency:
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:
NEMA L5-30P
Cord Length:
2.44 meters
Input voltage range for main operations:
82 - 144V
Input voltage adjustable range for mains operation:
75 - 154V

Communications & Management
Interface Port(s):
USB
Available SmartSlot™ Interface Quantity:
1
Control panel:
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating:
459 Joules

Physical
Maximum Height:
86.00 mm
Maximum Width:
480.00 mm
Maximum Depth:
683.00 mm
Rack Height:
2U

Environmental
Operating Environment:
0 - 40 °C
Operating Relative Humidity:
0 - 95%
Operating Elevation:
0-3000 meters
Storage Temperature:
-15 - 45 °C
Storage Relative Humidity:
0 - 95%
Storage Elevation:
0-15000 meters
Audible noise at 1 meter from surface of unit:
55.00 dBA
Online Thermal Dissipation:
348.00 BTU/hr

Conformance
Regulatory Approvals:
CSA, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Standard Warranty:
3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status
RoHS:
Compliant
REACH::
Contains No SVHCs
