SMT3000RMT2U

SMT3000RMT2U

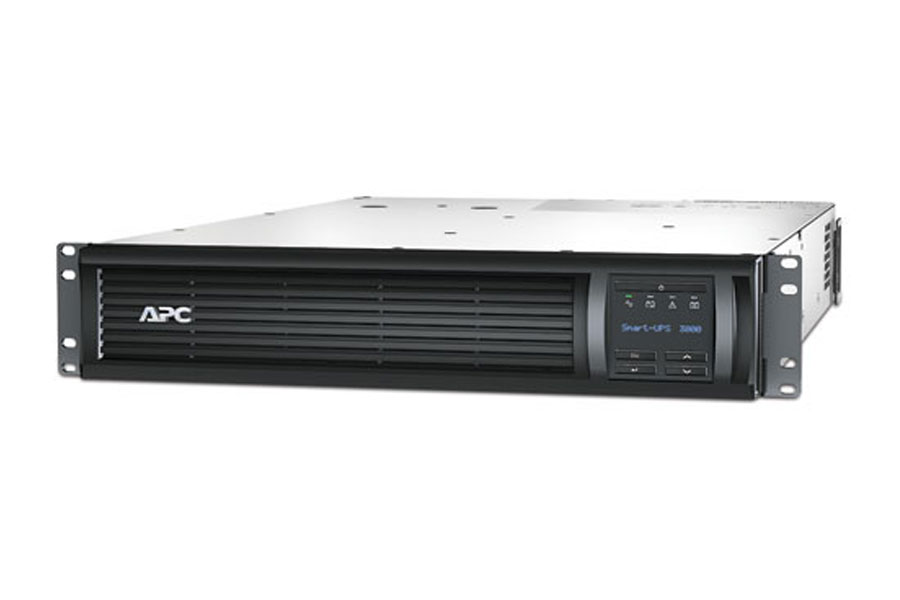

APC 3000VA 2700W RM 2U LCD 208V Smart-UPS

APC Smart-UPS,2700 Watts /3000 VA,Input 208V /Output 208V, Interface Port USB, Rack Height 2U

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Output
Output Power Capacity:
2700 Watts / 3000 VA
Max Configurable Power:
2700 Watts / 3000 VA
Nominal Output Voltage:
208V
Output Voltage Distortion:
Less than 5%
Output Frequency (sync to mains):
50/60Hz +/- 3 Hz
Topology:
Line Interactive
Waveform Type:
Sine wave
Output Connections:
2x NEMA L6-20R    NEMA L6-20R

Input
Nominal Input Voltage:
208V
Input Frequency:
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:
NEMA L6-20P
Cord Length:
2.44 meters
Input voltage range for main operations:
141 - 255V
Input voltage adjustable range for mains operation:
131 - 268V

Communications & Management
Interface Port(s):
USB
Available SmartSlot™ Interface Quantity:
1
Control panel:
Multi-function LCD status and control console
Audible Alarm:
Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering
Surge energy rating:
320 Joules

Physical
Maximum Height:
86.00 mm
Maximum Width:
480.00 mm
Maximum Depth:
683.00 mm
Rack Height:
2U

Environmental
Operating Environment:
0 - 40 °C
Operating Relative Humidity:
0 - 95%
Operating Elevation:
0-3000 meters
Storage Temperature:
-15 - 45 °C
Storage Relative Humidity:
0 - 95%
Storage Elevation:
0-15000 meters
Audible noise at 1 meter from surface of unit:
55.00 dBA
Online Thermal:
Dissipation 348.00 BTU/hr

Conformance
Regulatory Approvals:
ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Standard Warranty:
3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status
RoHS:
Compliant
REACH:
Contains No SVHCs
