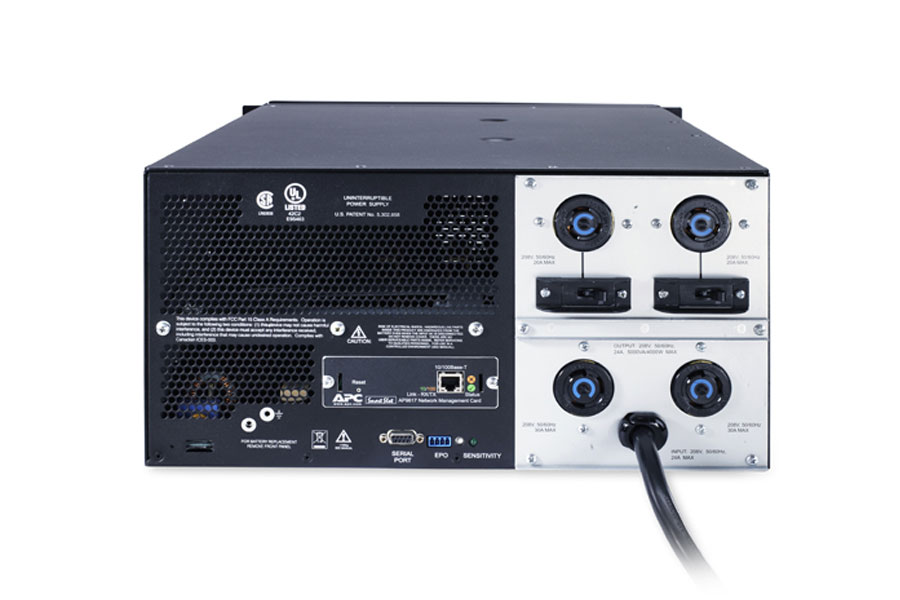

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Detailed Specification | Output
Output Power Capacity: 4000 Watts / 5000 VA Max Configurable Power: 4000 Watts / 5000 VA Nominal Output Voltage: 208V Output Voltage Distortion: Less than 5% at full load Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal Topology: Line Interactive Waveform Type: Sine wave Output Connections 2x NEMA L6-20R 2x NEMA L6-30R Input Nominal Input Voltage: 208V Input Frequency: 50/60 Hz +/- 5 Hz (manual switch) Input Connections: NEMA L6-30P Cord Length: 2.44 meters Input voltage range for main operations: 141 - 255V Input voltage adjustable range for mains operation: 131 - 268V Communications & Management Interface Port(s): DB-9 RS-232, SmartSlot Pre-Installed SmartSlot™ Cards: AP9630 Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO): Optional Surge Protection and Filtering Surge energy rating: 480 Joules Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum Height: 222.00 mm Maximum Width: 483.00 mm Maximum Depth: 660.00 mm Rack Height: 5U Environmental Operating Environment: 0 - 45 °C Operating Relative Humidity: 0 - 95% Operating Elevation: 0-3000 meters Storage Temperature: -5 - 55 °C Storage Relative Humidity: 0 - 95% Storage Elevation: 0-15000 meters Audible noise at 1 meter from surface of unit: 53.00 dBA Online Thermal Dissipation: 344.00 BTU/hr Conformance Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1778 Standard Warranty: 2 years repair or replace Sustainable Offer Status RoHS: Compliant Other Environmental Compliance: China RoHS |
|---|
