Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Chassis | 4U Chassis
|
|---|---|
| Dimensions | Height:
7" (178mm) Width: 17.6" (447mm) Depth: 35.66" (906mm) |

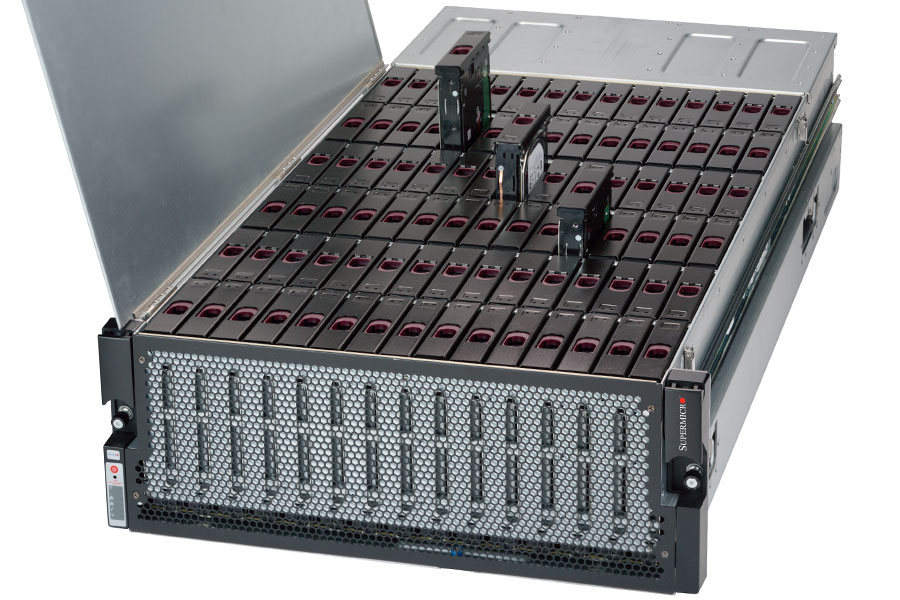

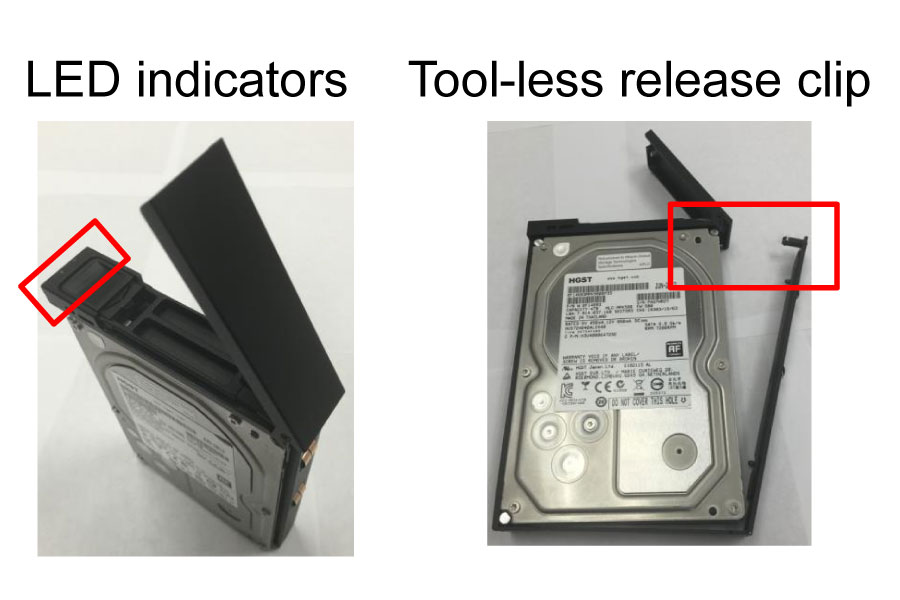

| Drive Bays | 90 x 3.5"/2.5" hot-swap SAS drive bay with SES3
SAS HDD only recommended |
| Power Supply | 1U 1000W Redundant Single Output Power Supply Titanium Level
AC Input: 100-127 V, 50-60 Hz 200-240 V, 50-60 Hz +12V: Max: 66.7A (100Vac-127Vac) Max: 83A (200Vac-240Vac) 12V SB: Max: 2.1A Certification: 80+ Titanium Level Regulatory (Power Supply)
Power Supply Safety / EMC:
USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant |
| Front Panel | Buttons:
Power On/Off button Unit Identification (UID) button LEDs: 2 Network Activity LEDs Power Fail LED System Information LED Unit Identification (UID) LED |
| Cooling | 5x 80mm heavy duty fans with PWM fan speed control
|
| Operating Environment | Operating Temperature Range:
5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range: -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range: 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |

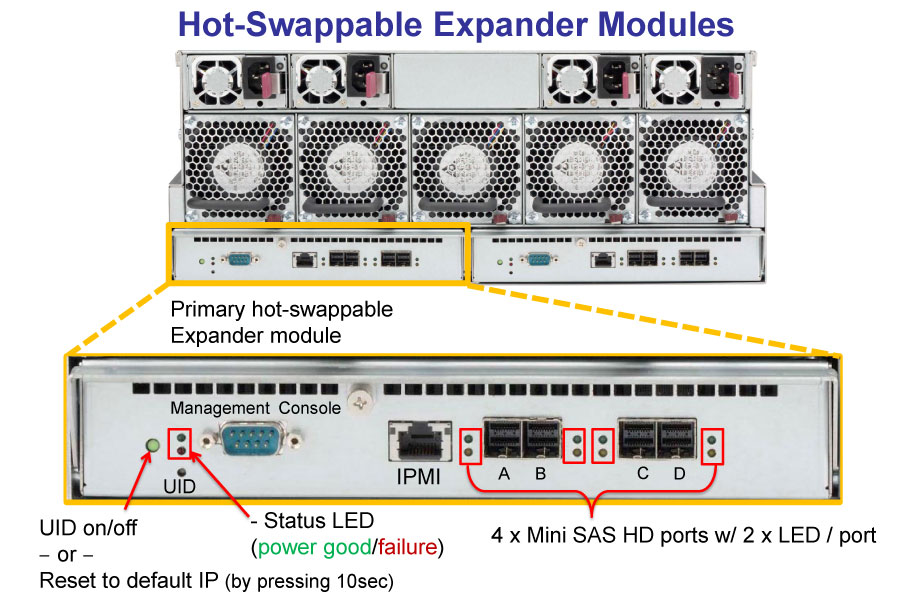

| Detailed Specification | Expander Module
Dual hot-swappable SAS3 expander module |
