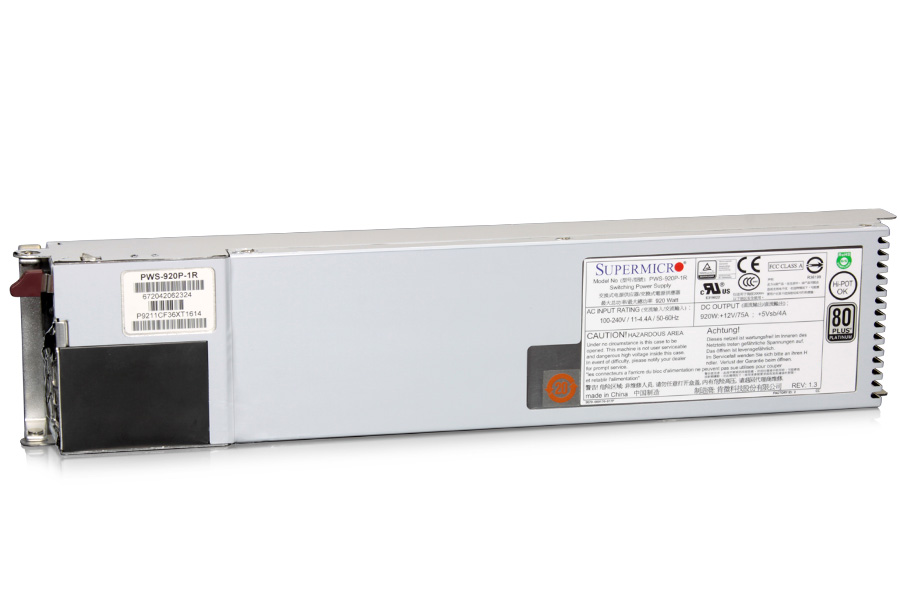

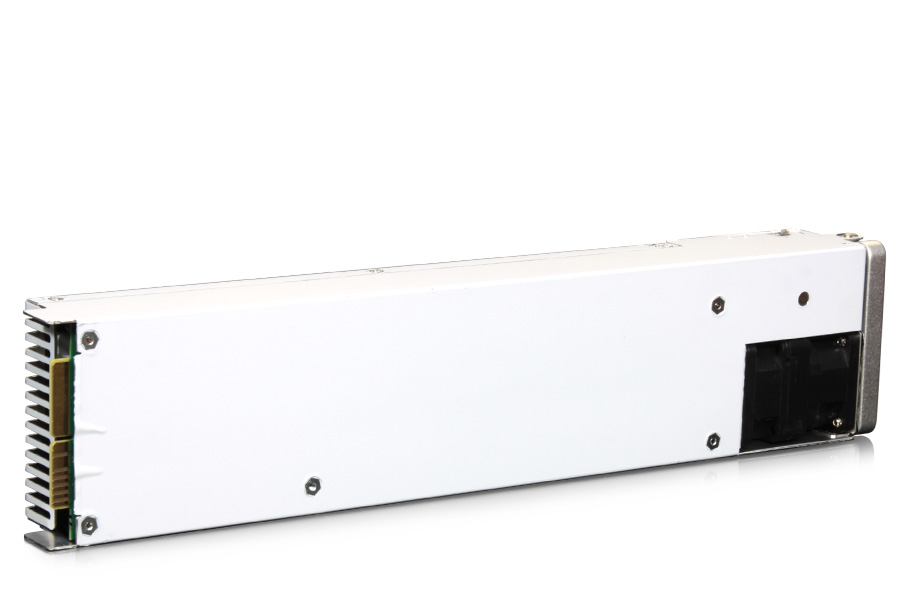

Supermicro PWS-920P-1R 920W 1U Redundant Power Supply
Supermicro
PWS-920P-1R
Server Products
Note: Image above may show a varied configuration or optional part.
Please refer to parts list for standard parts included.
Configure Options
No configuration menus found for this product.
Technical Specifications
Power Supply
TOTAL POWER OUTPUT
920W
TYPE
Module
FORM FACTOR
1U
DIMENSION (W X H X L)
76 x 40 x 346mm
+5V
N/A
+12V
75A
+3.3V
N/A
5V STANDBY
4A
INPUT VOLTAGE RANGE
100-240V
INPUT FREQUENCY RANGE
50-60Hz
INPUT CURRENT RANGE
11-4.4A
OUTPUT TYPE
Gold Finger (19 Pair Connector)
8PIN / 4PIN (12V) CONNECTOR
N/A
PFC
Yes
PMBUS
Yes
ENERGY EFFICIENCY
91% Peak
80 PLUS CERTIFICATION
80 Plus Platinum
WARRANTY
1 year warranty
PRODUCT ENVIRONMENTAL COMPLIANCE
RoHS and REACH compliant, details available upon request
