Home / Products / P2G5600V
$58.00
P2G5600V

P2G5600V (2 Pcs in Stock)

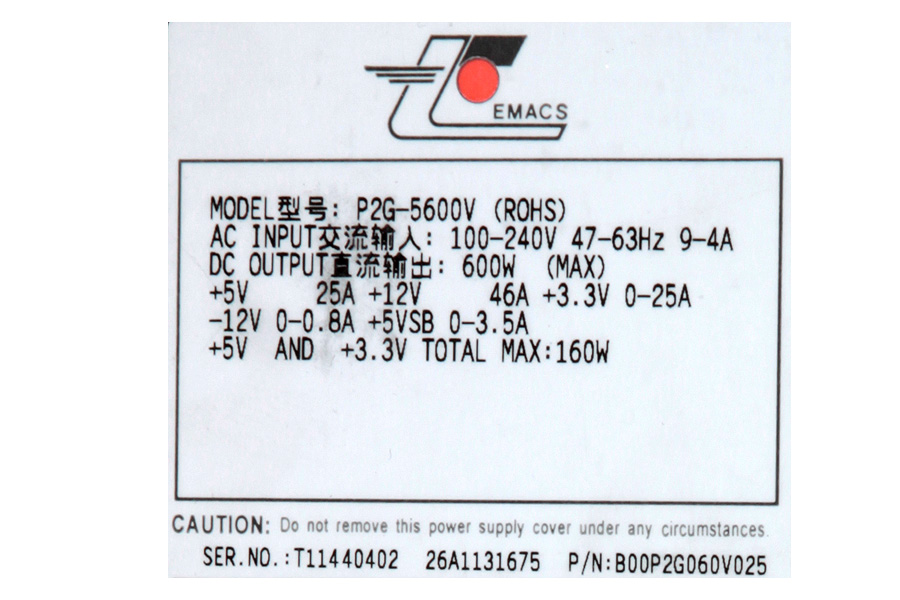

Zippy P2G5600V Single Power Supply

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 0.5 25 ±5% ±1% 60mV
+12V 0.5 46 ±5% ±1% 120mV
-12V 0 0.8 ±5% ±1% 120mV
+3.3V 0.5 25 ±5% ±1% 60mV
+5VSB 0 3.5 ±5% ±1% 60mV

TEMPERATURE RANGE: OPERATING 0℃ --- 50℃, STORAGE –20℃ --- 80℃
‧HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
‧EFFICIENCY: 80~84% TYPICAL AT 115V, FULL LOAD
‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
‧OVER POWER PROTECTION
‧OVER VOLTAGE PROTECTION
‧OVER CURRENT PROTECTOIN
‧SHORT CIRCUIT PROTECTION
‧EMI: FCC CLASS B, CISPR22 CLASS B
‧SAFETY: TO MEET UL, CUL, TV, CCC
‧3.3V / 5V / 12V REMOTE SENSING
‧COOLING: ONE 60mm DC FAN
‧DIMENSION: 240 (D) x 100 (W) x 70 (H) mm
‧MEET IEC-1000-3-2 CLASS D
