$602.00
WX-158

WX-158

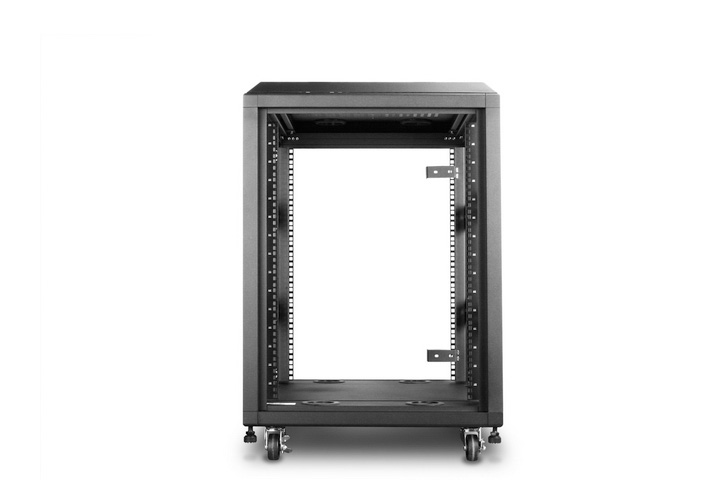

15U 4-Post 31.5" (800mm) Base Deep Open Frame Rack

  • Universal Fit Most of Rackmount Chassis and Equipment
  • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
  • Fit of Rack-mount Chassis
  • Optional Side Panels
  • Optional Front/Rear Doors
  • Locking Mechanism Design on Casters
  • Comes with M5 Mounting Screws and Cage Nuts

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Model Number:
WX-158

RoHS Compliance Version:
Yes

Form Factor:
15U

Material:
Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm

Color:
Black (RAL9011)

Loading Capacity:
2200 lbs

Supported Chassis Depth:
29" and under

Internal Dimensions:
Height: 27.25"
Depth: outer post-to-post 26.5" max

Dimensions (WxHxD):
23.50" x 35.25" x 31.50"
597 mm x 895 mm x 800 mm

Notes:
- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WX-158-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
- make sure sliding rails minimum mounting depth is within the cabinet's internal maximum mounting depth 26.5".
