Home / Products / SSE-G24-TG4
$1,899.00
SSE-G24-TG4

SSE-G24-TG4

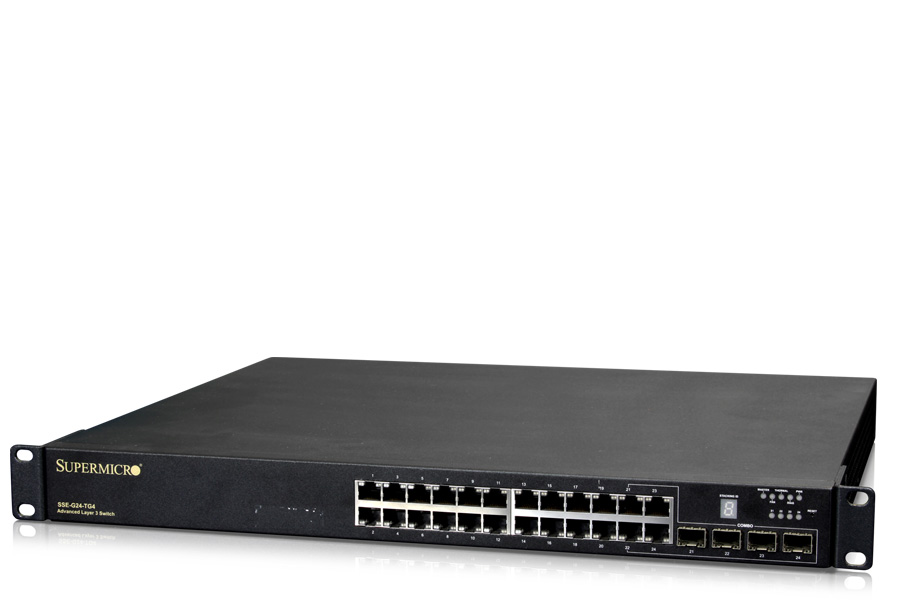

Supermicro SSE-G24-TG4 Layer 3 1/10Gigabit Ethernet Switch

  • Wire-speed Layer 3 Routing
  • 1:1 Non-blocking connectivity
  • 1U form factor for flexible installation

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Brand:
Supermicro

Model:
SSE-G24-TG4

Rack Unit:
1U

Form Factor:
Rack-mountable

Switching Features:
  • Link Aggregation - 24 groups w/ 8 members per group
  • LACP Support
  • Link Layer Discovery Protocol (802.1AB)
  • Jumbo Frame Support
  • Port Mirroring - N to 1. Tx & Rx Configurable

Routing Features:
  • Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3, BGP
  • IPv4 and IPv6 Routing
  • VRRP (Virtual Router Redundancy Protocol)
  • DVMRP (Distance Vector Multicast Routing Protocol)

Multicast:
  • IGMP Snooping v1/v2/v3
  • IGMP v1/v2/v3
  • PIM SM, PIM DM
  • PIM SMv6

Security:
  • 802.1x Port Based Authentication
  • Switch access password protection
  • Layer 2 / 3 / 4 Access control Lists
  • RADIUS and TACACS+ Authentication
  • SSH / SSL Encryption

Management:
  • Web-basd management interface - HTTP, HTTPS
  • Industry standard CLI with telnet, SSH or local management port
  • Scripting capability
  • Command completion
  • Context sensitive "Help"
  • Multiple levels of user privileges (CLI and Web UI)
  • SNMP v1/v2/v3
  • Four RMON Groups - (1, 2, 3 and 9)
  • Logging - syslog
  • Dual firmware images
  • Configuration file - upload / download

Options:
  • AOM-SSE-X2C: Two-port CX4 Connector Module for copper connections
  • AOM-SSE-X2F: Two-port XFP Connector Module for Fiber connections
  • AOM-SSE-X2S: Two-port SFP+ Connector Module for Copper or Fiber connections

Operating Conditions:
  • Operating temperature: 0 to 40°C
  • Power Consumption: 105 W


Dimension:
1.7"(H) x 17.3"(W) x 15.2"(D)
