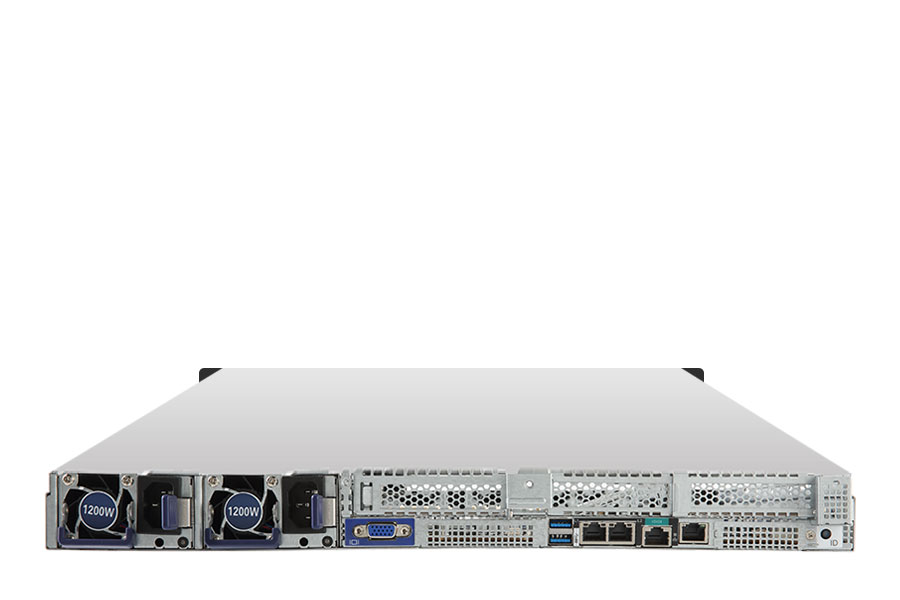

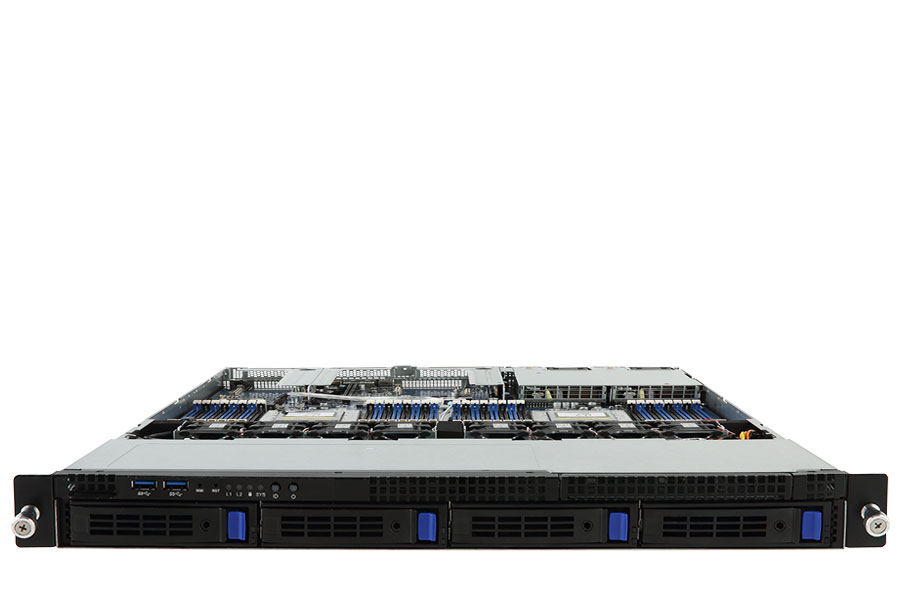

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Qty / Pick | Option | Price |
|---|---|---|
|
|
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
|
|
|
|
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
|
|
|
|
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
|
|
|
|
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
|
|
|
|
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
|
|
|
|
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
|
|
|
|
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
|
|
|
|
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
|
|
|
|
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*No Network Card
|
|
|
|
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
|
|
|
|
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
|
|
|
|
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
|
|
|
|
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
|
|
|
|
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
|
|
|
|
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
|
|
|
|
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
|
|
|
|
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
|
|
|
|
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
|
|
|
|
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
|
|
|
|
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
|
|
|
|
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
|
|
|
|
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
|
|
|
|
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
|
|
|
|
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
|
|
|
|
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*Please contact our sales for more operating system options
|
|
|
|
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
|
|
|
|
Microsoft Windows Server 2025 Standard 64-bit-1User
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*1 Year Parts Replacement Warranty
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $500 to $2000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value Over $10000
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*No CD-ROM
|
|
|
|
Slim Internal DVD-RW
|
| Processor | AMD EPYC™ 7002 series processor family
Dual processors, 14nm, Socket SP3 Up to 32-core, 64 threads per processor TDP up to 180W |
|---|---|
| Memory | 32 x DIMM slots
DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 32GB supported LRDIMM / NVDIMM modules up to 64GB supported Memory speed: 2667(1DPC)/2400/2133 MHz Note: Memory speed run at 2133MHz when 1R/2R memory modules are fully populated |
| Chassis | 1U Rackmount Chassis
|
| Dimensions | Chassis Dimensions:
438mm(W) x 43.5mm(H) x 710mm(D) |
| Drive Bays | 4 x 3.5" hot-swappable HDD bays
2.5" HDD/SSD supported NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
|
| Expansion Slots | Riser Card CRS1021:
2x PCIe x8 slots (Gen3 x8), Low profile half-length Riser Card CRS1015:
1x PCIe x16 slot (Gen3 x16), Low profile half-length 2x OCP mezzanine slots with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
1x M.2 slot:
M-key PCIe Gen3 x4 Supports NGFF-2242/2260/2280 cards |
| Power Supply | 2x 1200W redundant PSUs
80 PLUS Platinum AC input:
100-240V/ 12-7A, 50-60Hz 200-240V/ 7A, 50-60Hz DC output:
1200W 12V, 80.5A (100-240V) 12V, 97A (200-240V) 12Vsb, 3A |
| Onboard Devices | LAN:
2x 1GbE LAN ports (1x Intel® I350-AT2) 1x 10/100/1000 management LAN Video: Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Input / Output | Internal I/O:
1x 14-pin ATX main power connector 3x 4-pin ATX main power connector 3x 8-pin ATX 12V power connectors 1x 6-pin ATX 12V power connectors 6x SlimSAS connectors 1x M.2 slot 2x CPU fan headers 1x USB 3.0 header 1x TPM header 5x PCIe expansion slots 2x OCP mezzanine slots 2x Power supply connectors 1x Front panel header 1x Back plane board header 1x PMBus connector 1x IPMB connector 1x Clear CMOS jumper 1x BIOS recovery jumper Front I/O: 2x USB 3.0 1x Power button with LED 1x ID button with LED 1x NMI button 1x Reset button 2x LAN activity LEDs 1x HDD activity LED 1x System status LED Rear I/O: 2x USB 3.0 1x VGA 1x COM (RJ45 type) 2x RJ45 1x MLAN 1x ID button with LED Backplane I/O: Backplane P/N: 9CBP1042NR-00 Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s |
| Cooling | 8x 40x40x56mm fans
|
| Optical Drive | 1 x Slim type ODD in option
|
| Operating Environment | Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Detailed Specification | TPM:
1x TPM header Optional TPM2.0 kit: CTM000 System Management:
Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface: Network settings Network security settings Hardware information Users control Services settings IPMI settings Sessions control LDAP settings Power control Fan profiles Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (HTML5) |
