Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Qty / Pick | Option | Price |
|---|---|---|
|
|
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
|
|
|
|
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
|
|
|
|
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
|
|
|
|
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
|
|
|
|
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
|
|
|
|
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
|
|
|
|
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
|
|
|
|
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
|
|
|
|
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
|
|
|
|
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
|
|
|
|
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
|
|
|
|
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
|
|
|
|
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
|
|
|
|
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
|
|
|
|
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
|
|
|
|
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
|
|
|
|
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
|
|
|
|
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
|
|
|
|
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
|
|
|
|
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
|
|
|
|
Samsung SM883 2.5" SATA III SSD 480GB
|
|
|
|
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
|
|
|
|
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
|
|
|
|
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
|
|
|
|
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
|
|
|
|
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
|
|
|
|
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
|
|
|
|
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
|
|
|
|
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
|
|
|
|
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
|
|
|
|
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
|
|
|
|
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
|
|
|
|
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*No Network Card
|
|
|
|
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
|
|
|
|
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
|
|
|
|
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
|
|
|
|
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
|
|
|
|
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
|
|
|
|
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
|
|
|
|
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
|
|
|
|
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
|
|
|
|
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
|
|
|
|
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
|
|
|
|
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
|
|
|
|
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
|
|
|
|
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
|
|
|
|
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
|
|
|
|
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
|
|
|
|
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
|
|
|
|
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
|
|
|
|
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
|
|
|
|
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
|
|
|
|
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
|
|
|
|
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*Please contact our sales for more operating system options
|
|
|
|
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
|
|
|
|
Microsoft Windows Server 2025 Standard 64-bit-1User
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*1 Year Parts Replacement Warranty
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $500 to $2000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value Over $10000
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*NO RAID Controller Card
|
|
|
|
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
|
|
|
|
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
|
|
|
|
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
|
|
|
|
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
|
|
|
|
Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card
|
|
|
|
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
|
|
|
|
Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card
|
|
|
|
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
|
| Processor | AMD EPYC™ 7002 series processor family
Single processor, 14nm, Socket SP3 Up to 32-core, 64 threads TDP up to 180W |
|---|---|
| Memory | 16x DIMM slots
DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported Memory speed: 2667(1DPC)/2400/2133* MHz Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated |
| Chassis | 2U Rackmount Chassis
|
| Dimensions | 430mm(W) x 87mm(H) x 710mm(D)
|

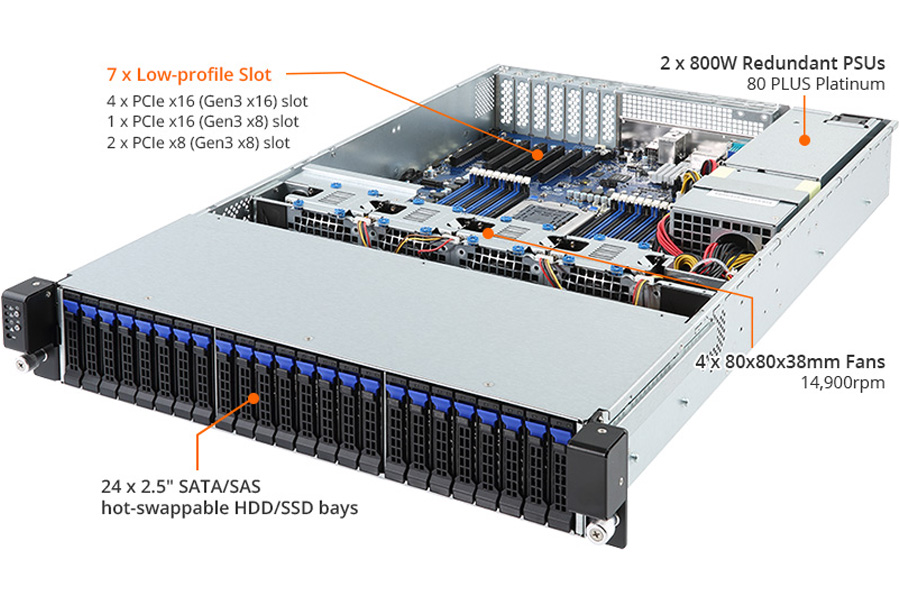

| Drive Bays | 24x 2.5" SATA/SAS hot-swappable HDD/SSD bays
Default configuration supports: 16x SAS/SATA drives SAS card is required to enable other drive bays |
| Expansion Slots | Slot_7: 1x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1x PCIe x16 (Gen3 x16 bus) slot Slot_5: 1x PCIe x16 (Gen3 x8 bus) slot Slot_4: 1x PCIe x16 (Gen3 x16 bus) slot Slot_3: 1x PCIe x16 (Gen3 x16 bus) slot Slot_2: 1x PCIe x8 (Gen3 x8 bus) slot Slot_1: 1x PCIe x16 (Gen3 x16 bus) slot All PCIe slots support low profile HBAs |
| Power Supply | 2x 800W redundant PSUs
80 PLUS Platinum AC input:
100-240V, 50-60Hz, 10-4A DC input:
240Vdc, 4.5A DC output:
800W |
| Onboard Devices | LAN:
2x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S) 1x 10/100/1000 management LAN Video:
Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Input / Output | Internal I/O:
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 4x SlimSAS connectors 1x M.2 slot 2x CPU fan headers 5x System fan headers 1x USB 3.0 header 1x USB 2.0 header 1x COM_2 header 1x TPM header 1x Front panel header 2x LAN activity LED 1x HDD back plane board header 1x PMBus connector 1x IPMB connector 1x Clear CMOS jumper 1x BIOS recovery jumper 1x Buzzer Front I/O:
1x Power button with LED 1x ID button with LED 1x Reset button 1x System status LED 1x HDD activity LED 2x LAN activity LEDs Rear I/O:

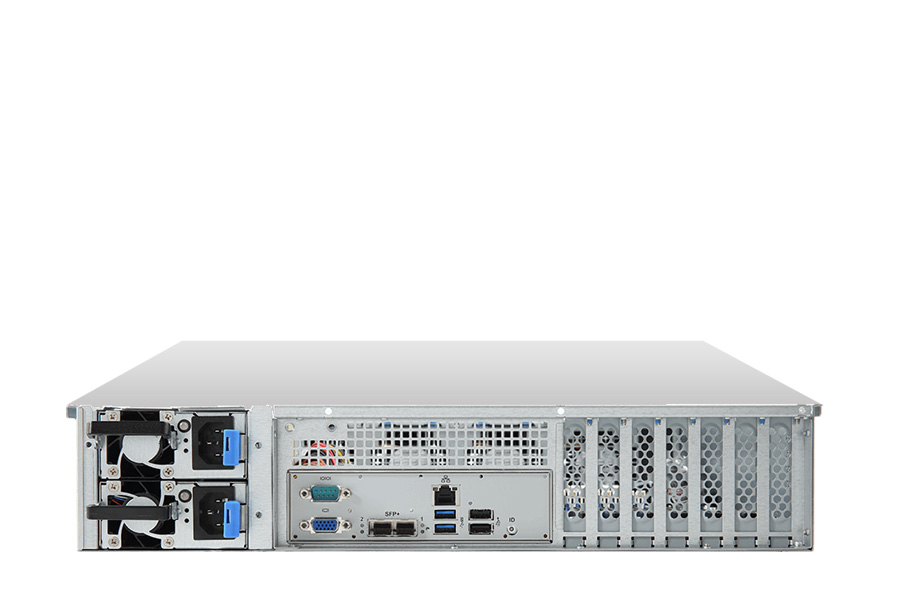

2x USB 3.0 2x USB 2.0 1x VGA 1x COM_1 2x SFP+ 1x MLAN 1x ID button with LED Backplane I/O:
Backplane P/N: 5CBP20O1NR-00 Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s |
| Cooling | 4x 80x80x38mm fans
|
| Operating Environment | Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Detailed Specification | TPM:
1x TPM header with LPC interface Optional TPM2.0 kit: CTM000 System Management:
Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface: Network settings Network security settings Hardware information Users control Services settings IPMI settings Sessions control LDAP settings Power control Fan profiles Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (HTML5) |
