Home / Products / 5029C-T
$672.00
5029C-T

5029C-T

Supermicro 4Bays Single Processor Mini-tower Server

  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
  • Intel® C242 chipset
  • Up to 64GB ECC UDIMM, up to DDR4-2666MHz; 2 DIMM slots
  • 1x PCI-E 3.0 x16 slot (for LP AOC)
  • 4x Hot-swap 3.5" drive bays with BPN, 2x fixed 2.5" drive bays, 1x optional slim DVD-ROM bay
  • M.2 Interface: 1x PCI-E 3.0 x4 or SATA 3.0, M.2 Form Factor: 2280, M.2 Key: M-Key
  • 2x GbE LAN ports, 1x dedicated IPMI LAN
  • 2x USB 3.1 Gen1 (front), 2x USB 3.1 Gen1 (rear), 2x USB 2.0 (rear)
  • 1x VGA, 1x COM, 1x TPM
  • 250W Bronze Level power supply
  • File server/ Entry Storage, Local Cloud and Web Hosting, Mainstream, Compact

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
No options configured for this category.
MEMORY ▼
No options configured for this category.
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
(Optional) Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
*No Hard Drive
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Technical Specifications

Processor
CPU:
Single Socket H4 (LGA 1151),
CPU TDP support up to 80W
Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores:
6 cores, 12 threads
Memory
Memory Capacity:
2x DIMM slots
Up to 64GB ECC UDIMM
Up to DDR4-2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
32GB, 16GB, 8GB, 4GB
Note:
Future support for 64GB via BIOS update expected in early 2019
Chassis
Mini Tower Chassis

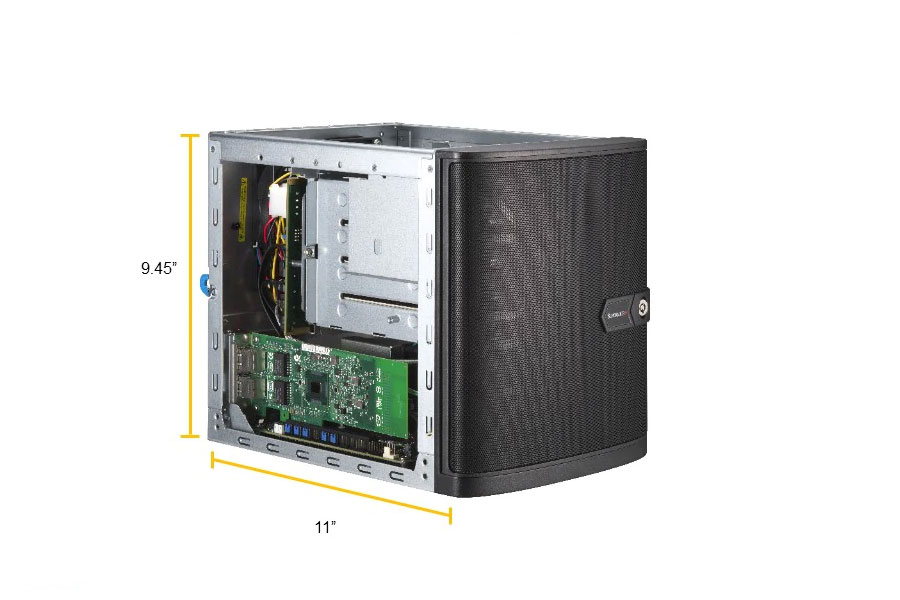

Dimensions
Height:
9.45" (240mm)
Width:
8.27" (210mm)
Depth:
11" (279mm)
Drive Bays
HDD:
4x Hot-swap 3.5" drive bays with BPN
2x internal 2.5" drive bays
Peripheral:
1x optional slim DVD-ROM bay
Expansion Slots
1 PCI-E 3.0 x16 slot, for low-profile AOC
Power Supply
250W Flex ATX Multi-output Bronze Power Supply
AC Voltage:
100 - 240V, 50 - 60Hz
+5V:
Max:14 Amp; Min:0.5 Amp
+12V:
Max:18 Amp; Min:1 Amp @100V-240V
-12V:
Max: 0.3 Amp
+3.3V:
Max: 12 Amp Min: 0.3Amp
5VSB:
Max: 2.5 Amp
Certification:
80 PLUS
Onboard Devices
Chipset:
Intel® C242 chipset
SATA:
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
IPMI:
ASPEED AST2500
Network Controllers:
Dual LAN with Intel® I210-AT
Video:
ASPEED AST2500 BMC
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Ports:
2x USB 3.1 Gen1 ports
Input / Output
SATA:
4x SATA3 (6Gbps) ports
LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.1 Gen1 (front)
2x USB 3.1 Gen1 (rear)
2x USB 2.0 (rear)
Video:
1x VGA port
Serial Port / Header:
1x COM port
DOM:
SATA DOM (Disk on Module) power connector support
TPM:
1x TPM 2.0 Header
BIOS
BIOS Type:
UEFI 256Mb
BIOS Features:
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
PCI F/W 3.0
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   20% to 95% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Detailed Specification
Software:
SuperDoctor® 5
Watch Dog
Non-maskable Interrupt (NMI)
Chassis intrusion detection
