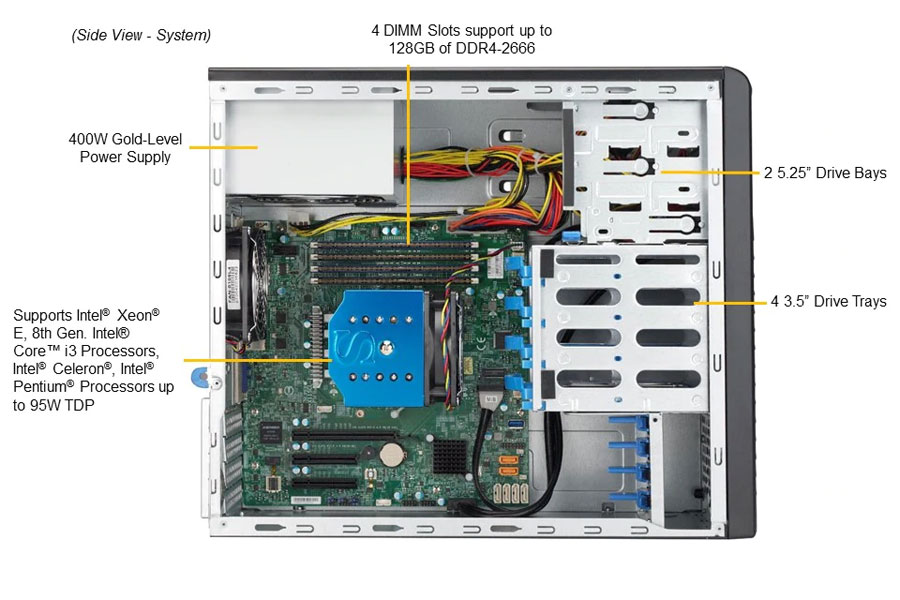

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Single Socket H4 (LGA 1151),
CPU TDP support up to 95W Support Intel® Xeon® E processors, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium® |
|---|---|
| Memory | Memory Capacity:
4 DIMM slots Up to 128GB ECC UDIMM Up to DDR4-2666MHz Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM DIMM Sizes: 32GB, 16GB, 8GB Note: Future support for 128GB via BIOS update expected in early 2019 |
| Chassis | Mid-Tower Chassis
|

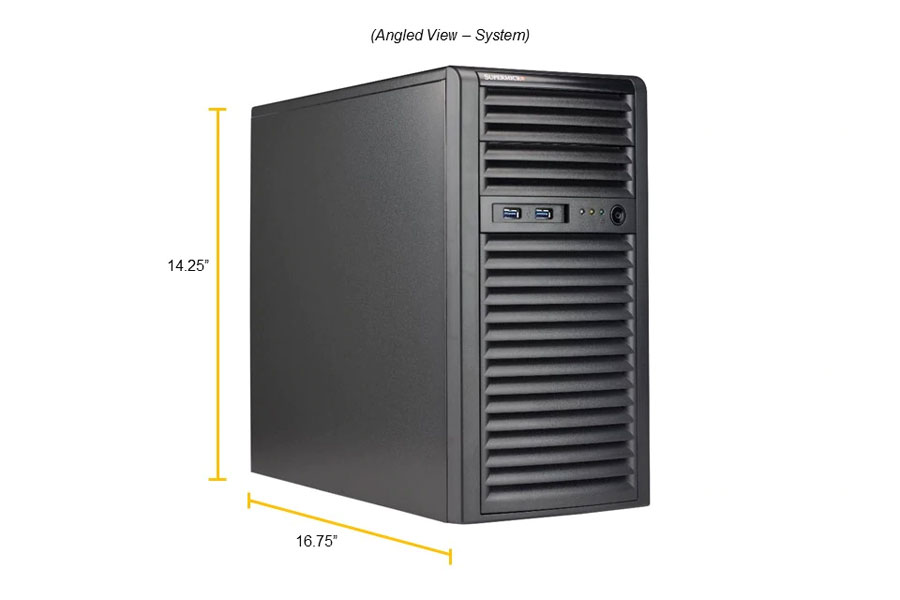

| Dimensions | Height:
14.25" (362mm) Width: 7.25" (184mm) Depth: 16.75" (425mm) |
| Drive Bays | Internal:
4x Fixed 3.5" drive bays Peripheral: 2x External 5.25" Peripheral bays |
| Expansion Slots | PCI-Express:
1x PCI-E 3.0 x8 (in x16) slot 2x PCI-E 3.0 x4 (in x8) slots M.2: M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 22110/2280 M.2 Key: M-Key |
| Power Supply | Super quiet operation with 12cm cooling fan and 80plus gold certification
Total Output Power and Input: 400W with Input 100 - 240Vac AC Input Frequency: 50-60Hz Dimensions (L x W x H): 140 x 150 x 86 mm -12V: Max: 0.3A +12V: 18A +5V: Max: 22A +3.3V: Max: 24A +5V standby: Max: 3A Certification: 80 PLUS Gold Certified |
| Onboard Devices | Chipset:
Intel® C242 chipset SATA: SATA3 (6Gbps) via Intel C242 controller RAID 0, 1, 5, 10 support Network Controllers: Dual LAN with Intel® I210-AT |

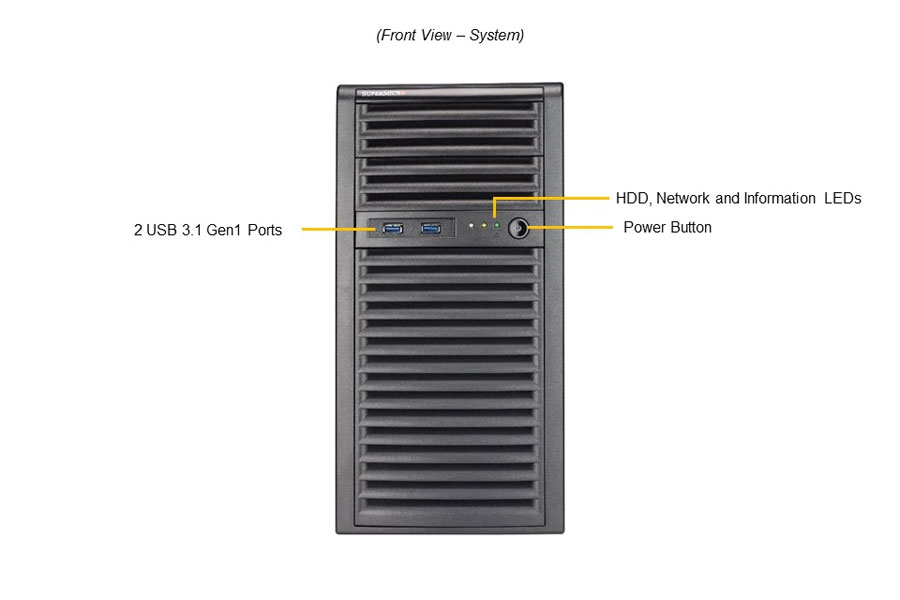

| Front Panel | Buttons:
Power On/Off button LEDs: Power LED Hard drive activity LED Network activity LED System Information LED Ports: 2 USB 3.1 Gen 1 ports |
| Input / Output | SATA:
6x SATA3 (6Gbps) ports LAN: 2x RJ45 Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB: 2x USB 3.1 (front) 2x USB 3.1 (rear) 2x USB 2.0 (rear) Video: 1x VGA port Serial Port / Header: 1x COM port TPM: 1x TPM 2.0 Header |
| Cooling | 1x 9cm (rear) PWM fan w/ tool-less design
Optional 1x 8cm (front) cooling fan |
| BIOS | BIOS Type:
UEFI 256Mb BIOS Features: ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup PCI F/W 3.0 |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 20% to 95% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Detailed Specification | Software:
SuperDoctor® 5 Watch Dog Non-maskable Interrupt (NMI) |
