Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Single Socket H4 (LGA 1151), CPU TDP support up to 95W Support Intel® Xeon® E processors, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium® Core/Cache: Up to 6-Cores |
|---|---|
| Memory | Memory Capacity:
4 DIMM slots Up to 64GB ECC/non-ECC UDIMM Up to DDR4-2666MHz Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM DIMM Sizes: 64GB, 32GB, 16GB, 8GB |
| Chassis | Mid-Tower Chassis
|

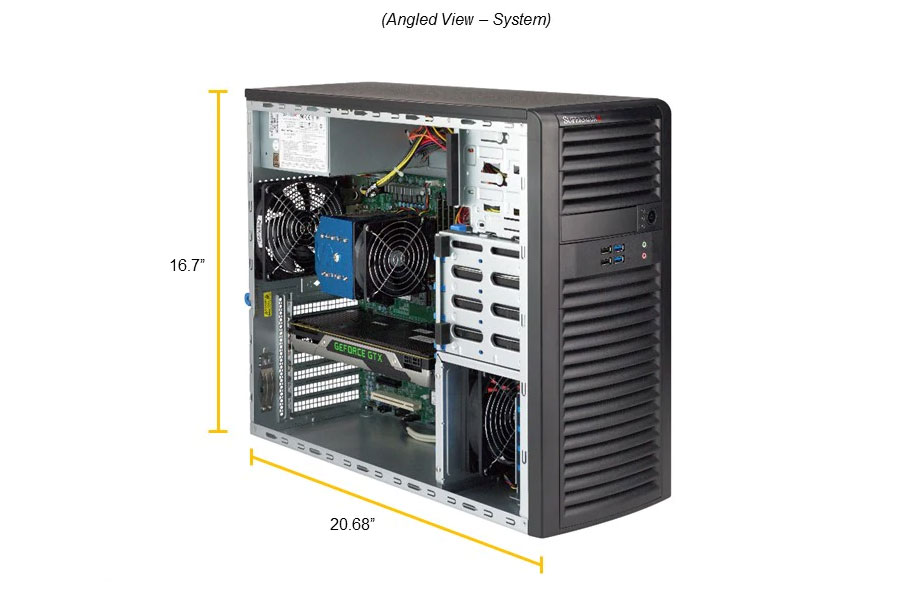

| Dimensions | Height:
16.7" (424mm) Width: 7.6" (193mm) Depth: 20.68" (525.3mm) |
| Drive Bays | Internal:
4x Fixed 3.5" drive bays Optional 4x internal 2.5" drive bays Enterprise SATA HDD only recommended Peripheral: 2x Standard 5.25" Peripheral drive bays 1x Internal 3.5" Fixed device bay |
| Expansion Slots | PCI-Express:
2x PCI-E 3.0 x16 running at NA/16 or 8/8 1x PCI-E 3.0 x4 slot 1x PCI-E 3.0 x1 slot 1x PCI 32bit 5V slot M.2: M.2 Interface: 2x PCI-E 3.0 x4 M.2 Form Factor: 2260/ 2280/ 22110 M.2 Key: M-Key (RAID 0,1 support) U.2 Interface: 1x PCI-E 3.0 x4 (Shared with M.2#2) |
| Power Supply | 500W AC power supply w/ PFC
AC Voltage: 100 - 240V, 50-60Hz, 7-3.5 Amp +5V: 20 Amp +5V standby: 3 Amp +12V1: 17 Amp +12V2: 17 Amp +12V3: 17 Amp +12V4: 18 Amp -12V: 0.5 Amp +3.3V: 15 Amp Certification: Bronze Level Bronze Certified |
| Onboard Devices | Chipset:
Intel® C246 chipset
SATA:
SATA3 (6Gbps) via Intel C246 controller
RAID 0, 1, 5, 10 support
Network Controllers
Single LAN with Intel® I210-AT
Single LAN with Intel® PHY I219LM
|

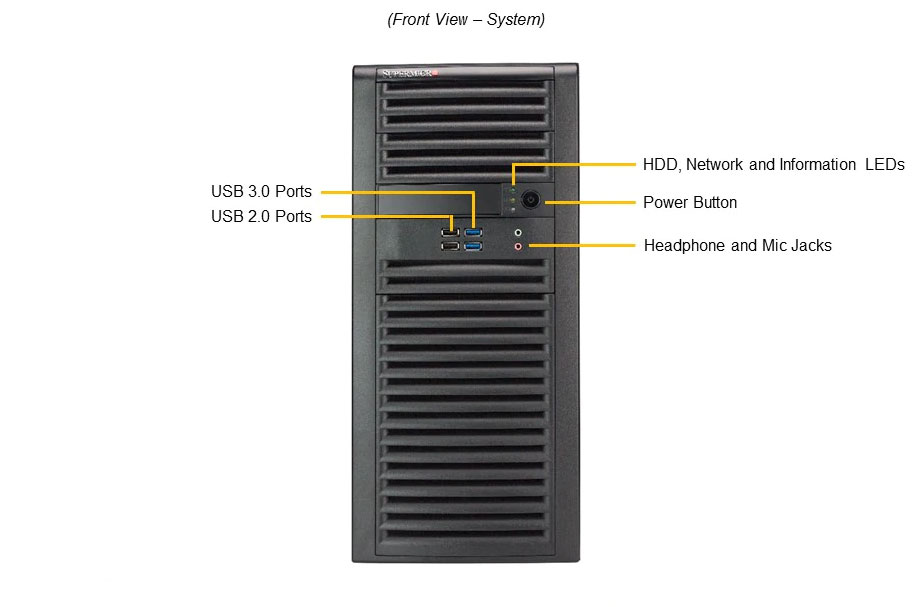

| Front Panel | Buttons:
Power On/Off button LEDs: Power LED Hard drive activity LED Network activity LED System Information LED Ports: 2x USB 2.0 ports, 2x USB 3.1 Gen 1x ports 1x Line-out, 1 Mic-in |

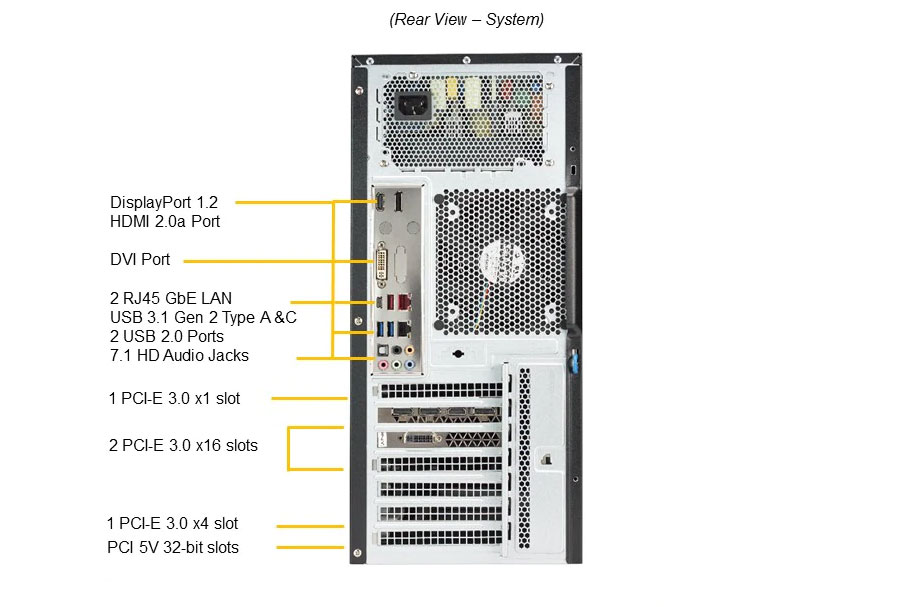

| Input / Output | SATA:
8x SATA3 (6Gbps) ports from Intel® C246 LAN: 2x RJ45 Ethernet LAN ports USB: 2x USB 3.1 Gen 2 Type A and Type C (rear) 4x USB 3.1 Gen 1 (2x rear + 2x front) 2x USB 2.0 (front) Video: 1x HDMI (2.0a) port 1x DVI-D port, 1 DisplayPort 1.2 port Audio: 7.1 HD Jacks Serial Port / Header: 1x COM port (header) TPM: 1x TPM 2.0 Header |
| Cooling | 1x 12cm rear exhaust fan
Optional 1x 12cm front cooling fan |
| BIOS | BIOS Type:
UEFI 256Mb BIOS Features: ACPI 3.0 or later SMBIOS 2.7 or later SPI dual/quad speed support RTC wakeup |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Detailed Specification | PC Health Monitoring
CPU:
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
4+2-Phase-switching voltage regulator
FAN:
Low noise fan speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 5x 4-pin fan connectors
PECI
|
