$1,599.00
1ES0359

1ES0359

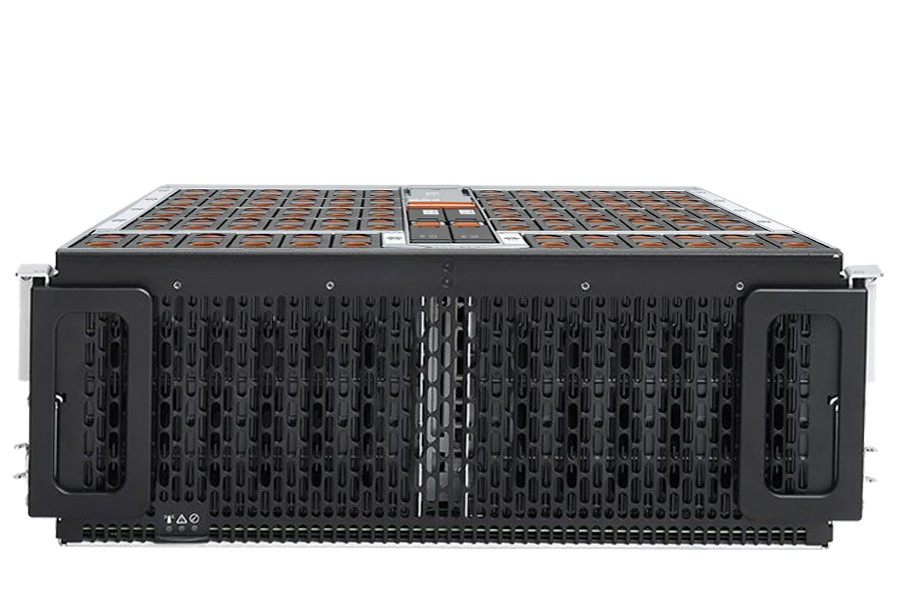

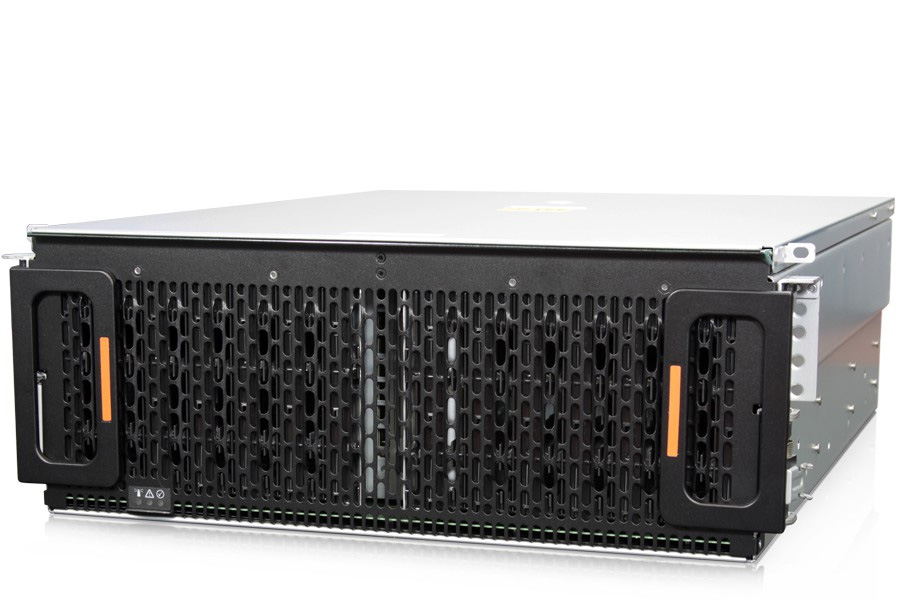

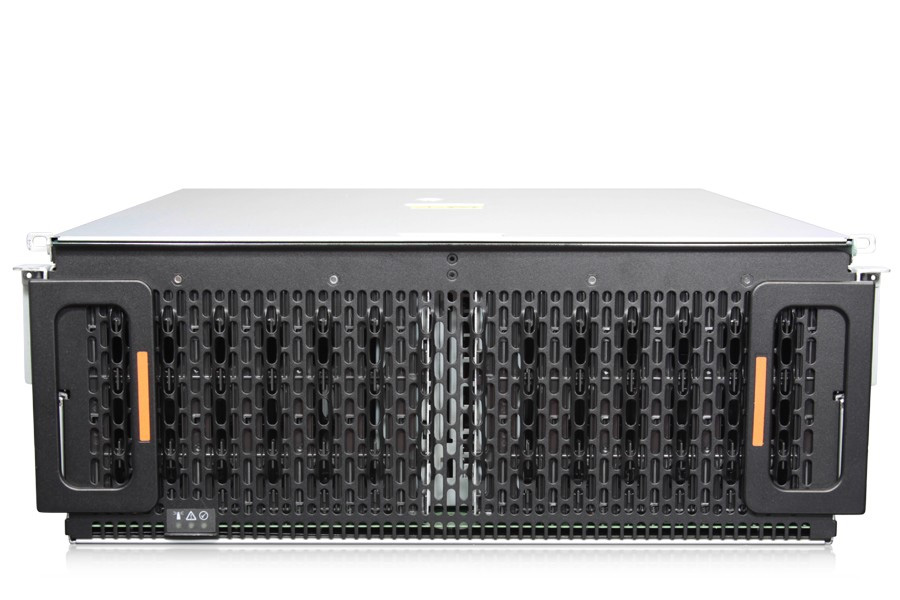

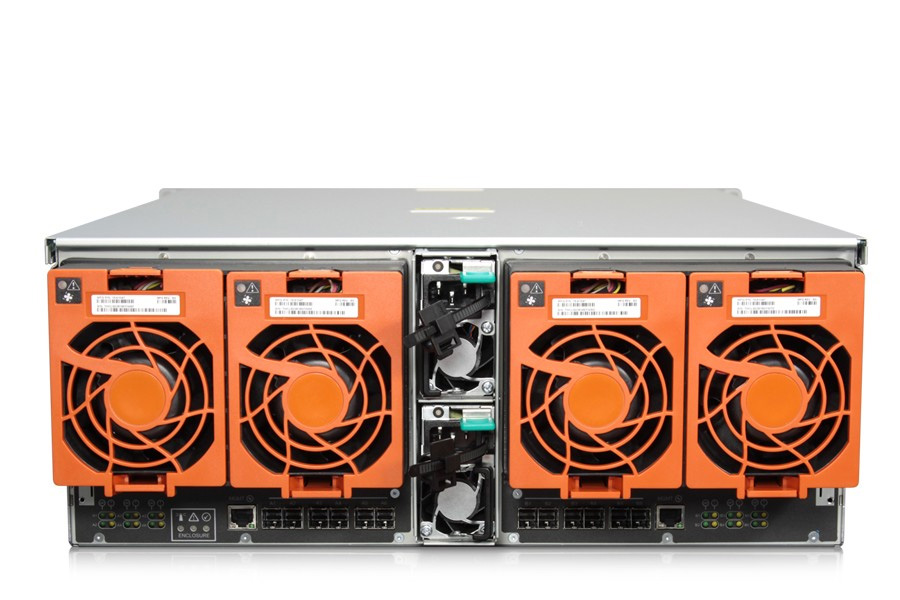

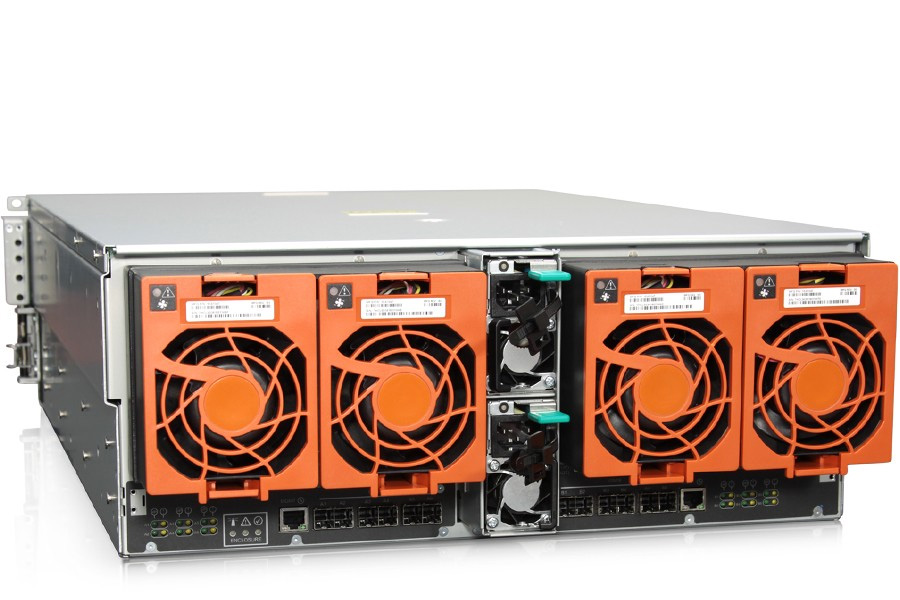

HGST 4U 60Bays G3 28" Depth High Density JBOD (No Hard Drive inside) Open Box

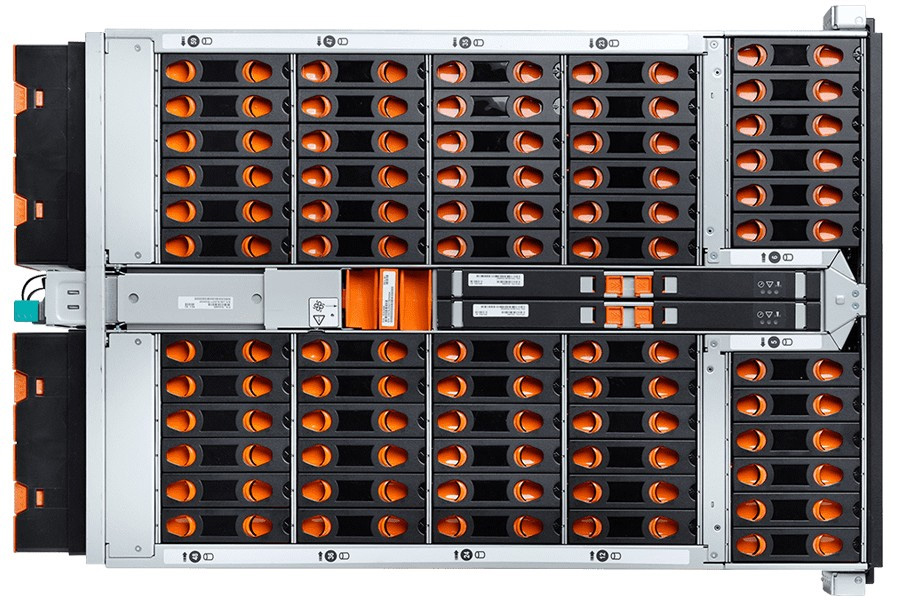

  • 60x HDD Bays,Up to 720TB of raw storage in 4U
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Up to 12 x 12Gb/s SAS3 host connections
  • Patented IsoVibe technology ensures maximum performance even in heavy workloads

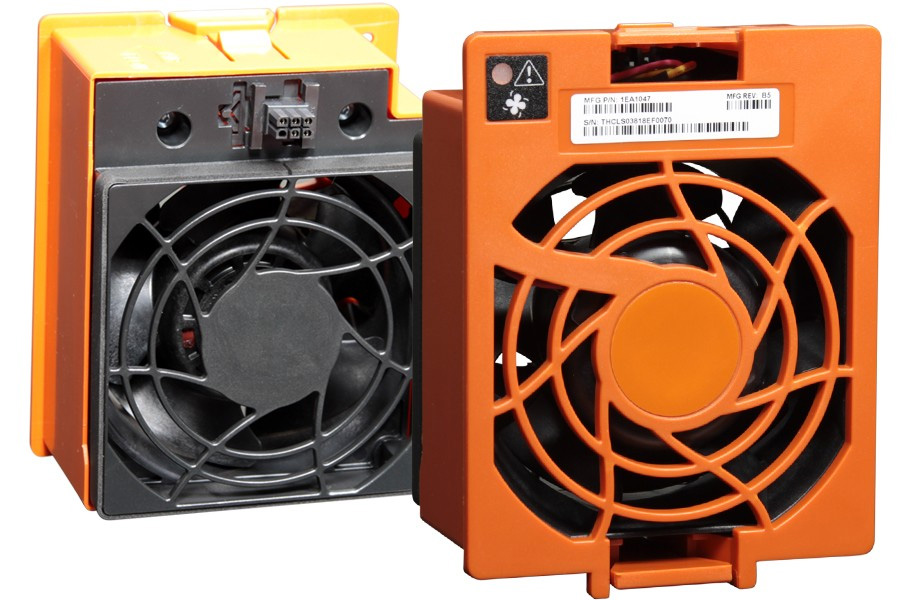

  • Enterprise-grade redundant and hot-swappable PSUs, IO Modules and fans
  • Improved cooling from innovative, patented ArcticFlow technology
  • Rack-mounted top cover for quick and easy service
  • 4U with 28" Depth, 220V

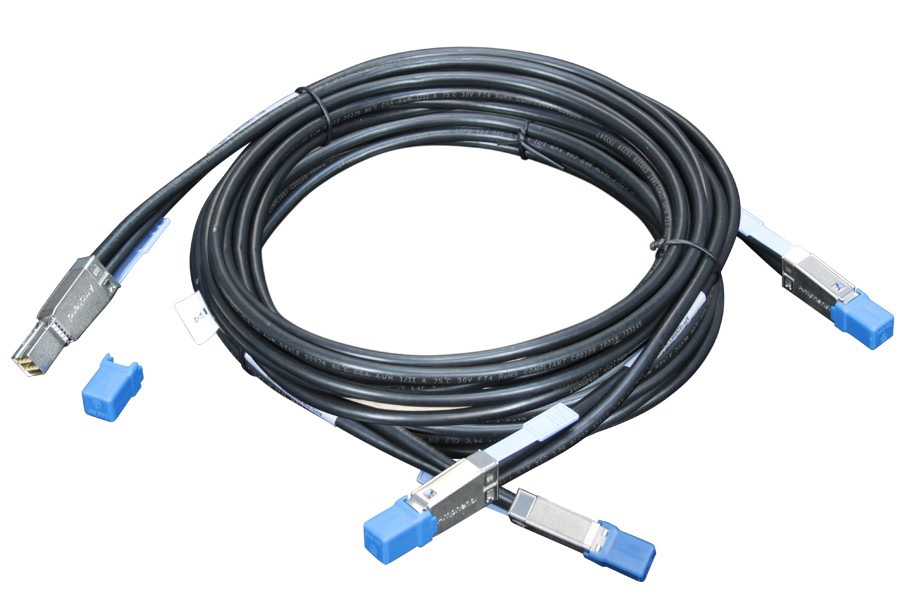

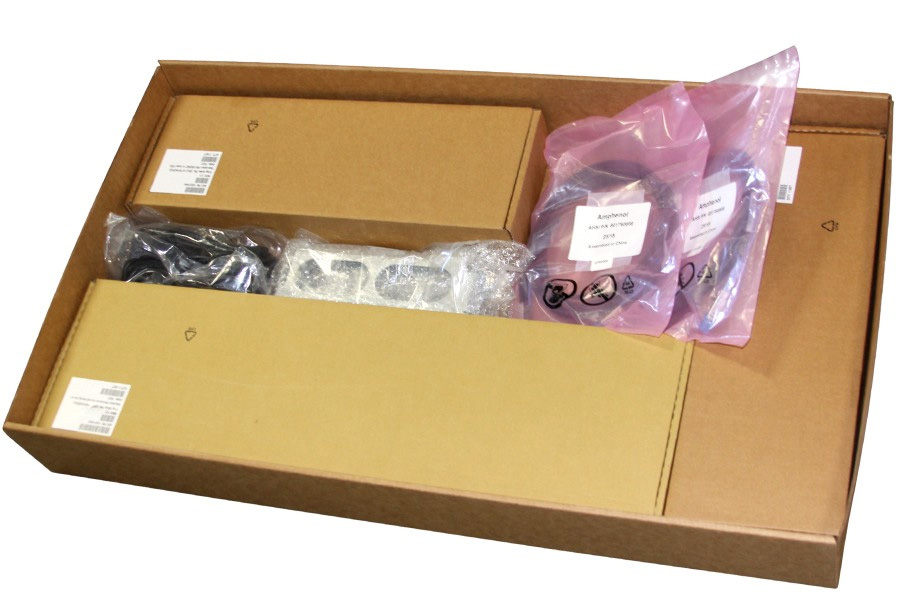

Come with 2x SFF8644 to SFF8644 mini SAS cables for host

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
General
Device Type:  Storage enclosure
Enclosure Type:  Rack-mountable - 4U

Chassis
Installed Devices / Modules Qty:  60
Supported Devices / Modules Qty:  60
Supported Drives:  SAS-3

Storage  (No Hard Drive inside)
Total Array Capacity:  720 TB
Max Supported Capacity:  720 TB

Hard Drive  (No Hard Drive inside)
Type:  HDD - hot-swap

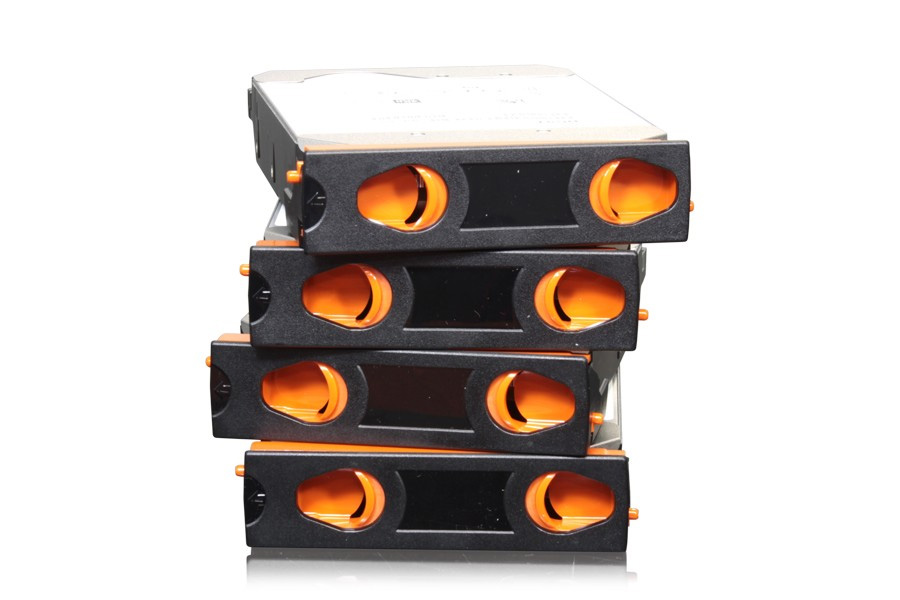

Capacity:  60x 3.5" HDD Bays
Interface Type:  SAS 12Gb/s
Features:  Instant Secure Erase (ISE), 4Kn Crypto

Expansion / Connectivity
Expansion Bays:  60 (total) / 0 (free) x hot-swap - 3.5"
Interfaces:  12 x SAS 12Gb/s - Mini SAS HD (SFF-8643)

Miscellaneous
Features:  SCSI Enclosure Services 3 (SES3)

Power

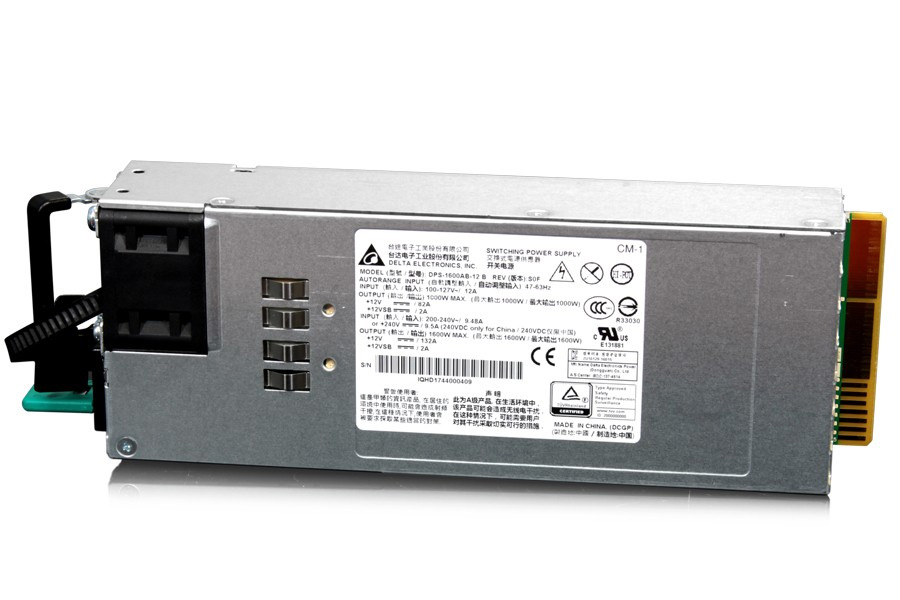

Power Device:  2 x internal power supply - hot-plug
Power Redundancy:  Yes
Power Redundancy Scheme:  1+1
Voltage Required:  AC 230 V - 50/60 Hz
Power Provided:  1600 Watt
80 PLUS Certification:  80 PLUS Platinum

Dimensions
Width:  17.6"
Depth:  28"
Height:  6.9"

Environmental Parameters
Min Operating Temperature:  41 °F
Max Operating Temperature:  104 °F
Humidity Range Operating:  5 - 85% (non-condensing)
Sound Emission:  72 dBA

Condition:
Open Box
