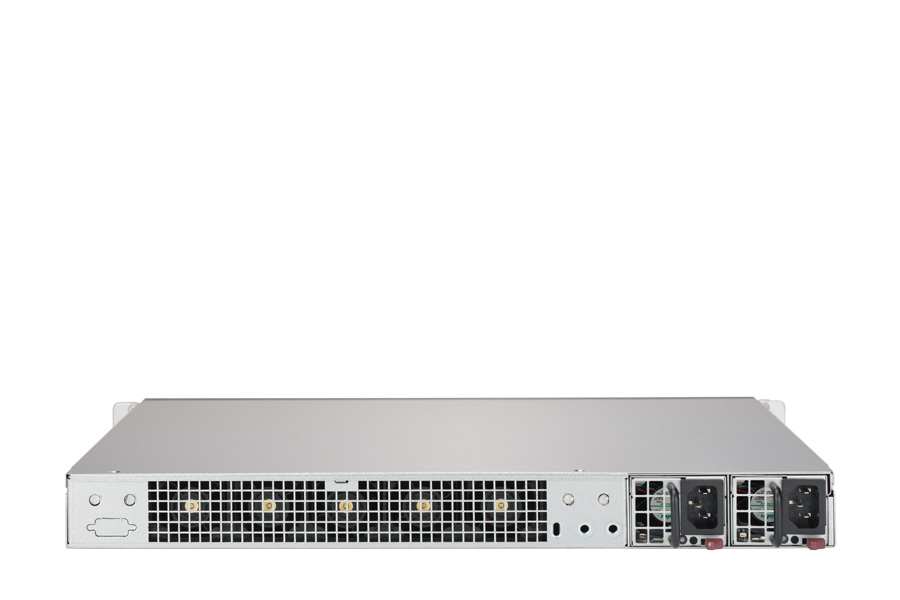

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Intel® Xeon® processor D-2146NT, CPU TDP support 80W Cores / Cache: 8 Cores, 16 Threads |
|---|---|
| Memory | Memory Capacity:
Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC RDIMM 4 DIMM slots Memory Type: 2666/2400/2133MHz ECC DDR4 L/RDIMM Operating speed up to 2133MHz DIMM Sizes: 128GB, 64GB, 32GB, 16GB Memory Voltage: 1.2 V |
| Chassis | 1U rackmount Chassis
|
| Dimensions | Height:
1.7" (43mm) Width: 17.2" (437mm) Depth: 15" (381mm) |
| Drive Bays | Hot-swap:
2x 2.5" drive bays (one drive space shares with M.2) Others: 2 EDSFF |
| Expansion Slots | PCI-Express:
4 PCI-E 3.0 x8 slots for AIOM (AIOM is sold separately, it is not included in this standard/barebone system) M.2: 2 M.2 M-Key 2280/22110 (space share with one 2.5" drive bay) 1 M.2 E-Key 2230 1 M.2 B-Key 3042 |
| Power Supply | 400W 1U Redundant Power Supplies with PMbus
Total Output Power: 400W Dimension (W x H x L): 54.5 x 40 x 220 mm Input: 100 - 240Vac / 6.0 - 3.0A / 50-60Hz 200 - 240Vdc / 3.4 - 3.2A (CCC Only) +12V: Max: 33A / Min: 0.5A +5V sb: Max: 3A / Min: 0A Output Type: Gold Finger Connector Mating with Molex 45984-4343 Certification: Platinum Level Certified |
| Onboard Devices | Chipset:
System on Chip (SoC) SATA: SATA3 (6Gbps) ports via SoC controller Network Controllers: Dual 10G SFP+ via SoC Dual 10GBase-T (share with IPMI) IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video: VGA via BMC |
| Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED Network activity LEDs System Information LED |
| Input / Output | SATA:
2 SATA3 (6Gbps) ports LAN: 2 RJ45 10GbE LAN ports (shared with IPMI) 2 10G SFP+ LAN ports 1 Ethernet Management port USB: 2 USB 3.0 ports (front) Video: 1 VGA port Serial Port / Header: 1 COM via RJ45 or Micro USB |
| Cooling | 5x 40x40x56 mm 13K-11K RPM Counter-rotating Fans
|
| BIOS | BIOS Type:
128Mb SPI Flash with AMI BIOS |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 0°C to 45°C (32°F to 113°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Detailed Specification | Software:
Intel® Node Manager IPMI 2.0 NMI SUM Watch Dog SuperDoctor® 5 |
