1013S-MTR

1013S-MTR

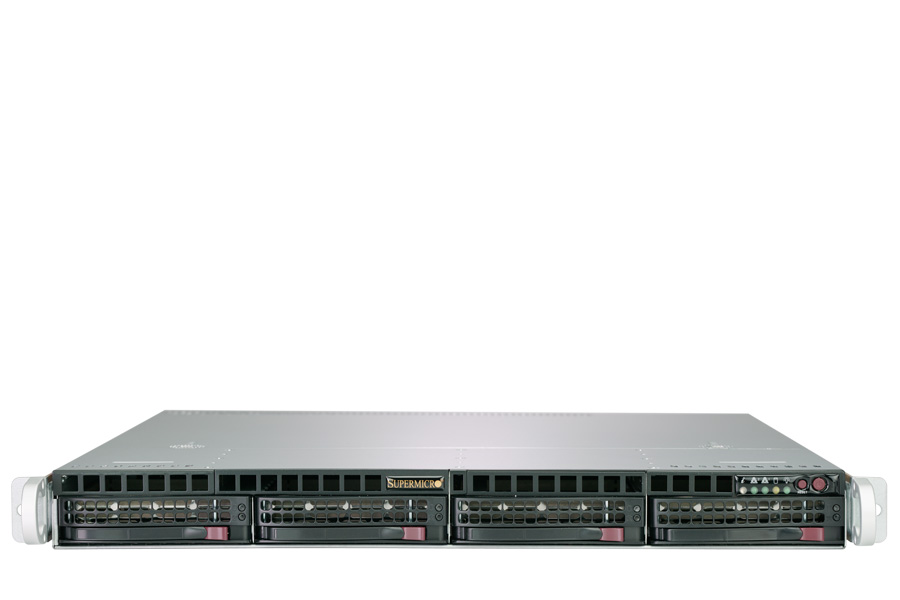

Supermicro 1U 4Bays Single Processor AMD Rackmount Server

  • Single AMD EPYC™ 7002-Series Processor
  • 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
    2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    (Board revision 2.x required)
  • 1x PCI-E 3.0 x16 (FH/HL) slot
  • Integrated IPMI 2.0 + KVM with dedicated LAN
  • 2x 1GbE LAN ports via Intel® I210
  • 4x hot-swap 3.5" SATA3/SAS3 drive bay (SAS Card is optional)
  • 1x M.2 NVMe SSD Supported
  • 400W Redundant Platinum Level Power Supplies
  • Web Hosting, VM, Cloud Computing, Connectivity/Storage, Computer Nodes

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" drive bays
M.2:
1x NVMe based M.2 SSD

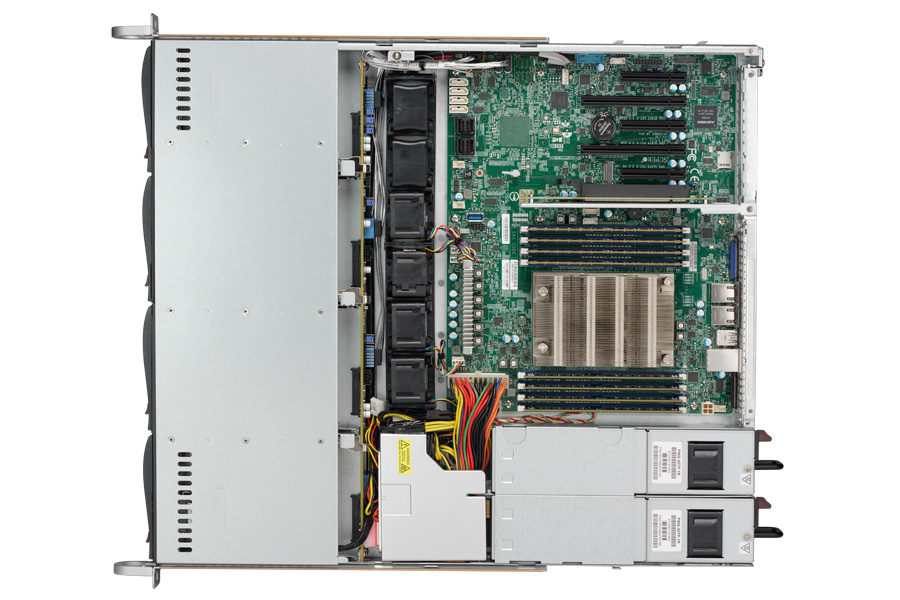

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
MEMORY ▼
No options configured for this category.
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Technical Specifications

Processor
CPU:
Single AMD EPYC™ 7002-series Processor (up to 200W)
Socket SP3

Cores:
Up to 32 Cores

Chipset:
System on Chip (SoC)

Memory
Memory Capacity:
8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM
8-channel memory bus

Memory Type:
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
1U Rackmount  Chassis
Dimensions
Height:
1.7" (43mm)

Width:
17.2" (437mm)

Depth:
19.85" (503mm)
Drive Bays
4 hot-swap 3.5" SATA3 drive bays
Expansion Slots
PCI Express:
1 PCI-E 3.0 x16 (FH/HL) slot

M.2:
Interface: PCI-E 3.0 x4 (NVMe based)
Form Factor: 2280, 22110
Key: Onbard M-key
Number of M.2: Single
Power Supply
400W 1U Redundant Power Supplies with PMbus

Total Output Power:
400W

Dimension (W x H x L):
54.5 x 40 x 220 mm

Input:
100 - 240Vac / 6.0 - 3.0A / 50-60Hz
200 - 240Vdc / 3.4 - 3.2A (CCC Only)

+12V:
Max: 33A / Min: 0.5A

+5V sb:
Max: 3A / Min: 0A

Output Type:
Gold Finger Connector Mating with Molex 45984-4343

Certification:
Platinum Level Certified
Onboard Devices
SATA:
SATA3 (6 Gbps)

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers:
Intel® I210 Controller

VGA:
ASPEED AST2500 BMC
Front Panel
Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Input / Output
SATA:
4 SATA3 (6 Gbps) ports

LAN:
2x 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port

USB:
5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4 USB 2.0 ports (2 rear, 2 via header)

VGA:
1 VGA port

Others:
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header
Cooling
Fans:
4x 40x28mm 4-pin PWM Cooling Fans

Air Shroud:
1 Air Shroud
BIOS
BIOS Type:
AMI 128Mb SPI Flash EEPROM

BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Detailed Specification
CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN:
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I²C Temperature Sensing Logic

LED:
CPU / System Overheat LED

Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
