2113S-WN24RT

2113S-WN24RT

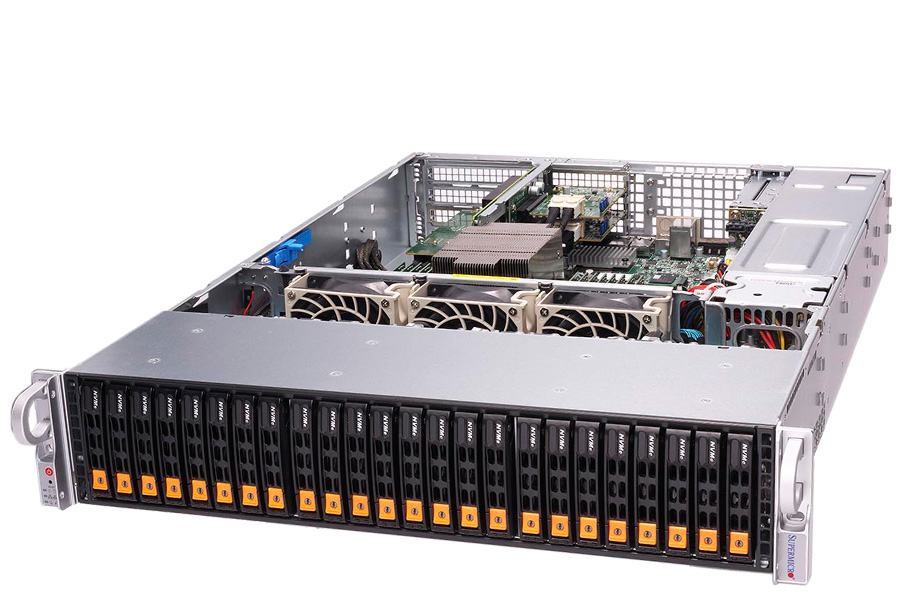

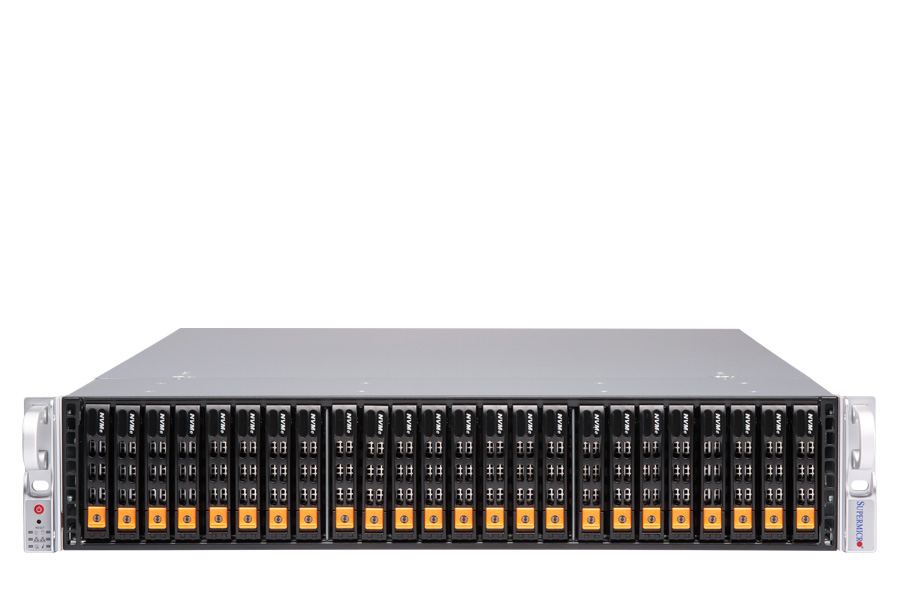

Supermicro 2U 24Bays Single Processor AMD Rackmount Server

  • Single AMD EPYC™ 7002* Series Processor
    (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
  • 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
    4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
    (Board revision 2.x required)
  • Expansion slots:
    1 PCI-E 3.0 x16 (FH/HL) slot
    M.2 Interface: PCI-E 3.0 x2 (NVMe based)
    M.2 Form Factor: 2280, 22110
    M.2 Key: Onboard M-key
    Number of M.2: Dual
  • Integrated IPMI 2.0 + KVM with dedicated LAN
    Software Out of Band License
    key (SFT-OOB-LIC) included
    for OOB BIOS management
  • 2x 10GBase-T LAN ports via Broadcom BCM57416
  • 24 hot-swap 2.5" U.2 NVMe drive bays
  • 1200W Redundant Power Supplies
    Titanium Level (96%)
    (Full redundancy based on configuration and application load)
  • Virtualization, Hyperconverged Storage, Cloud Computing, All Flash Storage

Hot-swap:
24x U.2 Drive
2x hot-swap 2.5" drive bays
M.2:
2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with 1 CPU, minimum 8 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
MEMORY ▼
No options configured for this category.
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
RAID CONTROLLER CARD ▼
Qty / Pick Option Price
*NO RAID Controller Card
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
OS DRIVE ▼
Qty / Pick Option Price
*No OS Drive
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
NVMe U.2/U.3 ▼
Qty / Pick Option Price
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Technical Specifications

Processor
CPU:
Single AMD EPYC™ 7002* series Processor
(*Board revision 2.x required)
Socket SP3
Supports CPU TDP 225W / cTDP up to 240W*

Cores:
Up to 64 Cores (Board revision 2.x + 7002 Processors)

Chipset:
System on Chip (SoC)
Memory
Memory Capacity:
16 DIMM slots
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus

Memory Type:
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (89mm)

Width:
17.2" (437mm)

Depth:
24.8" (630mm)
Drive Bays
24 hot-swap 2.5" U.2 NVMe drive bays
Expansion Slots
PCI Express:
1 PCI-E 3.0 x16 (FH/HL) slot

M.2:
Interface: PCI-E 3.0 x4 (NVMe based)
Form Factor: 2280, 22110
Key: Onboard M-key
Number of M.2: Dual
Power Supply
1200W Redundant Power Supplies with PMBus

Total Output Power:
1000W/1200W

Dimension (W x H x L):
76 x 40 x 336 mm

Input:
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
200-240Vdc / 8.5-7A (for CCC only)

+12V:
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)

+5Vsb:
Max: 4A / Min: 0A

Output Type:
19 Pairs Gold Finger Connector

Certification:
Platinum Level Certified
Onboard Devices
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers:
Broadcom BCM57416 Controller

VGA:
ASPEED AST2500 BMC
Front Panel
Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Input / Output
NVMe:
Up to 24 U.2 NVMe support

LAN:
2x 10GbBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port

USB:
5 USB 3.0 ports (4 rear + 1 Type A)

VGA:
1 VGA port

Others:
1 COM port
2 SATA DOM power connectors
TPM 1.2 header
Cooling
Fans:
3 heavy-duty PWM fans with optimal fan speed control

Air Shroud:
1 Air Shroud
BIOS
BIOS Type:
AMI 128Mb SPI Flash EEPROM

BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Detailed Specification
PC Health Monitoring

CPU:
Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN:
Up to 6-fan status tachometer monitoring
Up to six 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 6x Fan connectors
I²C Temperature Sensing Logic

LED:
CPU / System Overheat LED
Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
