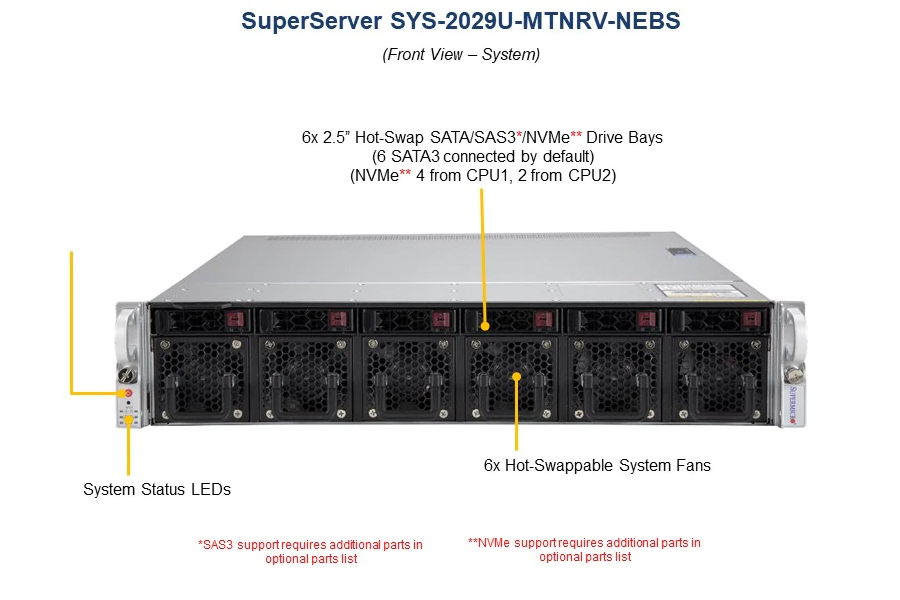

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Dual Socket P (LGA 3647)
Intel® Xeon® Gold 6240R Processors (2.4GHZ) integrated for Complete System CPU TDP 165W |
|---|---|
| Memory | Memory Capacity:
24 DIMM slots
Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM
Memory Type:
2933†/2666/2400/2133MHz ECC DDR4 RDIMM
2666 ECC DDR4 NVDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
|
| Chassis | 2U Short Depth Rackmount
|
| Dimensions | Width
17.2" (432mm)
Height
3.5" (89mm)
Depth
22.6" (574mm)
|
| Drive Bays | Hot-swap:
6 Hot-swap 2.5" drive bays, 6 NVMe/SATA ports (NVMe from CPU1) or 6 SATA ports; Optional SAS support via SAS storage controller
Note: SAS3 or NVMe support requires additional optional parts
M.2:
1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
|
| Expansion Slots | PCI-Express:
2 PCI-E 3.0 x16 (FH, 10.5"L)
4 PCI-E 3.0 x8 (FH, 10.5"L)
1 PCI-E 3.0 x8 (LP)
1 PCI-E 3.0 x8 (int)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
|
| Power Supply | 1600W Redundant Power Supplies with PMBus:
Total Output Power:
1600W/1000W
Dimension:
(W x H x L)
73.5 x 40 x 203 mm
Input:
100-127Vac / 13 - 9A / 50-60Hz
200-240Vac / 10 - 8A / 50-60Hz
+12V:
Max: 83.3A / Min: 0A (100-127Vac)
Max: 133A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
|
| Onboard Devices | Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity:
Flexible Networking options
Graphics:
ASPEED AST2500 BMC
|
| Front Panel | Front Bezel:
2U Front Bezel
Replaceable UL900-2004 certified air filter
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
|
| Input / Output | SATA:
6 SATA3 (6Gbps) ports
LAN:
Flexible LAN options
USB:
2 USB 3.0 ports (rear)
Video:
1 VGA Connector
Serial Header:
1 Serial header
DOM:
2 SuperDOM (Disk on Module) ports
|
| Cooling | Fans:
6 Hot-swap Heavy duty fans with optimal fan speed control Air Shroud:
1 Set of Air Shroud |
| BIOS | BIOS Type:
AMI 32Mb SPI Flash ROM
|
| Operating Environment | RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
Continuous: 5°C ~ 40°C (41°F ~ 104°F)
Short term: -5°C ~ 55°C (23°F ~ 131°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
5% to 85% with excursion of
5% to 93% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
| Detailed Specification | Software:
Intel® Node Manager
Redfish API
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management
|
