Home / Products / RS700-E10-RS12U-WOCPU005Z
$2,691.00
RS700-E10-RS12U-WOCPU005Z

RS700-E10-RS12U-WOCPU005Z

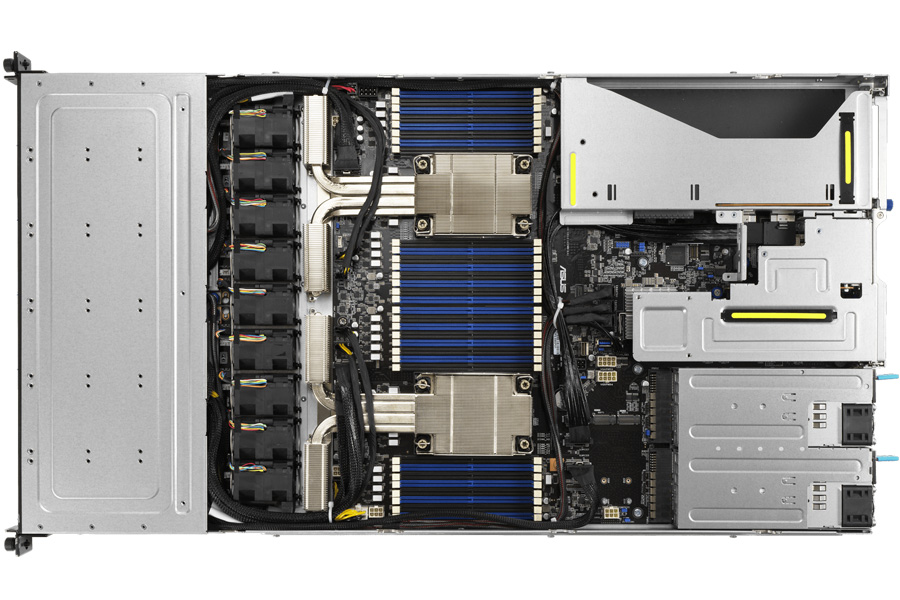

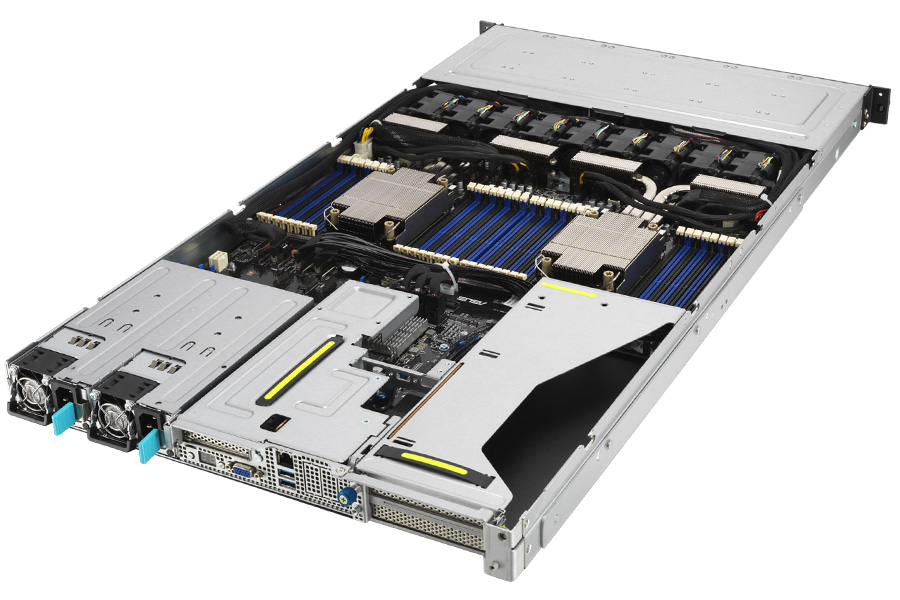

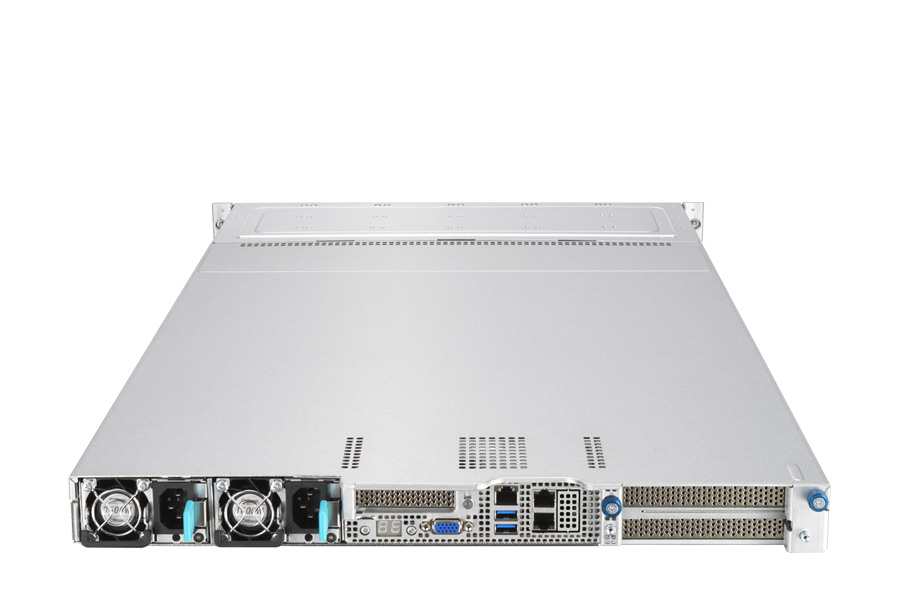

ASUS 1U 12Bays Dual Processor Rackmount Server

  • Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
  • GPU-optimized design allows one dual-slot GPU for AI workloads
  • Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
  • Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
  • Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
  • Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies

Storage configuration notice:
Hot-swap:
12x Hot-swap 2.5" drive bays
2x M.2 Drive

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6342 (2.80 GHz 230W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348 (2.60 GHz 235W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8351N (2.40 GHz 225W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358 (2.60 GHz 250W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358P (2.60 GHz 240W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360Y (2.40 GHz 250W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360HL (3.00 GHz 225W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360H (3.00 GHz 225W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8362 (2.80 GHz 265W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368 (2.40 GHz 270W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368Q (2.60 GHz 270W)
MEMORY ▼
No options configured for this category.
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
(Optional) Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Technical Specifications

Processor
2x Socket P+ (LGA 4189)
3rd Gen Intel® Xeon® Scalable Processors Family(270w)
UPI (11.2 GT/s)
Memory
Total Slots :
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity :
Maximum up to 6TB per socket
Memory Type :
DDR4 3200/2933 RDIMM
DDR4 3200/2933 LRDIMM
DDR4 3200/2933 RDIMM 3DS
Memory Size :
64GB, 32GB, 16GB, 8GB RDIMM
256GB, 128GB, 64GB RDIMM 3DS
128GB LRDIMM/LR-DIMM 3DS
512GB, 256GB, 128GBIntel® Optane™ DC persistent memory 200 Series (DCPMM)
Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Chassis
1U Rackmount Chassis
Dimensions
842.5mm x 439.5mm x 44mm
33.17” x 17.3” x 1.73”
Drive Bays
12 x 2.5" hot-swap bays (12 x NVMe/SAS/SATA)
2 x M.2 connector (NGFF 2280/2260. PCIe Gen4x4 link)
SAS support only from SAS HBA/RAID card
Expansion Slots
Up to 3x Expansion slots + 1x Internal PIKE slot
1x PCIe Gen4 x16, FHFL (CPU1)
1x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2)
1x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
Installing GPU cards will occupied expansion slots.
Power Supply
1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac, 13A/9.5A (for each inlet),
50-60Hz, Class I
1+1 Redundant 1200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac, 10A/8A (for each inlet), 50/60Hz, Class I
Onboard Devices
Networking:
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN

Graphic:
Aspeed AST2600 with 64MB VRAM
Front Panel
Front Switch/LED:
1x Power Switch (w/ LED)
1x Reset Switch
1x Location Switch (w/ LED)
1x HDD Access LED
The HDD Access LED is only functional when an ASUS PIKE II card is installed and connected.
1x Message LED
LAN 1-4 LED (on NIC module)
The number of LAN LEDs available depends on the LAN Controller card installed.

Rear Switch/LED:
1x Port 80 LED (Q-Code)
1x Power Switch w/ LED
1x Location Switch w/ LED
Input / Output
2x USB 3.2 Gen1 ports
1x VGA port
1x RJ-45 Mgmt LAN port
4/2x NIC ports
The number of NIC ports available depends on the LAN Controller card installed.
Cooling

9 (if support GPU SKU, it will have external fan)
Operating Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% ( Non condensing)

Frequently Asked Questions

Yes. Spectrum Servers offers custom configurations for all server products. Use the Configure Options section above to select processors, memory, storage and other components, or request a custom quote.

All products sold by Spectrum Servers include the manufacturer's standard warranty. Extended warranty options are available. Contact our sales team at sales@spectrumservers.com or call +1 (626) 956-0100 for details.

Lead times vary by product and configuration. In-stock items typically ship within 1–3 business days. Custom configured systems may take 5–15 business days. Contact us for specific availability and lead time information.

Yes. Spectrum Servers provides technical support for all products sold. Our engineers are available Monday–Friday 8:30AM–5:30PM PST. Reach us at +1 (800) 526-8650 or email sales@spectrumservers.com.

Yes. Volume discounts are available for orders of 5 or more units. Please request a quote or contact our sales team directly for pricing on larger orders.
