RS700A-E11-RS12U-WOCPU012Z

RS700A-E11-RS12U-WOCPU012Z

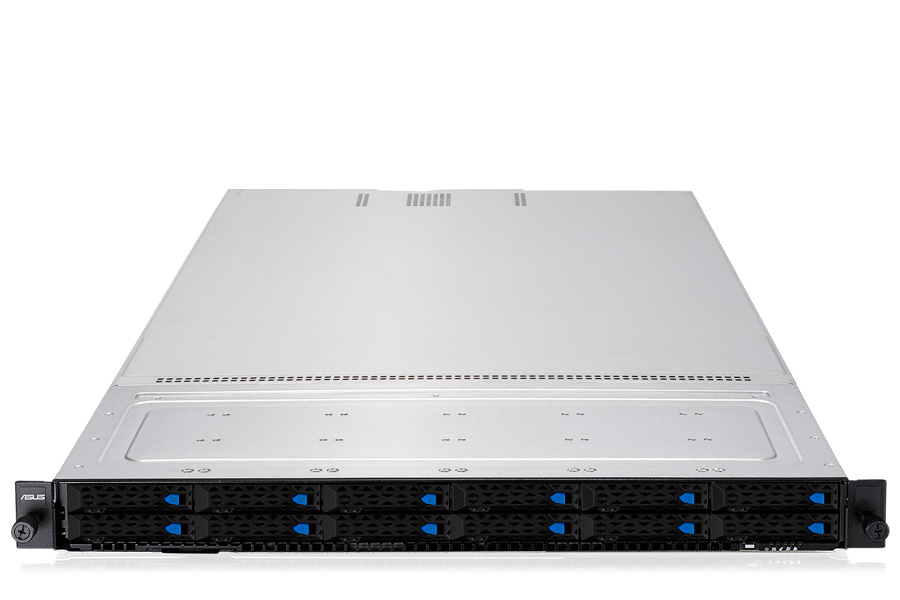

ASUS 1U 12Bays Dual AMD Processor Rackmount Server

  • Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
  • GPU-optimized design allows one dual-slot or two single-slot GPUs for AI workloads
  • Up to 12 all-flash NVMe drives on front panel is designed for high storage throughput performance
  • Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
  • Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
  • Flexible cooling solution achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED® AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • High power efficiency with redundant 1600W 80 Plus Titanium and Platinum power supplies

Storage configuration notice:
Hot-swap:
4x NVMe Drive
8x Hot-swap 2.5" SAS/SATA/ drive bays

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz
AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz
AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz
AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz
AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz
AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz
AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz
AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz
MEMORY ▼
No options configured for this category.
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
(Optional) Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
*No Hard Drive
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Technical Specifications

Processor
2x Socket SP3 (LGA 4094)
AMD EPYC™ 7003 Series
AMD EPYC™ 7002 Series
Max TDP: 280W
Memory
Total Slots:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4096GB per socket
Memory Type:
Dual Channel DDR4 3200/2933 RDIMM
Dual Channel DDR4 3200/2933 LRDIMM
Dual Channel DDR4 3200/2933 LR-DIMM 3DS non ECC
Memory Size:
64GB, 32GB, 16GB RDIMM
128GB, 64GB LRDIMM
256GB, 128GB, 64GB LR-DIMM 3DS
Chassis
1U Rackmount Chassis
Dimensions
842.5mm x 449mm x 43.85mm
33.17" x 17.68" x 1.73"
Drive Bays
4x NVMe Drive Bays
8x 2.5" Hot-swap SATA/SAS Drive Bays
2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)
SAS must with PIKE/RAID card
Expansion Slots
Up to 3x Expansion slots + 1x Internal PIKE slot
1x PCIe Gen4 x16, FHFL (CPU1)
1x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2)
1x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
Installing GPU cards will occupied expansion slots.
Power Supply
1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Onboard Devices
Graphic:
Aspeed AST2600 with 64MB VRAM
Networking:
1x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1x Mgmt LAN
Front Panel
Front Switch/LED:
1x Power switch (w/LED)
1x Reset Switch
1x Location Switch (w/LED)
1x HDD Access LED
1x Message LED LAN 1-4 LED (on NIC Module)
Input / Output
2x USB 3.2 Gen1 ports
1x VGA port
1x RJ-45 Mgmt LAN port
1x OCP3.0 port (Please remember to insert OCP3.0 Board)
Operating Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% (Non condensing)
