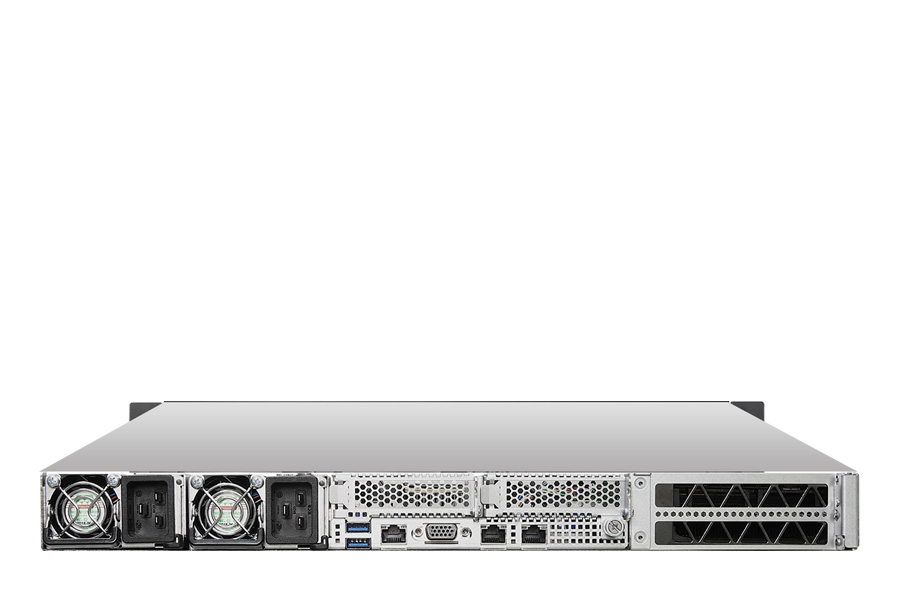

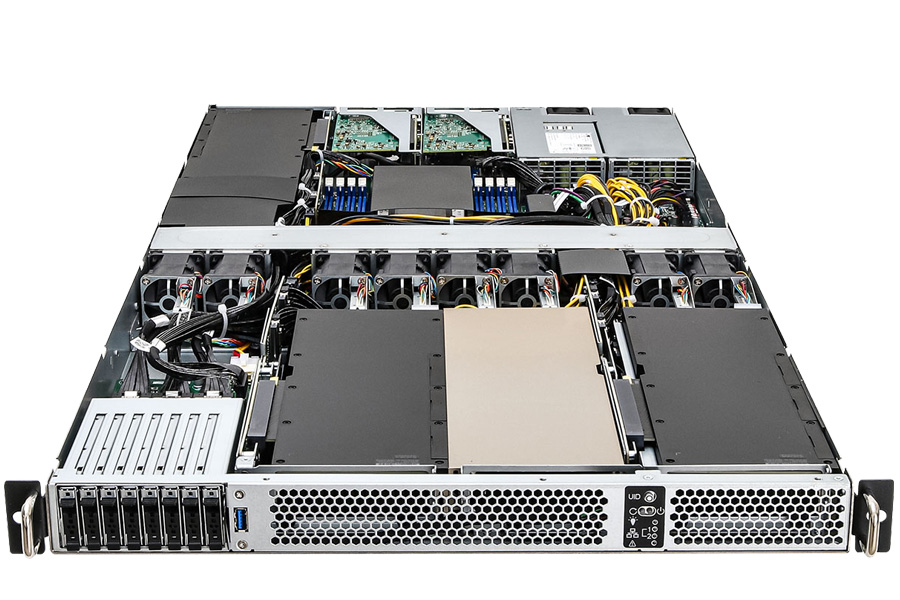

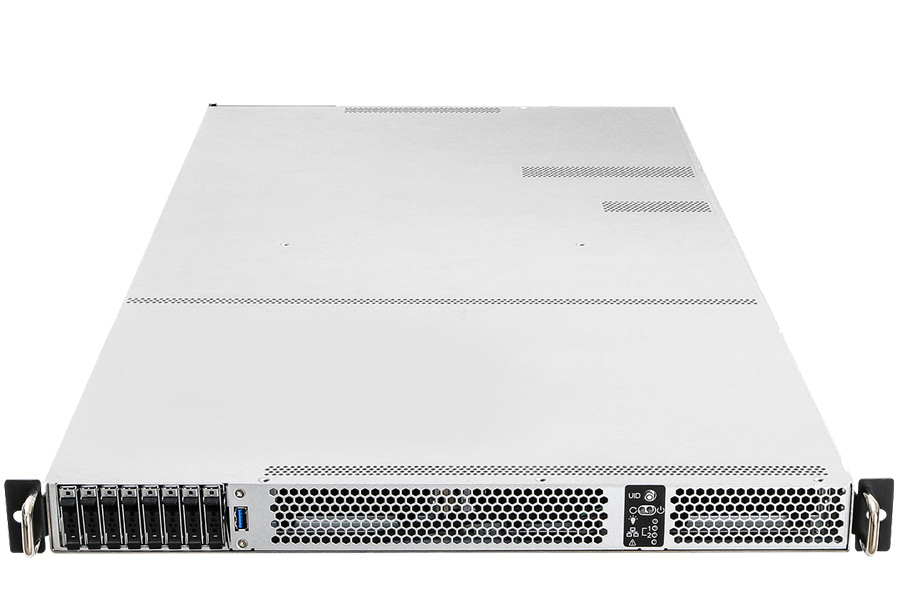

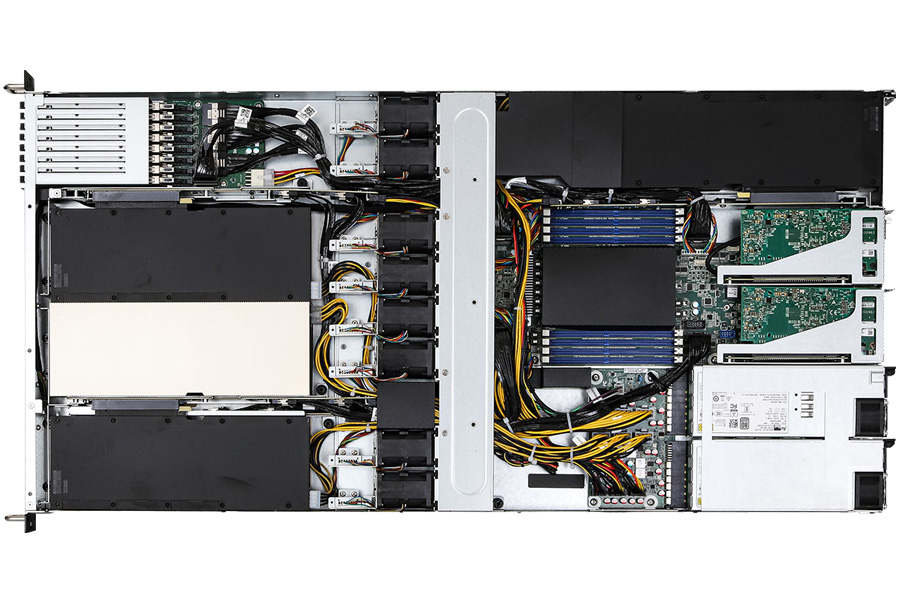

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 Series Processors A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology Socket: SP3 Chipset: System on chip |
|---|---|
| Memory | Supported DIMM Quantity:
8x DDR4 288-pin DIMM slots (1DPC) Supported Type: DDR4 R DIMM/ LR DIMM Max. Capacity per DIMM: RDIMM: 64GB, 32GB, 16GB, 8GB LRDIMM: 256GB, 128GB, 64GB 256GB is to be validated Max. DIMM Frequency: RDIMM: 3200/2933/2666/2400MHz LRDIMM: 3200/2933/2666/2400MHz Voltage: 1.2V |
| Chassis | 1U Rackmount Chassis
|
| Dimensions | 438mmx 880mmx 43.5mm (without ear)
17.2"x 34.6"x 1.7"
|
| Drive Bays | Front Side Drive Bay:
8x E1.S (PCIe x4) trays support up to 8.01mm thickness E1.S or 22110/2280 M.2 (PCIe x4) by optional ED_M2W_G4 adapter card Internal Side: 2 header (9-pin, USB2.0) support USB DOM |
| Expansion Slots | PCIe x 16
Front: supports 3 FH dual-slot* PCIe4.0 x16 via 1U4G_SL2P_L_RDV and 1U4G_SL2P_R_RDV Rear: supports 1 FH dual-slot* PCIe4.0 x16 via 1U4G_SL2P_L_RDV supports 2 low-profile PCIe4.0 x16 via RB1UX16_G4 Active-cooled cards and cards with power connector on the top edge are not supported. |
| Power Supply | Type:
1+1 CRPS Output Watts: 2000W Efficiency: 80-PLUS Platinum AC Input: 200-240V, 50/60Hz |
| Onboard Devices | Ethernet
Additional GbE Controller: Intel® i350-AM2: 2 (1GbE) RJ45 Graphics
Controller: ASPEED BMC AST2500: 1 DB15 (VGA) |
| Front Panel | Buttons:
UID, Power, Reset LEDs: System Fail, Power, LAN1, LAN2 I/O Ports: 1x Type-A (USB3.2 Gen1) |
| Input / Output | VGA Port:
1x DB15 (VGA) USB 3.2 Gen1 Port: 2x Type-A (USB3.2 Gen1) RJ45: 2x RJ45 (1GbE) via i350-AM2 1x dedicated IPMI |
| Cooling | 8x dual-rotor hot-swap 40x56 mm fans
|
| BIOS | BIOS Type:
32MB AMI UEFI Legal BIOS |
| Operating Environment | Temperature:
Operation temperature: 10°C ~ 35°C* / Non operation temperature: -40°C ~ 70°C Please contact Sales for the operating temperature while GPGPU deployed Humidity: Non operation humidity: 20% ~ 90% ( Non condensing) |
