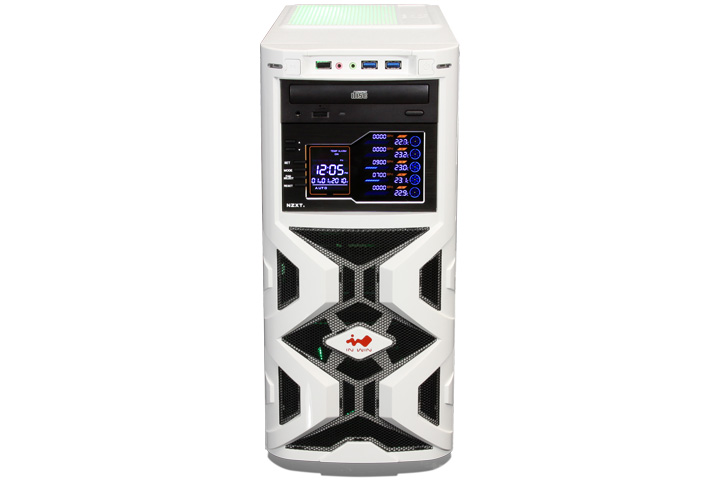

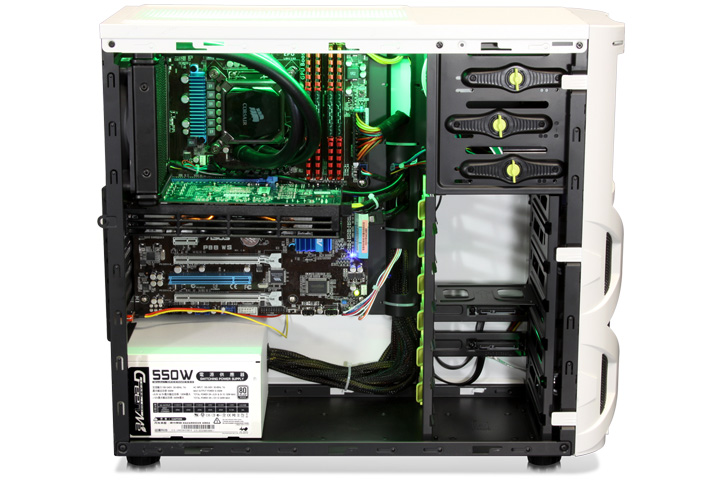

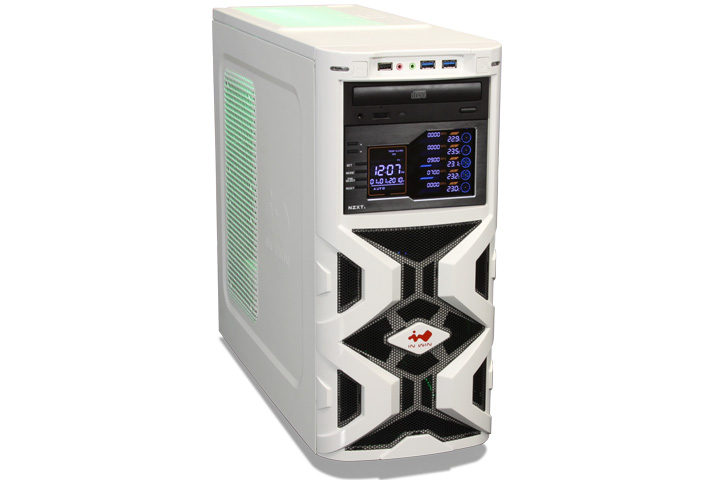

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 (The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.) |
|---|---|
| Memory | 4 x DIMM, Max. 32GB, DDR3 3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) (Hyper DIMM support is subject to the physical characteristics of individual CPUs. ) |
| Dimensions | ATX Mid-Tower Chassis
|
| Drive Bays | External:
3x 5.25"
Internal:
6x 3.5" &2x 2.5"
|
| Expansion Slots | 5 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x16/x8 or x8/x16/x8/x8)
(Native x8/x8 mode is available when only PCIE_X16/X8_1 and PCIE_X8_B2 slots are in used.)
1 x PCIe 2.0 x4 1 x mini-PCIe 2.0 x1 (The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo II expansion card.)
|
| Power Supply | GreenMe 550W 80Plus Bronze (optional)
|
| Onboard Devices | LAN:
Intel® I217V, 1 x Gigabit LAN Controller(s) Wireless Data Network: Wi-Fi 802.11a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Bluetooth: Bluetooth V4.0 Bluetooth V3.0+HS OC Panel:
2.6 " LCM display EXTREME/NORMAL mode switch EXTREME Mode for subzero OC benching - VGA Hotwire - Subzero Sense - Slow Mode - Pause Switch - VGA SMB header - ProbeIt - 4 x 4-pin extra fan connectors NORMAL Mode for in-chassis usage - CPU Level Up OC button - FanSpeed control button - LCM backlight on/off button I/O Ports - POWER：1 x SATA power connector - ROG_EXT port：1 x 18-1 pin data connection port Multi-GPU Support:
Supports NVIDIA® 4-Way SLI™ Technology Supports AMD CrossFireX™ Technology |

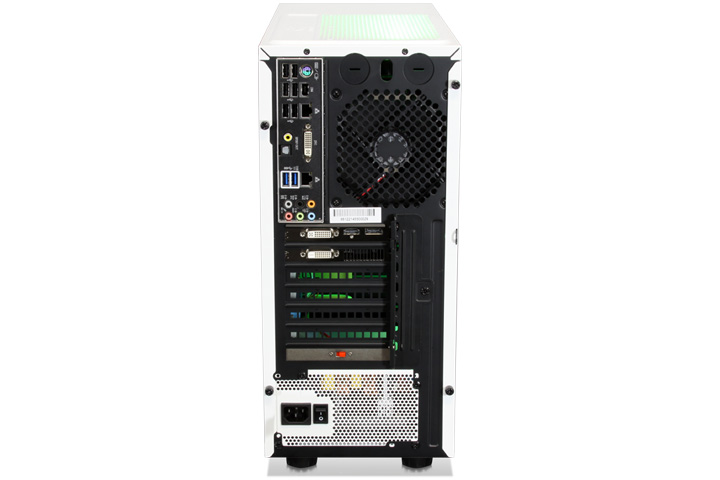

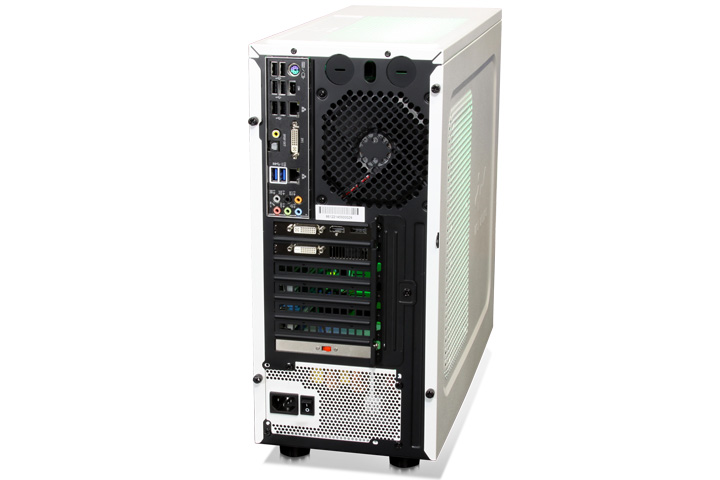

| Input / Output | Back I/O Ports
1x PS/2 keyboard/mouse combo port(s) 1x DisplayPort 1x HDMI 1x LAN (RJ45) port(s) 6x USB 3.0 (blue) 2x USB 2.0 (one port can be switched to ROG Connect) 1x Optical S/PDIF out 6x Audio jack(s) 1x Clear CMOS button(s) 1x ROG Connect On/ Off switch(es) |
| Cooling | Up to 12cm fan x 7
|
| Optical Drive | 5.25" SATA 24x DVDRW DVDR DL Double Layer Internal Drive (Optional)
ASUS Black 5.25" 12X BD/ 16X DVD/ 48X CD/ SATA Internal Blu-ray Drive (Optional)
LG Black 5.25" 12X BD/ 16X DVD/ SATA Internal Blu-ray Drive (Optional) |
