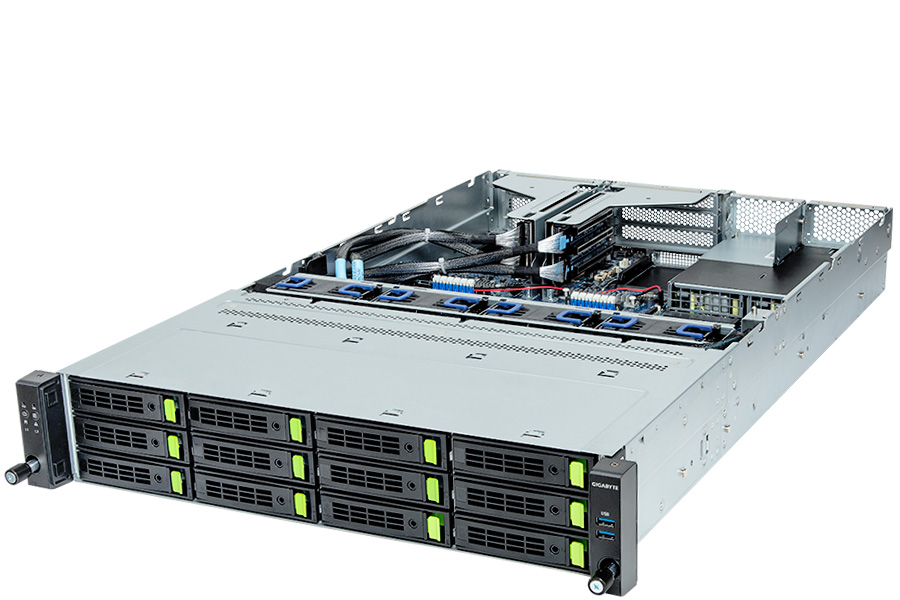

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Qty / Pick | Option | Price |
|---|---|---|
|
|
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
|
|
|
|
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
|
|
|
|
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
|
|
|
|
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
|
|
|
|
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
|
|
|
|
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
|
|
|
|
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
|
|
|
|
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
|
|
|
|
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
|
|
|
|
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
|
|
|
|
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
|
|
|
|
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
|
|
|
|
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
|
|
|
|
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
|
|
|
|
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
|
|
|
|
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
|
|
|
|
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
|
|
|
|
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*No Network Card
|
|
|
|
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
|
|
|
|
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
|
|
|
|
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
|
|
|
|
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
|
|
|
|
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
|
|
|
|
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
|
|
|
|
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
|
|
|
|
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
|
|
|
|
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
|
|
|
|
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
|
|
|
|
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
|
|
|
|
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
|
|
|
|
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
|
|
|
|
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
|
|
|
|
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
|
|
|
|
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
|
|
|
|
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
|
|
|
|
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
|
|
|
|
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
|
|
|
|
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
|
|
|
|
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*Please contact our sales for more operating system options
|
|
|
|
Debian Linux (No Media) (32-Bit/64-Bit)
|
|
|
|
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
|
|
|
|
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
|
|
|
|
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
|
|
|
|
Fedora Linux Workstation Edition 64-bit (No Media)
|
|
|
|
Microsoft Windows Server 2025 Standard 64-bit-1User
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*1 Year Parts Replacement Warranty
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $500 to $2000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
|
|
|
|
3 Year Parts Replacement Warranty - Server Value Over $10000
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*NO RAID Controller Card
|
|
|
|
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
|
|
|
|
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
|
|
|
|
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
|
|
|
|
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
|
|
|
|
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
|
|
|
|
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
|
|
|
|
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
|
| Qty / Pick | Option | Price |
|---|---|---|
|
|
*No NVMe M.2 Drives
|
|
|
|
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
|
|
|
|
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
|
|
|
|
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
|
|
|
|
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
|
|
|
|
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
|
|
|
|
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
|
|
|
|
WD Black SN850 M.2 G4 NVMe SSD 500GB
|
|
|
|
WD Black SN850 M.2 G4 NVMe SSD 1TB
|
|
|
|
WD Black SN850 M.2 G4 NVMe SSD 2TB
|
|
|
|
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
|
|
|
|
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
|
|
|
|
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
|
|
|
|
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
|
|
|
|
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
|
|
|
|
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
|
| Processor | AMD EPYC™ 9004 series processor family
Single processor, 5nm technology Up to 96-core, 192 threads per processor cTDP up to 360W Supports CPU 400W at ambient 30°C Socket 1x LGA 6096 Socket SP5 |
|---|---|
| Memory | 12 x DIMM slots
DDR5 memory supported only 12-Channel memory architecture RDIMM modules up to 128GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz |
| Chassis | 2U Rackmount Chassis
|
| Dimensions | 438mm x 87.5mm x 700mm
|
| Drive Bays | 12x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support |
| Expansion Slots | Riser Card CRS201M:
1x PCIex16 (Gen5x16) FHHL slot Riser Card CRS201H: 1x PCIex16 (Gen5x16) FHHL slot 2x OCP 3.0 slots with PCIe Gen5x16 bandwidth Supported NCSI function 1x M.2 slot: M-key PCIe Gen3x4 Supports 2280/22110 cards |
| Power Supply | Dual 1300W (240V) 80 PLUS Platinum redundant power supply
AC Input: 100-240V~/ 12-7A, 50-60Hz 200-240V~/ 8A, 50-60Hz DC Input: 240Vdc/ 6.5A DC Output: Max 1000W/ 100-240V~ + 12V/ 80.5A + 12Vsb/ 3A Max 1300W/ 200-240V~ or 240Vdc Input + 12V/ 105.4A + 12Vsb/ 3A NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency. |
| Onboard Devices | LAN
1x 1Gb/s LAN port (1x Intel® I210-AT) Supported NCSI function 1x 10/100/1000 management LAN Video Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |

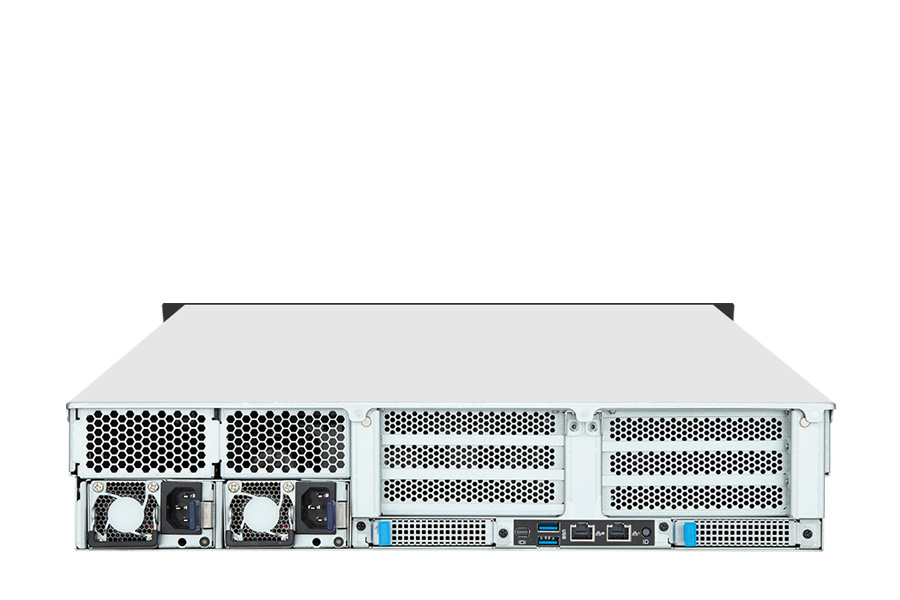

| Input / Output | Internal I/O
1x M.2 slot 1x TPM header 2x OCP 3.0 mezzanine slots Front I/O 2x USB 3.2 Gen1 1x Power button with LED 1x ID button with LED 1x NMI button 1x Reset button 1x LAN activity LED 1x HDD activity LED 1x System status LED Rear I/O 2x USB 3.2 Gen1 1x Mini-DP 1x RJ45 1x MLAN 1x ID button with LED Backplane I/O Backplane P/N: 9CBP20C5NR-00 Speed and bandwidth: PCIe Gen4x4 or SATA 6Gb/s or SAS 12Gb/s |
| Cooling | 4x 80x80x38mm (18,300rpm) System Fans
|
| Operating Environment | Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Detailed Specification | System Management
Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
