SYS-111E-FDWTR

SYS-111E-FDWTR

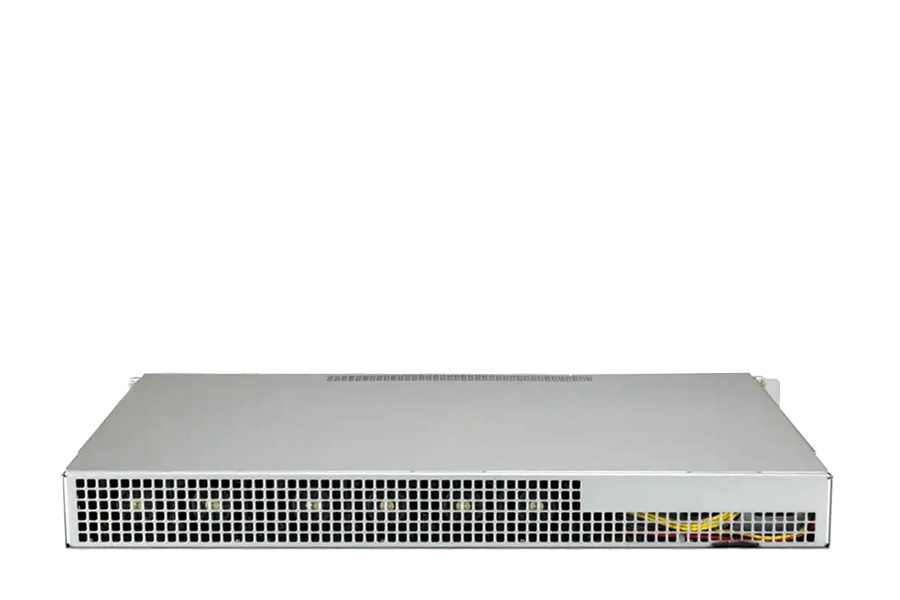

Supermicro 1U 2Bays Single Processor Rackmount Server

  • Support 5th and 4th Gen Intel® Xeon® Scalable processors
  • 8 DIMMs; Up to 2TB 3DS ECC DDR5-5600 RDIMM
  • 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH)
  • 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
  • 600W DC Redundant Power Supplies Level
  • Multi-Access Edge Computing, Outdoor DU of 5G Application, Flex-RAN, Open-RAN vBBU, Artificial Intelligence (AI) on Edge, Machine Learning (ML)

Storage configuration notice:
Internal:
2x 2.5" Fixed Drive Bays
1x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6426Y (2.50 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6558Q (3.20 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558 (2.10 Ghz 330W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558P (2.70 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8570 (2.10 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8580 (2.00 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592+ (1.90 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592V (2.00 Ghz 330W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8593Q (2.20 Ghz 385W)
MEMORY ▼
Qty / Pick Option Price
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Technical Specifications

Processor
CPU:
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Cores:
Up to 32C/64T; Up to 60MB Cache

Note:
Supports 85W - 350W TDP CPUs (Air Cooled)
Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
Memory
Memory:
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1 V
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
16.9" (429mm)
Drive Bays
Drive Bays:
2x 2.5" SATA drive bays

M.2:
1x M-Key 22110/2280 (PCIe 3.0 x2 (NVMe))
Expansion Slots
1 PCIe 5.0 x16 LP slot(s)
2 PCIe 5.0 x16 FHFL slot(s)
Power Supply
1U 600W Redundant short depth DC48V input redundant power supply
Total Output Power:
600W : (-44) - (-65) Vdc
Dimension (W x H x L):
54.5 x 40 x 220 mm
+12V:
Max: 50A
5V SB:
Max: 3A / Min: 0A
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1 support

Chipset:
Intel® C741

Network Connectivity:
2x 10GbE port(s)

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Front Panel
Buttons:
Power On/Off

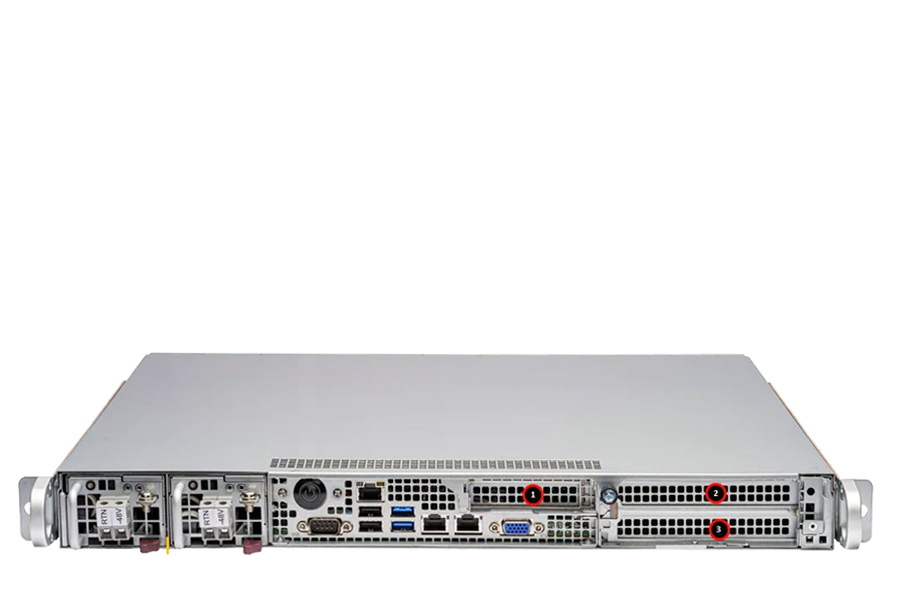

Input / Output
LAN:
1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GbE (Intel® X550-AT2)

USB:
2 USB 2.0 port(s) (2 USB)
2 USB 3.0 port(s) (2 USB)

Video:
1 VGA port(s)

Others:
1x COM Port COM port
Cooling
Fans:
6 heavy duty fans with optimal fan speed control

Air Shroud:
1 Air Shroud(s)
Operating Environment
Operating Temperature:
   0°C ~ 40°C (32°F ~ 104°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Detailed Specification
Management
Software:
IPMI 2.0
Power Configurations:
ACPI Power Management
Power-on mode for AC power recovery
