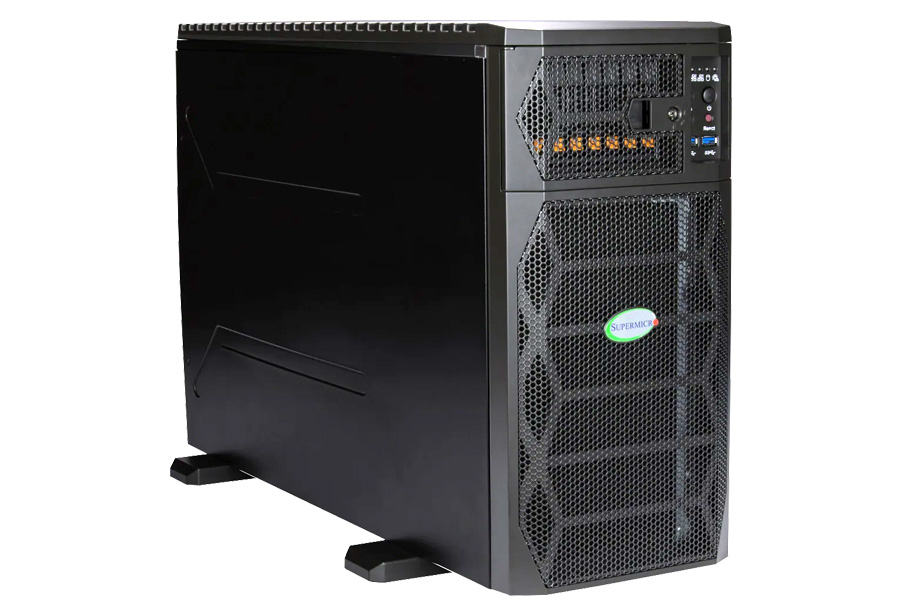

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: 16C/32T; 30MB Cache per CPU Note: Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled) Max GPU Count: Up to 4 double-width GPU(s) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (2+2) Note: Dual 4th Gen Intel® Xeon® Scalable 6444Y (16 cores at 3.6Ghz) installed |
|---|---|
| Memory | Memory:
Slot Count: 16 DIMM slots Max Memory (2DPC): 512GB 4800MT/s ECC DDR5 Memory Voltage: 1.1V Note:
16x 32GB 4800MHz ECC DDR5 RDIMM DRAM installed |
| Chassis | Tower or 5U Rackmount Chassis
|
| Dimensions | Height:
8.6" (218.4mm) Width: 17.9" (454.7mm) Depth: 27.6" (701mm) |
| Drive Bays | Hot-swap:
8x 2.5" hot-swap NVMe/SATA drive bays (2x 1.92TB NVMe Drives RAID 1 (OS), 4x 1.92TB NVMe Drives (Data) installed) M.2: 2 M.2 NVMe |
| Expansion Slots | PCI-Express (PCIe):
7 PCIe 5.0 x16 FHFL slot(s) Note:

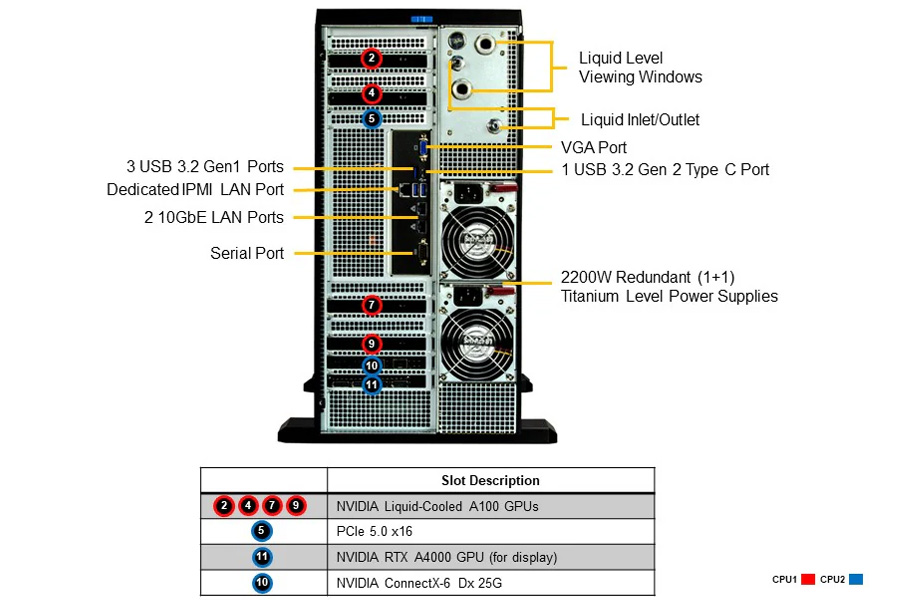

4 NVIDIA Liquid-cooled A100, NVIDIA RTX A4000, NVIDIA Connect-X6 Dx 25G Network adapter installed |
| Power Supply | 2U 2200W Redundant Power Supply for Workstation
Dimension (W x H x L): 106.5 x 82.1 x 203.5 mm AC Input: 1200W: 100-127Vac / 9.5A-12A / 50-60Hz 1800W: 200-220Vac / 9.5A-10A / 50-60Hz 1980W: 220-230Vac / 9.5A-10A / 50-60Hz 2200W: 220-240Vac / 9.6A-11.8A / 50-60Hz (UL/cUL only) 2090W: 230-240Vac / 9.8A-10A / 50-60Hz 2090W: 230-240Vdc / 9.8A-10A / 50-60Hz (China only) Output Type: Backplanes (connector) Certification: Titanium Level |
| Onboard Devices | SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support Chipset:
Intel® C741 Network Connectivity:
2x 10GbE BaseT with Intel® X550-AT2 1x 1GbE BaseT with ASPEED AST2600 1x 25GbE SFP28 with NVIDIA Connect-X-6 Dx IPMI:
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Front Panel | Buttons:
Power On/Off button Reset button LEDs: HDD activity LED Information LED Network 1 activity LED Network 2 activity LED Power status LED |
| Input / Output | SATA:
2 SlimSAS port(s) 2 SuperDOM port(s) NVMe: 4 NVMe U.2 LAN: 1 RJ45 1GbE (Dedicated IPMI port) 2 RJ45 10GbE USB: 2 USB 3.2 Gen1x2; port(s) (2 Front_USB) 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB) 3 USB 3.2 Gen1 port(s) (3 Rear_USB) Video: 1 VGA port(s) |
| Cooling | 1 fan 8CM Fan(s)
2 fan 12CM Fan(s) |
| BIOS | BIOS Type:
AMI 32MB SPI Flash EEPROM |
| Operating Environment | Operating Temperature:
10°C ~ 25°C (50°F ~ 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Detailed Specification | Management
Software: OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 Power Configurations: ACPI Power Management Power-on mode for AC power recovery |
