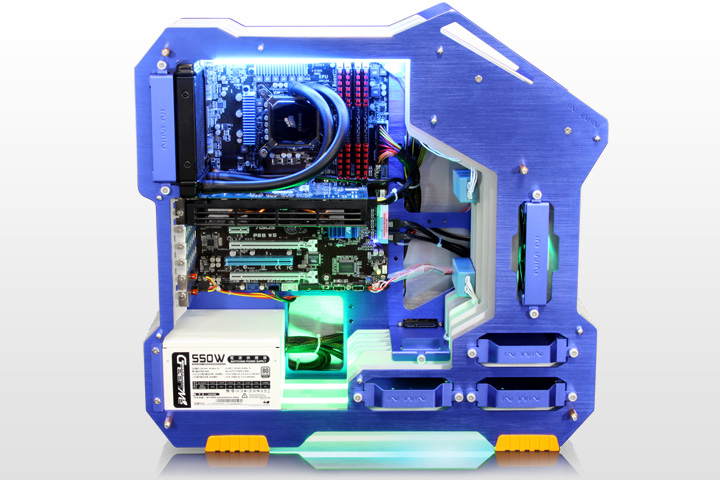

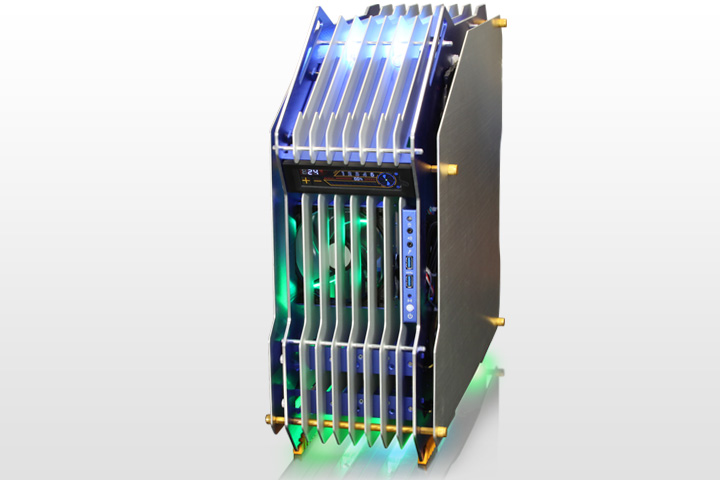

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 (The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.) |
|---|---|
| Memory | 4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) (Hyper DIMM support is subject to the physical characteristics of individual CPUs. ) |
| Chassis | Tower ATX
|
| Dimensions | 20.6"(H) x 8.7"(W) x 21.5"(D)
|
| Drive Bays | 1x External 5.25" Drive Bays
3x Internal 3.5" Drive Bays 1x Internal 2.5" Drive Bays |
| Expansion Slots | 5 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x16/x8 or x8/x16/x8/x8)
(Native x8/x8 mode is available when only PCIE_X16/X8_1 and PCIE_X8_B2 slots are in used.)
1 x PCIe 2.0 x4 1 x mini-PCIe 2.0 x1 (The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo II expansion card.)
|
| Power Supply | GreenMe 550W 80Plus Bronze (optional)
|
| Onboard Devices | LAN:
Intel® I217V, 1 x Gigabit LAN Controller(s) Graphic: Integrated Graphics Processor - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Multi-GPU Support: Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology |

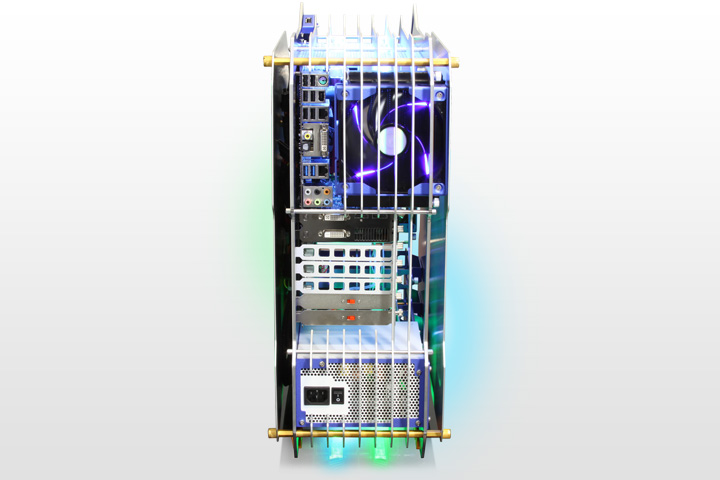

| Input / Output | Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s) |
| BIOS | 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS
|
| Optical Drive | 5.25" SATA 24x DVDRW DVDR DL Double Layer Internal Drive (Optional)
ASUS Black 5.25" 12X BD/ 16X DVD/ 48X CD/ SATA Internal Blu-ray Drive (Optional)
LG Black 5.25" 12X BD/ 16X DVD/ SATA Internal Blu-ray Drive (Optional) |
