| SYS-521GE-TNRT (5U PCle air w/L40S) | ||
| SMC Product ID | SMC Mat Descr | Qty |
| SYS-521GE-TNRT | X13 5U 8GPU SAPPHIRE RAPIDS GEN5 PCIE DUAL ROOT SYS | 1 |
| EWCSC | 0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY | 1 |
| P4X-EMR8562Y+-SRN6G-MCC | 8562Y+ 2P 32C2.8G300W(32/2.5,24/3/270)60M SGX512 DS.IA.QA.DL | 2 |
| MEM-DR564L-SL01-ER56 | 64GB DDR5-5600 2Rx4 LP (16Gb) ECC RDIMM ,HF, RoHS | 16 |
| HDS-MMN-MTFDKBA960TFR1BC | Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC, | 2 |
| HDS-IUN0-SSDPF2KX038T1 | IntelD7-P5520 3.84TB NVMe PCIe4.0 X4 3DTLCU.2 15mm<2DWPD | 4 |
| AOC-A100G-M2CM-O | AIOM 2-port 100GbE QSFP28,Mellanox CX-6 DX w/0.5U bracke | 1 |
| GPU-NVL40S | NVIDIA Ada L40S 48GB GDDR6 PCIe Gen 4th-- 350w | 8 |
| AOC-CX766003N-SQ0 | 900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled | 4 |
| SKT-1424L-001B-LTS | SOCKET E E1B CARRIER LGA 4677 W/SHIM MCC LCC, DG1.0 ,RoHS | 2 |
| MC0037 | ASSEMBLY FEE | 1 |

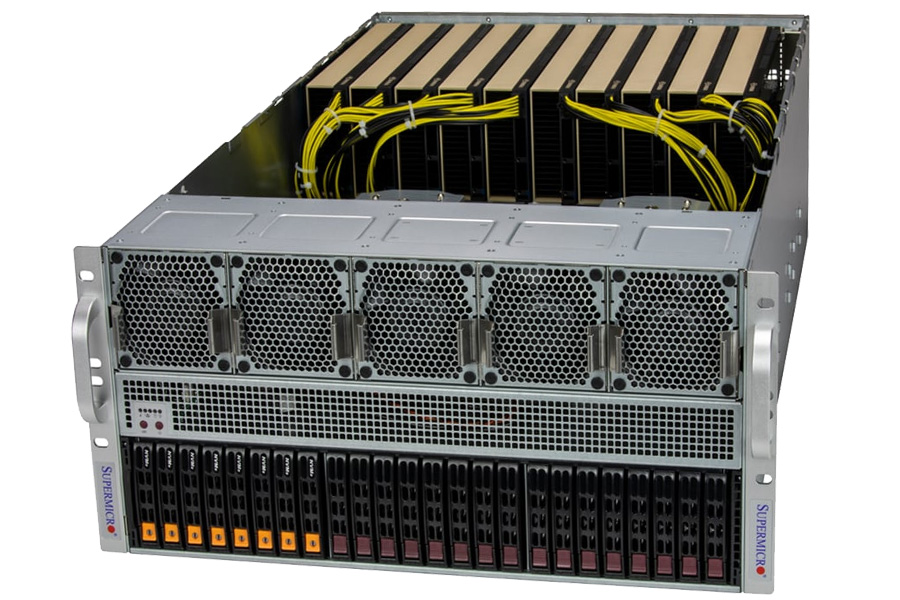

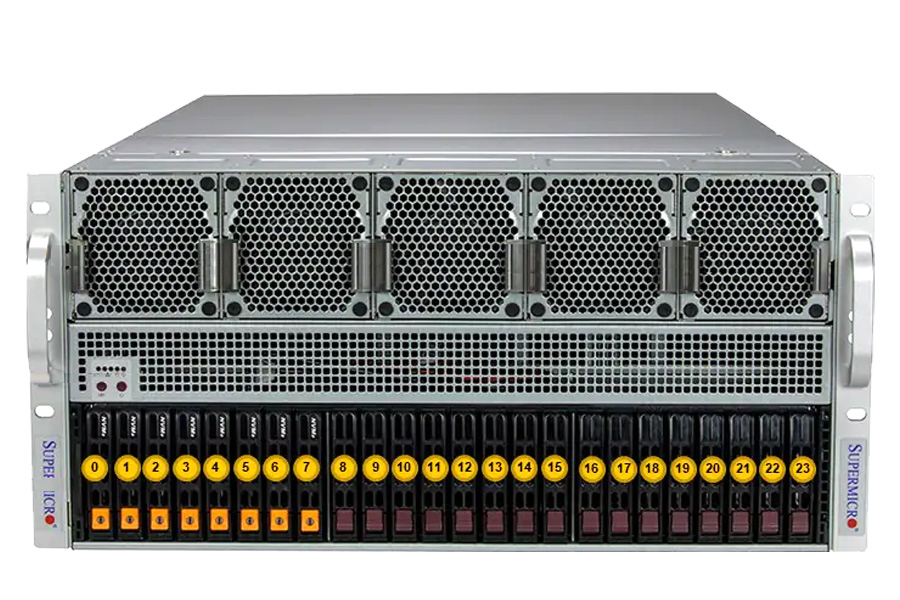

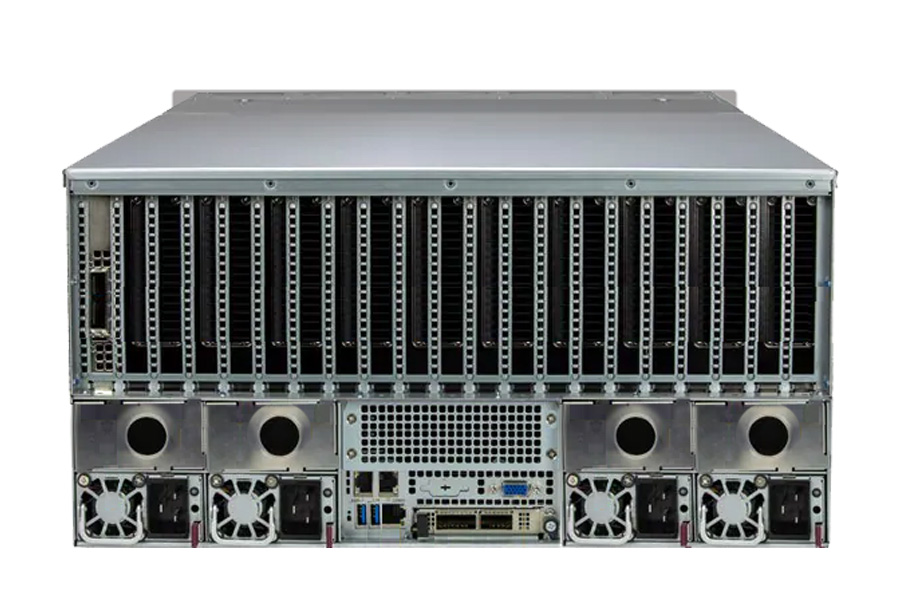

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: Up to 64C/128T; Up to 320MB Cache per CPU Note: Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled) Max GPU Count:
Up to 10 double-width or 10 single-width GPU(s) Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40S, A100 CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) |
|---|---|
| Memory | Memory:
Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM Memory Voltage: 1.1V |
| Chassis | 5U Rackmount Chassis
|
| Dimensions | Height:
8.75" (222.5mm) Width: 17.2" (437mm) Depth: 29" (737mm) |
| Drive Bays | Hot-swap:
24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid; 8x 2.5" NVMe dedicated)
M.2:
2 M.2 NVMe
|
| Expansion Slots | 12 PCIe 5.0 x16 FHFL slot(s)
1 PCIe 5.0 X16 FHFL slot(s) |
| Power Supply | 2700W Redundant Titanium Level power supplies
Dimension (W x H x L): 73.5 x 40 x 203 mm AC Input: 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12V: Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SB: Max: 3.5A / Min: 0A Max: 4A / Min: 0A Output Type: Backplanes (gold finger) Certification: Titanium Level |
| Onboard Devices | Chipset:
Intel® C741 Network Connectivity: 2x 10GbE BaseT with Intel® X710-AT2 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Input / Output | Video:
1 VGA port(s) |
| Cooling | Fans:
8 heavy duty fans with optimal fan speed control Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| BIOS | BIOS Type:
AMI 32MB SPI Flash EEPROM |
| Operating Environment | Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Detailed Specification | Supported GPU:
NVIDIA PCIe: H100, H100 NVL, L40S, L40, A100 Intel® Data Center GPU CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional) |
