Home / Products / X9SRW-F
$59.00
X9SRW-F

X9SRW-F (1 Pc in Stock)

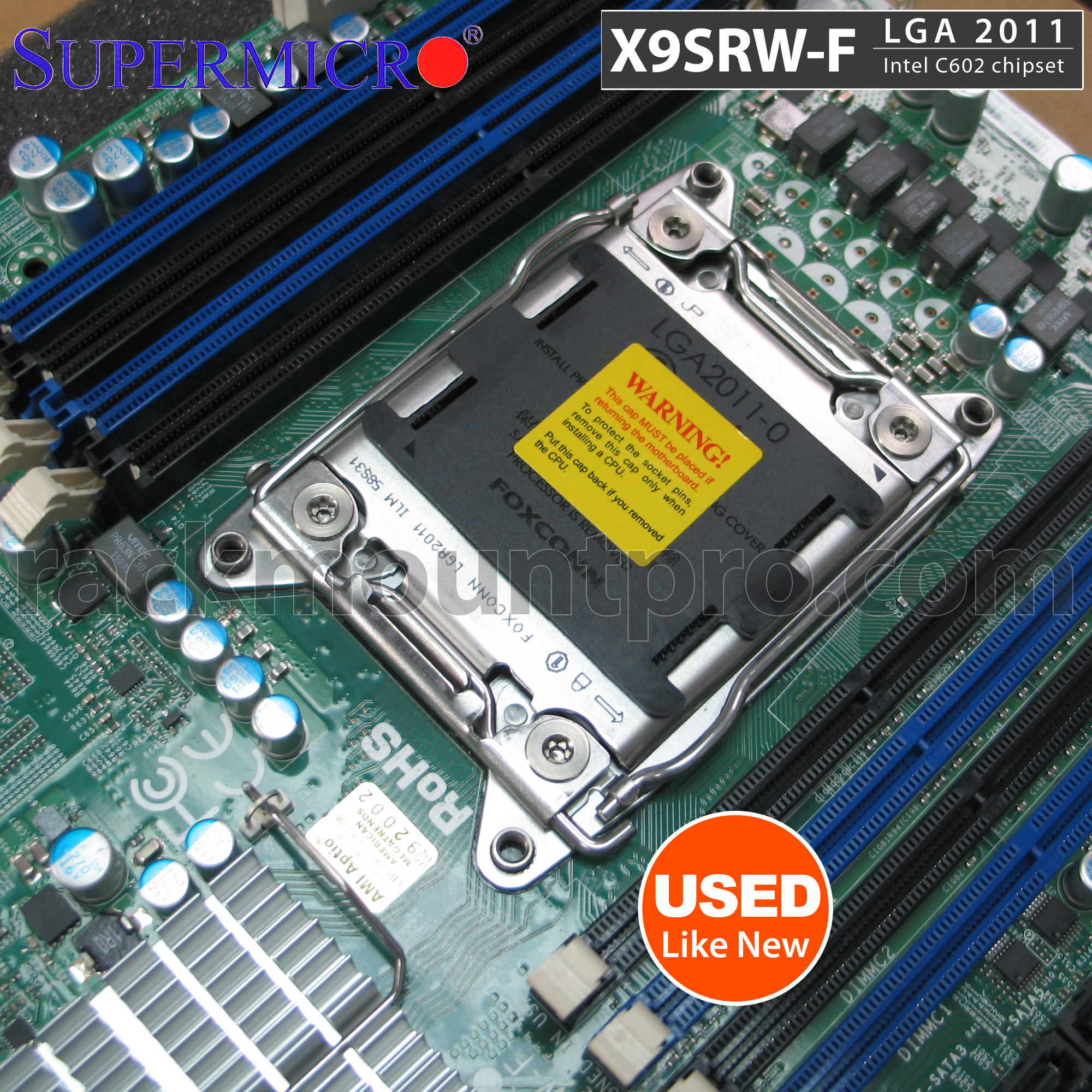

Supermicro X9SRW-F Motherboard USED - Refurbished

  • Single socket R (LGA 2011) supports Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family†
  • Intel® C602 chipset
  • Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
  • Expansion slots: 2 PCI-E 3.0 x16 1 PCI-E 3.0 x8 (in x16)
  • Intel® i350 Dual port GbE LAN
  • SATA3 (6Gb/s) w/ RAID 0, 1, 5, 10 SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 8 USB 2.0 ports (4 rear + 4 via header)
  • DOM power connector support

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Processor
CPU:
Single Socket R (LGA 2011)
Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family (up to 12 cores and up to 135W)

Note:
BIOS version 3.0 or above is required
E5-1600 series CPU does not support LRDIMM type memory
Memory
Memory Capacity:
8x 240-pin DDR3 DIMM slots
Up to 512GB DDR3 ECC LRDIMM
Up to 256GB DDR3 ECC RDIMM
Up to 64GB DDR3 ECC/non-ECC UDIMM

Memory Type:
1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes:
32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM

Memory Voltage:
1.5 V, 1.35 V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Dimensions
8.15" x 13.05"
20.7cm x 33.1cm
Expansion Slots
2 (x16) PCI-E 3.0 slots
1 (x8) PCI-E 3.0 (in x16) slot
Onboard Devices
Chipset:
Intel C602 chipset

SATA:
SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
SATA 3.0 6Gb/s with RAID 0, 1, 5, 10

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450RA0BX

Network Controllers:
Intel® i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video:
Matrox G200eW 16MB DDR2 graphics controllers
Input / Output
SATA:
2x SATA3 (6Gbps) ports
4x SATA2 (3Gbps) ports

SCU:
4x SATA ports (3Gbps) via SCU

LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port

USB:
8x USB 2.0 ports total
(4 rear + 4 via header)

Video:
1x VGA port

Serial Port / Header:
1x serial port

DOM:
1x DOM (Disk on Module) power connector

TPM:
1x TPM Header
BIOS
BIOS Type:
64Mb SPI Flash EEPROM with AMI BIOS

BIOS Features:
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
