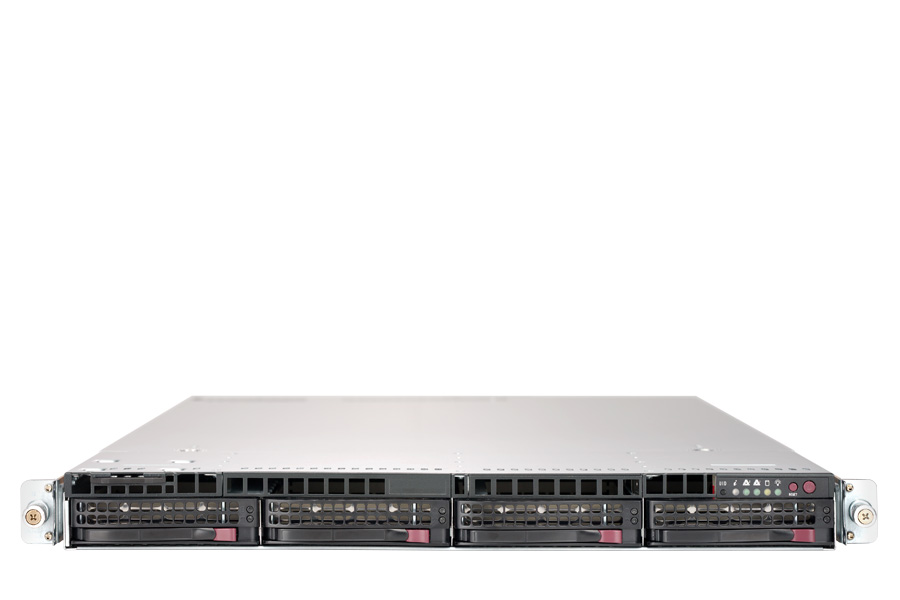

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Supports CPU TDP up to 280W Cores: Up to 64 Cores Chipset: System on Chip (SoC) Note: Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
|---|---|
| Memory | Memory Capacity:
32 DIMM slots Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus Memory Type: DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs DIMM Sizes: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Chassis | 1U Rackmount Chassis
|
| Dimensions | Height:
1.7" (43mm) Width: 17.2" (437mm) Depth: 29" (737mm) |
| Drive Bays | Hot-swap:
4 Hot-swap 3.5" SATA3 drive bays HDD Backplane:
Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD |
| Expansion Slots | 2 PCI-E 4.0 x16 (FH/HL 9.5") slots
1 PCI-E 4.0 x16 (LP) slot 1 PCI-E 4.0 x16 (internal proprietary LP slot) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
| Power Supply | 1000W Redundant Power Supplies with PMBus
Total Output Power: 800W/1000W Dimension (W x H x L): 73.5 x 40 x 203 mm Input: 100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz 200-240Vdc / 7 - 5A (for CCC only) +12V: Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc) 12Vsb: Max: 2.1A / Min: 0A Output Type: 25 Pairs Gold Finger Connector Certification: Titanium Level |
| Onboard Devices | VGA:
ASPEED AST2500 BMC |
| Front Panel | Buttons：
Power On/Off button System Reset button LEDs： Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| Input / Output | SATA:
4 SATA3 (6 Gbps) ports LAN: Dual 10GBase-T LAN ports via Intel® X710-AT2 1 RJ45 Dedicated IPMI LAN port USB: 3 USB 3.0 ports (2 rear + 1 Type A) VGA: 1 VGA port SAS: 4 SAS3 ports support via optional SAS kit NVMe: 4 NVMe support via optional drive tray Others: 1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header |
| Cooling | Fans:
8 heavy-duty PWM fans with optimal fan speed control Air Shroud: 2 Air Shroud |
| BIOS | BIOS Type:
AMI 128Mb SPI Flash EEPROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1 |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Note: Support for operating 35°C is available in certain system configurations. Contact your our sales rep or Technical Support for more details. |
| Detailed Specification | CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator FAN: Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic LED: CPU / System Overheat LED Other Features: Chassis Intrusion Detection Chassis Intrusion Header |
