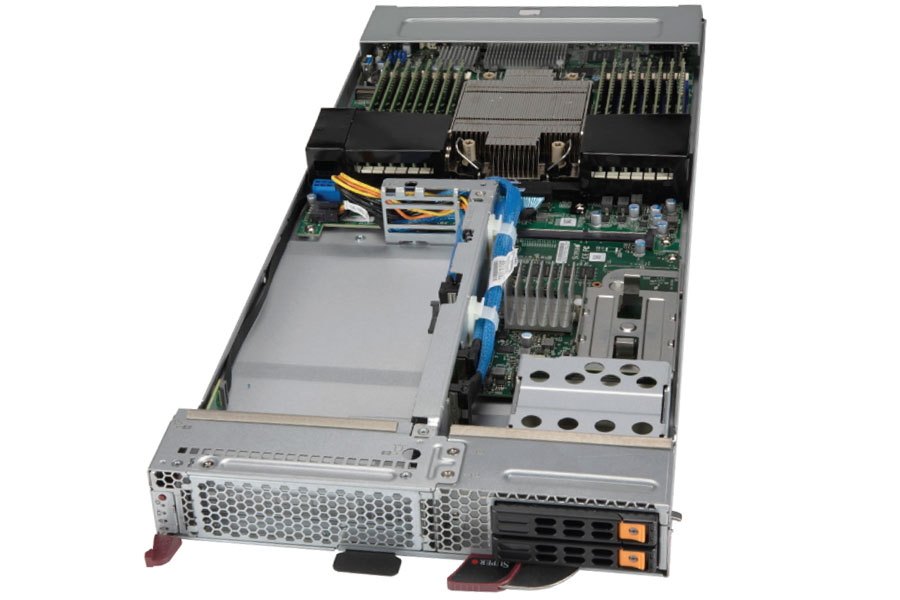

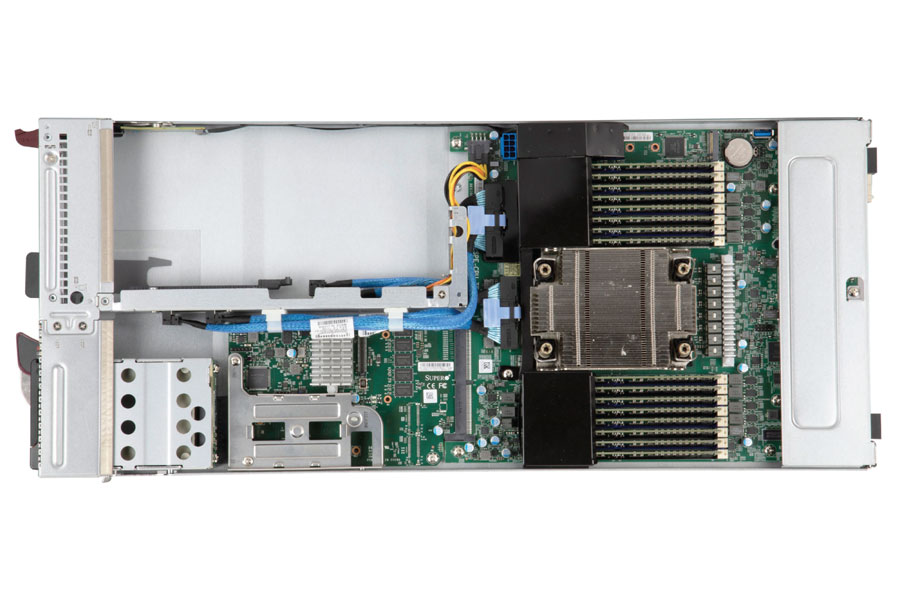

SBI-610P-1C2N

SBI-610P-1C2N

Supermicro 2 Bays Single Sockets Single Blade Server

  • 70 CPUs per 42U Rack
  • Single socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A chipset
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 1 NVMe/SATA3 M.2 (PCIe 3.0 from PCH)
  • Dual 25G onboard Ethernet
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2600
  • Cooling: Passive CPU heatsink CPU1: SNK-P1044V
  • Broadcom 3108 HW RAID
  • Cloud Service, Simulation & Modeling, AI Inferencing, High-performance Computing (HPC)

Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6342 (2.80 GHz 230W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348 (2.60 GHz 235W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8351N (2.40 GHz 225W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358 (2.60 GHz 250W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358P (2.60 GHz 240W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360Y (2.40 GHz 250W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360HL (3.00 GHz 225W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360H (3.00 GHz 225W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8362 (2.80 GHz 265W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368 (2.40 GHz 270W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368Q (2.60 GHz 270W)
MEMORY ▼
No options configured for this category.
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Technical Specifications

Processor
Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable Processors
TDP up to 270W
Memory
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Supports Intel® Optane™ Persistent Memory

Memory Type:
3200/2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM

Note:
Please contact your Supermicro sales rep for more info.
Chassis
Single Blade Server
Dimensions
Height:
9.75"
Width:
1.75"
Depth:
23.5"
Drive Bays
Hot-swap:
2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays

M.2:
1 NVMe/SATA3 M.2 (PCIe 3.0 from PCH)

PCI-E:
2 PCI-E 4.0 x16
Onboard Devices
Chipset:
Intel® C621A chipset

SAS:
Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1 support; 2G Cache

Network Controllers:
1 optional 25GbE Mezzanine card
Dual 25G Ethernet

IPMI:
Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

Graphics:
Aspeed AST2600
Front Panel
Buttons:
Power On/Off button
KVM button

LEDs:
Power LED
UID / KVM LED
Network Activity LED
Fault LED

Connector:
SUV (Serial/USB/Video) & KVM Connector
Input / Output
TPM:
1 TPM Header
Cooling
Heatsink:
Passive CPU heatsink CPU1: SNK-P1044V
BIOS
BIOS Type:
256Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
